Cisco

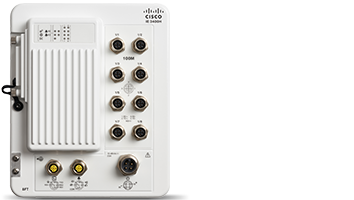

Cisco IE-3400H-8FT-A | Catalyst IE3400 Heavy Duty 8-Port M12 Switch, IP67, Network Advantage

SKU:IE-3400H-8FT-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Heavy Duty IE-3400H-8FT-A is an IP67-rated industrial Ethernet switch built for harsh industrial IoT edge deployments. It can be wall mounted close to the work area without a housing cabinet, making it well suited to environments with heavy exposure to dust and water, such as industrial automation and SCADA networks.

This model provides 8 Fast Ethernet M12 D-coded ports with line-rate forwarding on all ports for all packet sizes. It is a non-PoE switch with a single DC power input via a mini-change connector, accepting 9.6 to 60 VDC. It carries 4 GB of DRAM and 1.5 GB of user-accessible flash, with an optional SD card slot, and operates from -40 C to +75 C with 200 LFM airflow.

It runs Cisco IOS XE with the Network Advantage feature set as the default perpetual licence, which adds Layer 3 routing and the capabilities needed for Catalyst Center Advantage. Cisco Catalyst Center licences are optional add-ons. Optional accessories include the SD-IE-16GB SD card, the CAB-CONSOLE-M12= console cable and the PWR-IE160W-67-DC= IP67 power supply.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP66/IP67 heavy duty design protecting against dust and submersion in water
- Hardened for vibration, shock, surge, electrical noise and temperatures from -40 C to 75 C
- Cisco IOS XE with Secure Boot, image signing and Cisco Trust Anchor module
- MACsec-256 encryption, Cisco TrustSec with SGT/SGACL segmentation and Flexible NetFlow
- Industrial protocols including EtherNet/IP (CIP), PROFINET, IEEE 1588v2 PTP and Modbus TCP/IP
- Redundancy options including REP, MRP, PRP, HSR-SAN, DLR and HSR-PRP Dual Redbox
- Layer 3 routing with OSPF, BGP, IS-IS, RIP, EIGRP, PBR, VRRP, HSRP, VRF-lite and PIM multicast
- Model-driven programmability via NETCONF, RESTCONF and YANG, plus IOx container edge compute

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Product ID: IE-3400H-8FT-A
- Ports: 8 x 10/100 Fast Ethernet M12 D-coded
- Gigabit Ethernet X-coded ports: 0
- PoE: Not supported
- Default feature set: Cisco IOS XE Network Advantage
- Ingress protection: IP66/IP67, UL 50E Type 4X
- Mounting: Wall mount, no housing cabinet required
- Forwarding rate: Line rate on all ports for all packet sizes
- Memory: 4 GB DRAM, 1.5 GB user-accessible flash
- Removable storage: Optional SD card slot, 4 GB or 16 GB
- Console port: 1 x M12 A-coded 5-pin
- Alarms: 1 alarm output relay, 1 alarm input
- Power input: Mini-change connector, single power source
- Input voltage: 9.6 to 60 VDC
- Power consumption: 28.8 W at 9.6 V, 30.6 W at 60 V
- Operating temperature: -40 C to +75 C with 200 LFM airflow
- Storage temperature: -40 C to +85 C
- Relative humidity: 5% to 95% non-condensing
- Altitude: Up to 4,200 m
- Dimensions (H x W x D): 24.33 x 20.07 x 8.00 cm
- Weight (including mounting bracket): 3.83 kg
- MTBF: 566,908 hours
- VLANs: 256
- Unicast MAC addresses: 16000
- Jumbo frames: 8996 bytes

FAQs

Q: Does this switch need an additional licence for Layer 3 features?
A: No. The Network Advantage feature set is the default perpetual licence on this SKU, so the Layer 3 routing features are available without an upgrade. Cisco Catalyst Center licences are optional and purchased separately.

Q: Does it support Power over Ethernet?
A: No. This is a non-PoE model. Connected devices need their own power. The switch itself runs from a single 9.6 to 60 VDC input via a mini-change connector.

Q: What power supply can be used with it?
A: It accepts 9.6 to 60 VDC directly. The optional PWR-IE160W-67-DC= IP67-rated DC-DC power supply (18-60 V input, 54 V output, 160 W maximum) is available as a power supply option.

Q: How does it differ from the Essentials version of this model?
A: The -A suffix indicates the Network Advantage feature set, which adds Layer 3 routing and is required for Catalyst Center Advantage. Essentials models can be upgraded to Advantage with the IE3400H-NW-A= licence.

Q: Can it be installed without an enclosure?
A: Yes. With IP66/IP67 and UL 50E Type 4X ratings it can be wall mounted without a housing cabinet, close to the work area, in environments with heavy dust and water exposure.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
