Cisco

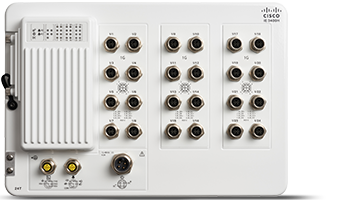

Cisco IE-3400H-24T-E | Catalyst IE3400H 24x GE M12 IP67 Switch, Network Essentials

SKU:IE-3400H-24T-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Heavy Duty is a wall-mountable, IP67-rated industrial Ethernet switch running Cisco IOS XE. It is built for harsh factory floors, transportation and outdoor industrial IoT edge deployments where dust and water exposure rule out a housing cabinet, so it can be mounted right next to the equipment it serves.

This model provides 24 Gigabit Ethernet M12 X-coded ports with no PoE and no separate uplink ports. It is rated IP66/IP67 and UL 50E Type 4X, operates from -40 to +75 degrees C with 200 LFM airflow, and runs from a 9.6 to 60 VDC input through a mini-change connector. Forwarding is line rate on all ports for all packet sizes, with 4 GB DRAM, 1.5 GB of user flash and an optional SD card slot. It also includes one alarm output relay, one alarm input and one console port.

This SKU ships with the Network Essentials feature set, which can be upgraded to Network Advantage. Optional accessories include the PWR-IE160W-67-DC= IP67 DC-DC power supply, an SD-IE-16GB SD card and the CAB-CONSOLE-M12= console cable. It is manageable with Cisco Catalyst Center and supports Cyber Vision.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP66/IP67 protection against dust and submersion in water
- Hardened for vibration, shock, surge, electrical noise and temperatures from -40 to 75 C
- Cisco IOS XE with Secure Boot, image signing and Trust Anchor module
- Cisco TrustSec segmentation, Flexible NetFlow and MACsec encryption
- Supports EtherNet/IP (CIP), Modbus TCP/IP and GOOSE messaging for SCADA protocol classification
- PTP IEEE 1588v2 with sub-microsecond clock synchronisation
- NETCONF, RESTCONF and YANG model-driven programmability
- IOx edge compute with Cisco Cyber Vision support
- Swap Drive zero-configuration replacement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100/1000 Gigabit Ethernet M12 X-coded
- Fast Ethernet (D-code) ports: none
- Uplink ports: none (fixed 24-port configuration)
- PoE: none, non-PoE switch ports
- Feature set: Network Essentials (upgradeable to Network Advantage)
- Ingress protection: IEC 60529 IP66/IP67, UL 50E Type 4X
- Input voltage: 9.6 to 60 VDC via mini-change connector
- Power consumption: 49.0 W at 9.6 V, 49.8 W at 60 V
- Operating temperature: -40 to +75 C with 200 LFM airflow
- Storage temperature: -40 to +85 C
- Relative humidity: 5% to 95% non-condensing
- Altitude: up to 4,200 m
- DRAM: 4 GB
- User flash: 1.5 GB, optional SD card (4 GB or 16 GB)
- Forwarding rate: line rate on all ports for all packet sizes
- VLANs: 256
- Unicast MAC addresses: 16000
- Switch queues: 8
- Jumbo frames: 8996 bytes
- Alarm I/O: 1 alarm output relay, 1 alarm input
- Console ports: 1 (M12 A-coded 5-pin)
- Mounting: wall mount
- Dimensions (H x W x D): 24.33 x 35.31 x 8.00 cm
- Weight: 6.30 kg including mounting bracket
- MTBF: 439,475 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the perpetual Network Essentials licence, the default IOS XE feature set. It can be upgraded to Network Advantage with IE3400H-NW-A=.

Q: Does this switch provide PoE?
A: No. The 24 M12 ports are non-PoE data ports. Power is supplied to the switch itself through a 9.6 to 60 VDC mini-change input.

Q: How do I power it?
A: It takes a single DC input of 9.6 to 60 VDC through the mini-change connector. The optional PWR-IE160W-67-DC= is an IP67-rated DC-DC power supply that suits this switch.

Q: What connectors and cabling does it use?
A: Data ports use M12 X-coded 8-pin connectors for Gigabit copper. Alarm I/O and the console port use M12 A-coded 5-pin connectors, and the CAB-CONSOLE-M12= cable converts the console port to DB9F.

Q: Can it be managed with Catalyst Center?
A: Yes. It can be managed with Cisco Catalyst Center or the built-in WebUI, and it supports Cyber Vision for industrial network visibility.

Q: Does it have fibre or SFP uplink ports?
A: No. This is a fixed configuration with 24 Gigabit M12 X-coded copper ports and no separate uplink ports.
