Cisco

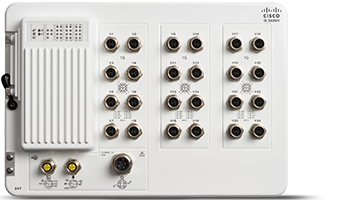

Cisco IE-3400H-24T-A | Catalyst IE3400 Heavy Duty 24-Port M12 Switch, Network Advantage

SKU:IE-3400H-24T-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Heavy Duty is an IP67-rated industrial Ethernet switch built for harsh industrial and IoT edge deployments with heavy dust and water exposure. It mounts directly on a wall close to the work area without an enclosure, making it a fit for industrial automation, SCADA, rail, transportation and other OT networks that need segmentation, security and visibility.

This model provides 24 Gigabit Ethernet M12 X-coded ports with line-rate forwarding on every port for all packet sizes. It runs Cisco IOS XE with the Network Advantage feature set, the top software tier, which supports advanced routing such as OSPF, BGP, IS-IS and EIGRP. It has no PoE and takes a single DC input of 9.6 to 60 VDC through a Mini-Change connector. Operating temperature runs from -40 to +75 C with 200 LFM airflow, and the unit carries IP66/IP67 and UL 50E Type 4X protection.

Data cabling uses M12 X-coded 8-pin connectors, while the console and alarm connections use M12 A-coded 5-pin. Compatible accessories include the PWR-IE160W-67-DC= IP67 power supply, the SD-IE-16GB SD card and the CAB-CONSOLE-M12= console cable.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP66/IP67 protection against dust and submersion in water
- Hardened for vibration, shock, surge, electrical noise and extreme temperatures
- Secure Boot, image signing and Cisco Trust Anchor module on Cisco IOS XE
- MACsec-256 encryption, SGT/SGACL and Cisco TrustSec segmentation
- Industrial protocols including EtherNet/IP CIP, PROFINET, PTP IEEE 1588v2 and Modbus TCP/IP
- Ring redundancy with REP, PROFINET MRP, DLR, HSR and PRP
- Edge compute with IOx, Cisco Cyber Vision and Secure Equipment Access
- Managed through WebUI, Cisco Catalyst Center, NETCONF, RESTCONF and YANG
- Swap Drive zero-configuration replacement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100/1000 Gigabit Ethernet M12 X-coded
- Uplinks: none
- PoE: none
- Feature set: Network Advantage (perpetual)
- Forwarding rate: line rate on all ports for all packet sizes
- Queues: 8
- Unicast MAC addresses: 16000
- VLANs: 256
- IGMP multicast groups: 1000
- IPv4 indirect routes: 3000
- IPv6 indirect routes: 512
- Spanning Tree instances: 128
- Access Control Entries (PACLs): 3024
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- Removable storage: optional SD card, 4 GB or 16 GB
- Jumbo frames: 8996 bytes
- Alarm: 1 output relay and 1 input
- Console port: 1 x M12 A-coded 5-pin
- Power input: single Mini-Change connector, 9.6 to 60 VDC
- Power consumption: 49.0 W at 9.6 V, 49.8 W at 60 V
- Dimensions (H x W x D): 24.33 x 35.31 x 8.00 cm
- Weight: 6.30 kg including mounting bracket
- Mounting: wall mount
- Operating temperature: -40 to +75 C with 200 LFM airflow
- Storage temperature: -40 to +85 C
- Humidity: 5% to 95% non-condensing
- Altitude: up to 4,200 m
- Protection: IP66/IP67, UL 50E Type 4X
- MTBF: 439,475 hours

FAQs

Q: Does this switch need a separate software licence?
A: No. It ships with the Network Advantage feature set, the top IOS XE tier, so there is nothing further to upgrade. Catalyst Center licences are optional add-ons if you manage it with Catalyst Center.

Q: Does it support PoE?
A: No. This model has no PoE. Powered devices need their own power source, and the switch itself runs from 9.6 to 60 VDC.

Q: How is the switch powered?
A: Through a single Mini-Change DC input accepting 9.6 to 60 VDC. The optional PWR-IE160W-67-DC= IP67 power supply takes an 18 to 60 V input.

Q: What connectors does it use?
A: The 24 Gigabit data ports use M12 X-coded 8-pin connectors. The console and alarm connections use M12 A-coded 5-pin.

Q: Can it be mounted without a cabinet?
A: Yes. The IP67 rating allows wall mounting in dusty or wet environments without an enclosure.
