Cisco

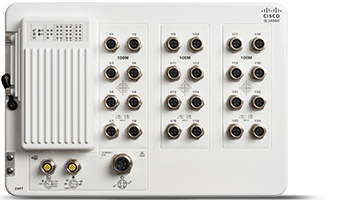

Cisco IE-3400H-24FT-E | Catalyst IE3400H 24-Port M12 Industrial Switch, Network Essentials

SKU:IE-3400H-24FT-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Heavy Duty is an IP67-rated, wall-mount industrial Ethernet switch built for factory floors, machines and robots, rail and transport, and utility and substation sites. It is designed to be mounted close to the work without a housing cabinet, even where dust and water exposure are heavy.

This model provides 24 x 10/100 Fast Ethernet M12 D-coded ports with line-rate forwarding on all ports for all packet sizes. It has no PoE output and runs from a single 9.6 to 60 VDC mini-change power input, drawing about 44.2 W at 9.6 V and 45.0 W at 60 V. Memory is 4 GB DRAM with 1.5 GB of user-accessible flash and an optional SD card slot. It carries IP66/IP67 and UL 50E Type 4X ratings and operates from -40°C to +75°C with 200 LFM airflow.

The switch runs Cisco IOS XE with the Network Essentials feature set, which covers Layer 2 switching plus static and inter-VLAN routing. Upgrade to Network Advantage is available through IE3400H-NW-A= for dynamic routing and additional security features. Related accessories include the SD-IE-16GB SD card, CAB-CONSOLE-M12= console cable and the PWR-IE160W-67-DC= IP67 DC-DC power supply.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP66/IP67-rated heavy-duty design hardened for vibration, shock, surge, electrical noise and extreme temperatures
- Cisco IOS XE with Secure Boot, image signing, Cisco Trust Anchor module and SUDI support
- Security features include MACsec-128, 802.1x, DHCP snooping, dynamic ARP inspection, IP source guard and Flexible NetFlow
- Industrial protocols including CIP Ethernet/IP, PROFINET, IEEE 1588 PTP v2 and SCADA protocol classification (GOOSE, Modbus TCP/IP)
- Ring redundancy with REP, PROFINET MRP, PRP, HSR-SAN, DLR and HSR-PRP Dual Redbox
- Edge compute with IOx, Cisco Cyber Vision and Secure Equipment Access
- Managed via WebUI, Cisco Catalyst Center, NETCONF, RESTCONF and YANG
- Swap Drive zero-configuration replacement for fast recovery

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100 Fast Ethernet M12 D-coded
- PoE: None
- Forwarding rate: Line rate on all ports for all packet sizes
- Feature set: Network Essentials (upgradeable to Network Advantage)
- Queues: 8
- Unicast MAC addresses: 16000
- VLANs: 256
- Spanning Tree Protocol instances: 128
- IGMP multicast groups: 1000
- Access control entries (PACLs): 3024
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- Removable storage: Optional SD card, 4 GB or 16 GB
- Jumbo frames: 8996 bytes
- Alarm: 1 output relay and 1 input
- Console port: 1 x M12 A-coded 5-pin
- Power input: Mini-change connector, 9.6 to 60 VDC, single power source
- Power consumption: 44.2 W at 9.6 V, 45.0 W at 60 V
- Dimensions (H x W x D): 24.33 x 35.31 x 8.00 cm
- Weight: 6.30 kg including mounting bracket
- Mounting: Wall mount
- Ingress protection: IP66/IP67, UL 50E Type 4X
- Operating temperature: -40°C to +75°C with 200 LFM airflow
- Storage temperature: -40°C to +85°C
- Relative humidity: 5% to 95% non-condensing
- MTBF: 439,475 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the Network Essentials perpetual licence, covering Layer 2 switching plus static and inter-VLAN routing. It can be upgraded to Network Advantage with IE3400H-NW-A=.

Q: Does this model provide PoE?
A: No. The FT models have no PoE output, so connected devices need their own power.

Q: What power input does it need?
A: It runs from a single 9.6 to 60 VDC input via a mini-change connector. Power draw is about 44.2 W at 9.6 V and 45.0 W at 60 V. The PWR-IE160W-67-DC= IP67 DC-DC power supply is a matching option.

Q: Which accessories and connectors does it use?
A: Data ports use M12 D-coded 4-pin connectors, while the alarm and console connections use M12 A-coded 5-pin. Related parts include the SD-IE-16GB SD card and the CAB-CONSOLE-M12= console cable.

Q: Can it be managed from Cisco Catalyst Center?
A: Yes. It can be managed with Cisco Catalyst Center, and Network Advantage is required to use Catalyst Center Advantage, including acting as an SD-Access extended node.
