Cisco

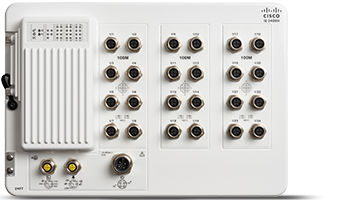

Cisco IE-3400H-24FT-A | Catalyst IE3400H 24-Port M12 Fast Ethernet, Network Advantage

SKU:IE-3400H-24FT-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Heavy Duty is an IP67-rated industrial Ethernet switch built for harsh environments with heavy dust and water exposure. It mounts directly on the wall close to machinery with no housing cabinet, making it suited to industrial automation (EtherNet/IP and PROFINET), SCADA and substation networks, and OT networks that need segmentation and security at the IoT edge.

This model provides 24 Fast Ethernet (10/100) M12 D-coded copper ports with line-rate forwarding on every port for all packet sizes. It has no PoE and no uplink ports. It runs Cisco IOS XE with the perpetual Network Advantage feature set, which adds advanced IP routing, MACsec-256 and TrustSec segmentation. It is powered from a single DC input of 9.6 to 60 VDC through a mini-change connector, draws about 45 W, and operates from -40 to +75 C with 200 LFM airflow.

It is managed through the WebUI or Cisco Catalyst Center, and Catalyst Center Advantage requires the Network Advantage licence on the switch. The optional PWR-IE160W-67-DC= IP67 power supply and SD-IE-16GB SD card are compatible accessories.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Secure Boot, image signing and Cisco Trust Anchor module on Cisco IOS XE
- IP66/IP67 protection against dust and water submersion
- Hardened for vibration, shock, surge, electrical noise and temperatures from -40 to 75 C
- EtherNet/IP (CIP), PROFINET and SCADA protocol classification including GOOSE and Modbus TCP/IP
- MACsec-256, SGT/SGACL and Cisco TrustSec segmentation with Network Advantage
- Ring redundancy with REP, PROFINET MRP, HSR-SAN, DLR and PRP
- IEEE 1588v2 PTP for sub-microsecond clock synchronisation
- Advanced IP routing including OSPF, BGP, IS-IS, EIGRP, VRRP and VRF-lite
- Edge compute with IOx, Cisco Cyber Vision and model-driven programmability via NETCONF, RESTCONF and YANG

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 10/100 Fast Ethernet M12 D-coded
- Gigabit Ethernet (X-code) ports: 0
- PoE: None
- Software: Cisco IOS XE, Network Advantage feature set
- Forwarding rate: Line rate on all ports for all packet sizes
- Queues: 8
- Unicast MAC addresses: 16000
- VLANs: 256
- IGMP multicast groups: 1000
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- Jumbo frames: 8996 bytes
- Alarm: 1 alarm input, 1 alarm output relay
- Console port: 1 x M12 A-coded 5-pin
- Power input: Mini-change connector, 9.6 to 60 VDC
- Power consumption: 44.2 W at 9.6 V, 45.0 W at 60 V
- Dimensions (H x W x D): 24.33 x 35.31 x 8.00 cm
- Weight: 6.30 kg including mounting bracket
- Mounting: Wall mount
- Operating temperature: -40 to +75 C with 200 LFM airflow
- Storage temperature: -40 to +85 C
- Ingress protection: IP66/IP67, UL 50E Type 4X
- MTBF: 439,475 hours

FAQs

Q: Does this switch need a licence?
A: It ships with the perpetual Cisco IOS XE Network Advantage licence, the highest tier for this model, so no further switch upgrade is required. Catalyst Center licences are separate optional add-ons.

Q: Does this model support PoE?
A: No. The 24 M12 ports are data only, so powered devices need their own power source.

Q: How is the switch powered?
A: It uses a single DC input of 9.6 to 60 VDC via a mini-change connector. The optional PWR-IE160W-67-DC= IP67 DC-DC power supply is a compatible option.

Q: What connectors do the ports use?
A: The 24 Fast Ethernet data ports use M12 D-coded 4-pin connectors. The alarm and console connectors are M12 A-coded 5-pin.

Q: Can it be managed with Cisco Catalyst Center?
A: Yes. It is managed through the WebUI or Cisco Catalyst Center. Network Advantage is mandatory on the switch for Catalyst Center Advantage.

Q: How does it differ from the other IE3400 Heavy Duty models?
A: This SKU has 24 Fast Ethernet D-coded M12 ports with the Network Advantage feature set and no Gigabit X-coded ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
