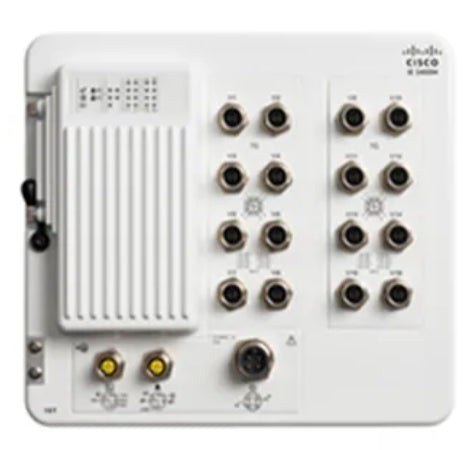

Cisco IE-3400H-16T-E | Catalyst IE3400 Heavy Duty 16-Port M12 Switch, Network Essentials

SKU:IE-3400H-16T-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Heavy Duty IP67 switch is a managed Layer 2 industrial Ethernet switch built for factory automation, rail and transportation, and outdoor or mobile installations where dust and water exposure rule out a standard enclosure. It can be wall mounted close to the work area without a housing cabinet.

This model provides 16 Gigabit Ethernet M12 X-coded ports with line-rate forwarding on all ports for all packet sizes. It carries IP66/IP67 and UL 50E Type 4X ratings and operates from -40 to +75 C with 200 LFM airflow. Power is a single DC input from 9.6 to 60 VDC through a mini-change connector, drawing around 42 W. The switch has no PoE of its own, and PoE is available only through the optional PWR-IE160W-67-DC= IP67 DC-DC power supply. It runs Cisco IOS XE with the Network Essentials feature set, which is a perpetual licence, and can be upgraded to Network Advantage using IE3400H-NW-A=.

Optional accessories include the SD-IE-16GB SD card, the CAB-CONSOLE-M12= console cable and Molex mini-change power cordsets. The switch is managed through Cisco Catalyst Center, WebUI, NETCONF, RESTCONF and YANG.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP66/IP67-rated design protects against dust and water submersion and allows wall mounting without a cabinet
- Hardened for vibration, shock, surge, electrical noise and extreme temperatures
- Secure Boot, image signing and Trust Anchor module with SUDI support
- MACsec-128, FIPS 140-2, Flexible NetFlow and Cisco TrustSec support
- Industrial protocols including CIP Ethernet/IP, PROFINET and IEEE 1588 PTP v2
- Redundancy options including REP, PROFINET MRP, PRP, HSR and DLR
- IOx edge compute with native Docker containers and Cisco Cyber Vision support
- Swap Drive zero-configuration replacement for fast recovery

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 16 x 10/100/1000 Gigabit Ethernet M12 X-coded
- Ingress protection: IEC 60529 IP66/IP67, UL 50E Type 4X
- Software: Cisco IOS XE, Network Essentials feature set
- Upgrade path: Network Advantage
- Forwarding rate: Line rate on all ports for all packet sizes
- Operating temperature: -40 to +75 C with 200 LFM airflow
- Storage temperature: -40 to +85 C
- Humidity: 5% to 95% non-condensing
- Altitude: Up to 4,200 m
- Input voltage: 9.6 to 60 VDC via mini-change connector
- Power consumption: 41.6 W at 9.6 V, 42.3 W at 60 V
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- Console port: 1 x M12 A-coded 5-pin
- Alarm I/O: 1 alarm output relay, 1 alarm input
- VLANs: 256
- Unicast MAC addresses: 16000
- Queues: 8
- Jumbo frames: 8996 bytes
- Mounting: Wall mount
- Dimensions (H x W x D): 24.33 x 27.69 x 8.00 cm
- Weight: 5.10 kg including mounting bracket
- MTBF: 489,458 hours

FAQs

Q: Which software licence does this switch use?
A: It runs the perpetual Network Essentials IOS XE feature set. It can be upgraded to Network Advantage using licence IE3400H-NW-A=.

Q: Does this switch provide PoE?
A: No. The switch does not supply PoE itself. PoE is available only through the optional PWR-IE160W-67-DC= IP67 DC-DC power supply, which has an 18-60 V input and a 54 V, 160 W output.

Q: What power input does it need?
A: It uses a single DC input through a mini-change connector, with an absolute range of 9.6 to 60 VDC. Power draw is about 41.6 W at 9.6 V and 42.3 W at 60 V.

Q: Which accessories does it work with?
A: Supported accessories include the PWR-IE160W-67-DC= power supply, the SD-IE-16GB SD card and the CAB-CONSOLE-M12= M12/DB9F console cable, as well as Molex mini-change power cordsets.

Q: What connectors do the data ports use?
A: All 16 ports are copper Gigabit Ethernet using M12 X-coded 8-pin connectors.
