Cisco

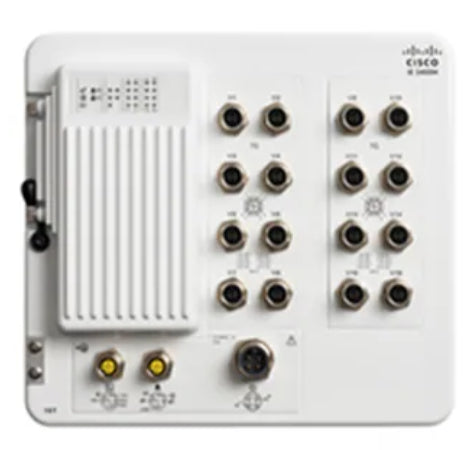

Cisco IE-3400H-16T-A | Catalyst IE3400H 16-Port M12 IP67 Switch, Network Advantage

SKU:IE-3400H-16T-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Heavy Duty is an IP67-rated, wall-mountable industrial Ethernet switch for deployments with heavy exposure to dust, water, vibration and extreme temperatures. It suits industrial automation, transportation, railway and other IoT edge sites, and can be mounted close to machinery without an enclosure.

This model provides 16 10/100/1000 Gigabit Ethernet ports on M12 X-coded connectors, with line-rate forwarding on all ports for all packet sizes. It carries 4 GB DRAM and 1.5 GB of user-accessible flash, with an optional SD card slot. The switch is DC powered only, accepting 9.6 to 60 VDC through a single mini-change input, and does not supply PoE on its ports. It is rated IP66/IP67 and UL 50E Type 4X, with an operating range of -40 to +75 C when 200 LFM airflow is present.

It ships with the Network Advantage perpetual licence on Cisco IOS XE, which adds advanced routing, virtualisation and MACsec-256 security. Network Advantage is the top tier for this series, so no further software upgrade applies. Accessories include the SD-IE-16GB SD card, CAB-CONSOLE-M12= console cable and PWR-IE160W-67-DC= IP67 DC-DC power supply.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP66/IP67 protection against dust and water submersion, mountable without a housing cabinet
- Hardened for vibration, shock, surge, electrical noise and extreme temperatures
- Secure Boot, image signing and Cisco Trust Anchor module
- MACsec-256, SGT/SGACL and Cisco TrustSec segmentation
- Advanced routing including OSPF, BGP, IS-IS, EIGRP, PBR, VRRP, HSRP and VRF-lite
- Industrial protocols including EtherNet/IP CIP, PROFINET and IEEE 1588v2 PTP
- Ring and network redundancy with REP, MRP, PRP, HSR and DLR
- Edge compute with IOx, Cisco Cyber Vision and Secure Equipment Access
- Model-driven programmability with NETCONF, RESTCONF and YANG

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 16 x 10/100/1000 Gigabit Ethernet, M12 X-coded 8-pin
- PoE: none
- Uplinks: none
- Forwarding rate: line rate on all ports for all packet sizes
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- Removable storage: optional SD card, 4 GB or 16 GB supported
- Console port: 1 x M12 A-coded 5-pin
- Alarm: 1 alarm output relay, 1 alarm input
- Unicast MAC addresses: 16000
- VLANs: 256
- IPv4 indirect routes: 3000
- IPv6 indirect routes: 512
- Spanning Tree instances: 128
- Jumbo frames: 8996 bytes
- Software feature set: Cisco IOS XE Network Advantage (perpetual)
- Power input: mini-change, 9.6 to 60 VDC
- Power consumption: 41.6 W at 9.6 V, 42.3 W at 60 V
- Dimensions (H x W x D): 24.33 x 27.69 x 8.00 cm
- Weight: 5.10 kg including mounting bracket
- Mounting: wall mount
- Operating temperature: -40 to +75 C with 200 LFM airflow
- Storage temperature: -40 to +85 C
- Humidity: 5% to 95% non-condensing
- Altitude: up to 4,200 m
- Ingress protection: IP66/IP67, UL 50E Type 4X
- MTBF: 489,458 hours

FAQs

Q: Does this switch need a separate software licence?
A: It ships with the Network Advantage perpetual licence, which is the top IOS XE tier for this series. No further software upgrade applies. Cisco Catalyst Center licences are optional and purchased separately.

Q: Does it provide PoE on the ports?
A: No. The switch has no PoE output on its ports. It is DC powered only, accepting 9.6 to 60 VDC through a single mini-change connector.

Q: What power supply can I use with it?
A: The optional PWR-IE160W-67-DC= IP67-rated DC-DC power supply accepts 18 to 60 V input and delivers 54 V output at up to 160 W. Molex mini-change power cordsets are also supported.

Q: What connectors do the data ports use?
A: The 16 Gigabit data ports use M12 X-coded 8-pin connectors. The console port is a separate M12 A-coded 5-pin connector, used with the CAB-CONSOLE-M12= cable.

Q: How is it managed?
A: It can be managed through the built-in WebUI or Cisco Catalyst Center. It also supports NETCONF, RESTCONF and YANG for programmability.
