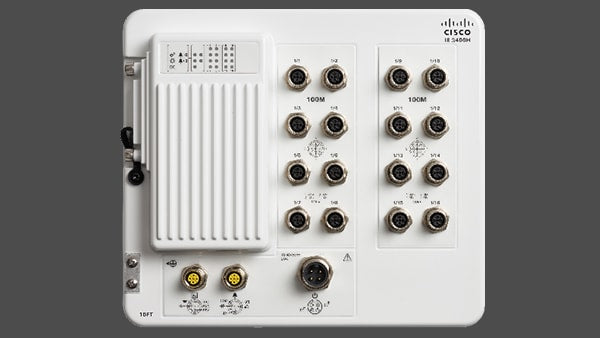

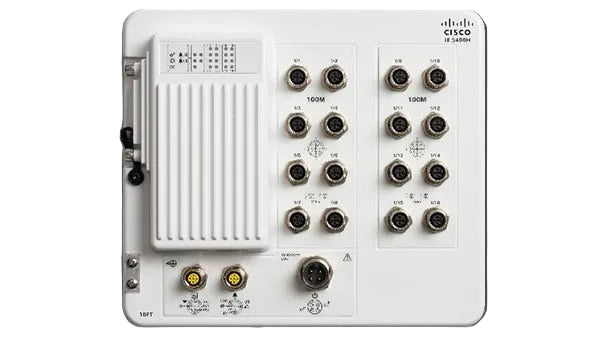

Cisco IE-3400H-16FT-E | Catalyst IE3400H 16-Port 100M M12 IP67 Switch, Network Essentials

SKU:IE-3400H-16FT-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Heavy Duty is an IP66/IP67 rated industrial Layer 2 switch built for harsh, dusty and wet environments. It can be wall-mounted without a protective enclosure, which suits factory automation, railway and transportation, mining and outdoor IoT edge deployments where the switch needs to sit close to the equipment it serves.

This model provides 16 Fast Ethernet (10/100) M12 D-coded ports with line-rate forwarding on all ports for all packet sizes. It has no PoE support and no SFP uplinks. It runs Cisco IOS XE with the Network Essentials feature set, which includes inter-VLAN and static routing, and supports up to 256 VLANs and 16,000 unicast MAC addresses. Power is a single 9.6 to 60 VDC input through a Mini-Change connector, and the unit operates from -40°C to +75°C with 200 LFM airflow. It also provides one alarm output relay, one alarm input and an M12 A-coded console port.

The Network Essentials feature set is perpetual and can be upgraded to Network Advantage (IE3400H-NW-A=) for dynamic routing, VRF-lite and TrustSec. It works with the PWR-IE160W-67-DC= IP67 DC-DC power supply, the CAB-CONSOLE-M12= console cable and an optional SD card for storage.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP66/IP67 protection against dust and water submersion, wall mountable without a housing cabinet
- Hardened for vibration, shock, surge, electrical noise and extreme temperatures
- Cisco IOS XE with Secure Boot, image signing and Cisco Trust Anchor module
- Security features including 802.1x, DHCP snooping, dynamic ARP inspection, IP source guard and MACsec-128
- Industrial protocols including CIP Ethernet/IP, PROFINET, IEEE 1588 PTP v2, Modbus TCP/IP and GOOSE messaging
- Ring and network redundancy with REP, PROFINET MRP, PRP, HSR and DLR
- Model-driven programmability with NETCONF, RESTCONF and YANG
- Edge compute with IOx container support, Cisco Cyber Vision and Secure Equipment Access
- Managed through the WebUI or Cisco Catalyst Center, with Swap Drive zero-configuration replacement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 16 x 10/100 Fast Ethernet M12 D-coded
- Gigabit Ethernet (X-code) ports: 0
- PoE: Not supported
- Software feature set: Cisco IOS XE Network Essentials
- Forwarding rate: Line rate on all ports for all packet sizes
- Queues: 8
- Unicast MAC addresses: 16,000
- IGMP multicast groups: 1,000
- VLANs: 256
- Spanning Tree Protocol instances: 128
- Access Control Entries (PACLs): 3,024
- DRAM: 4 GB
- User-accessible flash: 1.5 GB
- Optional SD card: 4 GB or 16 GB
- Jumbo frames: 8,996 bytes
- Alarm: 1 output relay, 1 input
- Console port: 1 x M12 A-coded 5-pin
- Power input: 9.6 to 60 VDC, Mini-Change connector
- Power consumption: 38.4 W at 9.6 V, 39.0 W at 60 V
- Dimensions (H x W x D): 24.33 x 27.69 x 8.00 cm
- Weight with mounting bracket: 5.10 kg
- Mounting: Wall mount
- Ingress protection: IP66/IP67, UL 50E Type 4X
- Operating temperature: -40°C to +75°C with 200 LFM airflow
- Storage temperature: -40°C to +85°C
- Relative humidity: 5% to 95% non-condensing
- MTBF: 489,458 hours

FAQs

Q: Which licence does this SKU include?
A: It includes the perpetual Network Essentials feature set. It can be upgraded to Network Advantage with the IE3400H-NW-A= licence, which adds dynamic routing such as OSPF, BGP and EIGRP, plus VRF-lite and TrustSec.

Q: Does this switch support PoE?
A: No. This model has no PoE and provides 16 Fast Ethernet M12 data ports only. Connected devices need their own power.

Q: How is the switch powered?
A: It uses a single 9.6 to 60 VDC input through a Mini-Change power connector. Typical consumption is about 38 to 39 W. The PWR-IE160W-67-DC= IP67 DC-DC power supply is available as an option.

Q: What cabling and accessories does it use?
A: Data ports use M12 D-coded 4-pin connections for 100Base-T. The console and alarm ports use M12 A-coded 5-pin connectors, and the CAB-CONSOLE-M12= console cable is supported. An optional SD card (SD-IE-16GB) can be fitted.

Q: Can it be installed without an enclosure?
A: Yes. With its IP66/IP67 rating and wall-mount design, it can be installed directly in dusty or wet industrial areas without a separate housing cabinet.
