Cisco

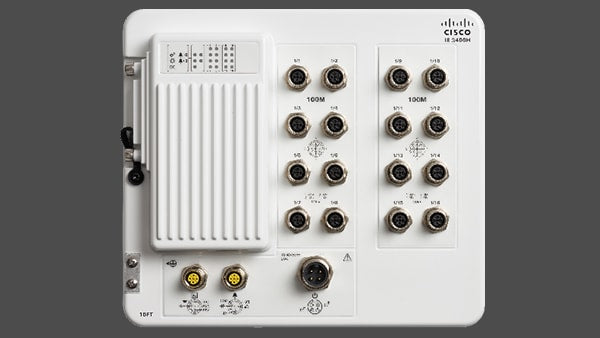

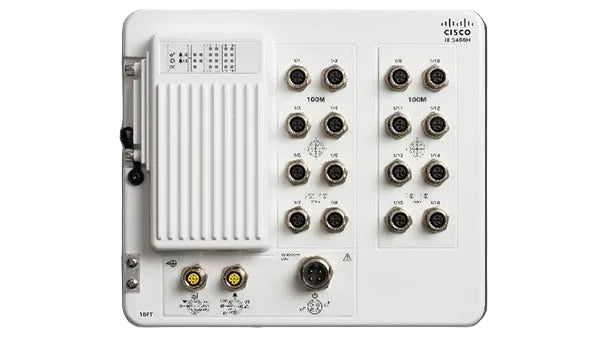

Cisco IE-3400H-16FT-A | Catalyst IE3400H 16-Port M12 Fast Ethernet Switch, Network Advantage

SKU:IE-3400H-16FT-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Heavy Duty is an IP67-rated industrial Ethernet switch built to be wall mounted close to machinery without an enclosure. It suits harsh-environment deployments with heavy dust and water exposure, including industrial automation, SCADA, rail and transport, and outdoor IoT edge networks.

This model provides 16 Fast Ethernet M12 D-coded ports with line-rate forwarding for all packet sizes. It is a non-PoE model powered from a single DC source over a mini-change connector, accepting 9.6 to 60 VDC, with typical consumption of 38.4 W at 9.6V and 39.0 W at 60V. It ships with the Network Advantage feature set on Cisco IOS XE as a perpetual licence, the highest tier, which adds advanced routing such as OSPF, BGP, IS-IS and EIGRP. The unit carries 4 GB DRAM and 1.5 GB of user-accessible flash, with an optional SD card slot for removable storage.

It shares its software image with the Catalyst IE3x00 Rugged Series. Compatible accessories include the PWR-IE160W-67-DC= IP67 DC-DC power supply, the SD-IE-16GB SD card and the CAB-CONSOLE-M12= console cable.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP66/IP67 protection against dust and submersion in water, suited to enclosure-free mounting
- Hardened for vibration, shock, surge, electrical noise and temperatures from -40 C to 75 C
- Secure Boot, image signing and Cisco Trust Anchor module on Cisco IOS XE
- MACsec-256 encryption with SGT/SGACL and Cisco TrustSec segmentation
- Industrial protocols including EtherNet/IP (CIP), PROFINET, IEEE 1588v2 PTP and Modbus TCP/IP
- Ring and network redundancy with REP, PRP, HSR, DLR and MRP
- Advanced routing with OSPF, BGP, IS-IS, EIGRP, PBR, VRRP/HSRP, VRF-lite and PIM
- IOx edge compute with Cisco Cyber Vision and Secure Equipment Access
- WebUI, Cisco Catalyst Center management and NETCONF/RESTCONF/YANG programmability
- Swap Drive zero-configuration replacement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 16 x 10/100 Fast Ethernet M12 D-coded
- Gigabit Ethernet (X-code) ports: 0
- PoE: Non-PoE model
- Feature set: Cisco IOS XE Network Advantage (perpetual)
- Forwarding rate: Line rate on all ports for all packet sizes
- Queues: 8
- Unicast MAC addresses: 16000
- VLANs: 256
- IPv4 indirect routes: 3000
- IPv6 indirect routes: 512
- Spanning Tree instances: 128
- IGMP multicast groups: 1000
- Access Control Entries (PACLs): 3024
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- Removable storage: Optional SD card, 4 GB or 16 GB
- Jumbo frames: 8996 bytes
- Alarms: 1 alarm output relay, 1 alarm input
- Console port: 1 x M12 A-coded 5-pin
- Power input: Single source, mini-change connector
- Input voltage: 9.6 to 60 VDC
- Power consumption: 38.4 W at 9.6V, 39.0 W at 60V
- Dimensions (H x W x D): 24.33 x 27.69 x 8.00 cm
- Weight: 5.10 kg including mounting bracket
- Mounting: Wall mount
- Operating temperature: -40 C to +75 C with 200 LFM airflow
- Storage temperature: -40 C to +85 C
- Ingress protection: IP66/IP67, UL 50E Type 4X
- Altitude: up to 4,200 m
- MTBF: 489,458 hours

FAQs

Q: Does this switch need an extra licence for routing features?
A: No. It ships with the Network Advantage feature set as a perpetual licence, the highest tier, so advanced routing is included and no tier upgrade is available or needed.

Q: Does it provide PoE?
A: No. This is a non-PoE model. It is powered from a single DC source of 9.6 to 60 VDC through a mini-change connector.

Q: Which power supply works with it?
A: The PWR-IE160W-67-DC= IP67 DC-DC power supply is a matching option, with an 18-60V input and a 54V, 160W output.

Q: What connectors are used for data, console and alarm?
A: Data ports use M12 D-coded 4-pin connectors. The console and alarm connections use M12 A-coded 5-pin connectors.

Q: Does it work with Cisco Catalyst Center?
A: Yes. It can be managed from Catalyst Center. Network Advantage on the switch is required for Catalyst Center Advantage, and the Catalyst Center licences are purchased separately.
