Cisco

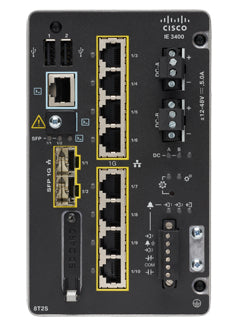

Cisco IE-3400-8T2S-E | Catalyst IE3400 8-Port Gigabit Industrial Switch, 2x 1G SFP, Network

SKU:IE-3400-8T2S-E

$5,016.00 USD
Sale Sold out
Shipping calculated at checkout.

2 in stock

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Rugged Series IE-3400-8T2S-E is a compact, DIN-rail mounted industrial Gigabit Ethernet switch built for harsh environments such as manufacturing floors, energy sites, transport networks, mining and oil and gas. It also suits extended enterprise deployments in outdoor spaces, warehouses and distribution centres, connecting PLCs, wireless access points, HD IP cameras and other industrial endpoints.

This non-PoE model provides 8 x 10/100/1000 RJ45 copper ports and 2 x 100/1000 SFP ports, 10 fixed ports in total. The modular design can be expanded to up to 26 GE ports with IEM-3300 and IEM-3400 expansion modules. It runs Cisco IOS XE with the perpetual Network Essentials feature set, forwards at line rate on all ports and packet sizes, and supports 256 VLANs, 16K unicast MAC addresses and 8 queues. Power comes from a dual redundant DC input (9.6 to 60 VDC) with 36 W consumption, and the fanless, convection-cooled chassis operates from -40 to +75 C with a fan or blower-equipped enclosure.

The switch supports a wide range of Fast Ethernet and Gigabit SFPs, including industrial-rated GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD= and GLC-T-RGD=. The Network Essentials licence can be upgraded to Network Advantage via IE3400-NW-A= to add IP routing protocols.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco IOS XE with secure boot, image signing and Cisco Trust anchor module
- Fanless, convection-cooled industrial design hardened for vibration, shock, surge and electrical noise
- Modular design expandable to 26 GE ports with compatible IEM-3300 and IEM-3400 expansion modules
- Redundancy protocols including REP, MRP, DLR, PRP, HSR-SAN and HSR-PRP Dual Redbox
- Industrial Ethernet protocols including CIP Ethernet/IP, IEEE 1588 PTP v2 and PROFINET
- Security features including 802.1x, MACsec-128, DHCP snooping, dynamic ARP inspection and IP source guard
- Edge compute with IOx container support, Cisco Cyber Vision and Secure Equipment Access
- Easy setup via WebUI, SwapDrive zero-configuration replacement, and automation through YANG, NETCONF and RESTCONF

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 8 x 10/100/1000 RJ45 copper
- Uplinks: 2 x 100/1000 SFP
- Total fixed ports: 10, expandable to up to 26 GE ports with expansion modules
- PoE: Not supported (non-PoE model)
- Software licence: Network Essentials (perpetual)
- Forwarding rate: Line rate for all ports and all packet sizes
- Queues: 8
- Unicast MAC addresses: 16K
- IGMP multicast groups: 1K
- VLANs: 256
- STP instances: 128
- Access control entries: 3K
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- Jumbo frames: 8996 bytes
- Alarms: 2 alarm inputs, 1 alarm output
- Console: 1 RS-232 (RJ-45), 1 USB Mini Type B
- Power input: Dual redundant DC, 9.6 to 60 VDC, 6.3 A
- Power consumption: 36 W (measured at 12V)
- Mounting: DIN rail, fanless convection-cooled
- Operating temperature: -40 to +75 C (minimum 200 LFM fan or blower-equipped enclosure)
- Storage temperature: -40 to +85 C
- Relative humidity: 5% to 95% non-condensing
- Dimensions (H x W x D): 15.2 x 9.1 x 13.5 cm
- Weight: 1.7 kg
- MTBF (Telcordia Issue 3): 549,808 hours

FAQs

Q: Does this switch support PoE?
A: No. The IE-3400-8T2S-E is a non-PoE model, so it has no PoE budget. It is powered from a dual redundant DC input of 9.6 to 60 VDC.

Q: Which licence does it ship with and can it be upgraded?
A: It carries the perpetual Network Essentials licence, indicated by the -E suffix. It can be upgraded to Network Advantage via IE3400-NW-A=, which adds IP routing protocols such as OSPF, BGP, EIGRP and IS-IS.

Q: What power supplies work with it?
A: DIN-rail supplies such as PWR-IE50W-AC=, PWR-IE50W-AC-IEC= and PWR-IE50W-AC-L= suit this non-PoE model. Higher-capacity options include PWR-IE65W-PC-AC/DC=, PWR-IE170W-PC-AC/DC=, PWR-IE240W-PCAC-L= and PWR-IE480W-PCAC-L=.

Q: Which expansion modules and SFPs does it support?
A: It supports IEM-3300 and IEM-3400 expansion modules to reach up to 26 GE ports. Using IEM-3300 modules prevents SGT/SGACL support on the base switch. For optics it accepts industrial-rated SFPs such as GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD= and GLC-T-RGD=.

Q: What temperature range can it operate in?
A: It operates from -40 to +75 C when installed in an enclosure with at least 200 LFM of fan or blower airflow. Non-industrial SFPs require the operating temperature to be derated.
