Cisco

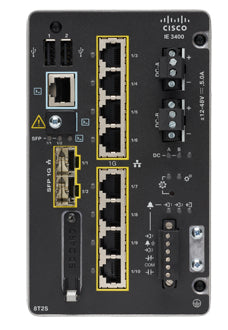

Cisco IE-3400-8T2S-A | Catalyst IE3400 8-Port Gigabit Switch, 2x SFP, Network Advantage

SKU:IE-3400-8T2S-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 Rugged Series IE-3400-8T2S-A is a compact, DIN-rail mounted industrial Gigabit Ethernet switch built for harsh environments such as manufacturing, energy, transportation, mining and outdoor enterprise deployments. It suits sites that need hardened switching to connect PLCs, HD IP cameras and wireless access points, including substations and railway or ITS installations.

This non-PoE model provides 8 x 10/100/1000 RJ45 copper ports and 2 x 100/1000 SFP uplinks, with line-rate forwarding on all ports and packet sizes. It ships with the perpetual Network Advantage licence, which adds OSPF, BGP, IS-IS, EIGRP, PBR, VRRP/HSRP, VRF-lite and MACsec-256 on top of the Network Essentials feature set. Power comes from dual redundant DC inputs (9.6 to 60 VDC) with a draw of 36 W, and the fanless, convection-cooled design is rated for -40C to +75C in a suitably ventilated enclosure.

The base unit can be expanded to 18 or 26 Gigabit Ethernet ports using IEM-3300 and IEM-3400 expansion modules. SGT and SGACL are supported only with IEM-3400 modules. It accepts a broad range of industrial SFPs, including GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD= and GLC-T-RGD=.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco IOS XE with secure boot, image signing and Cisco Trust anchor module
- Network Advantage licence adds OSPF, BGP, IS-IS, EIGRP, PBR, VRRP/HSRP, VRF-lite, MACsec-256 and SGT/SGACL
- Expandable up to 26 Gigabit Ethernet ports using IEM-3300 and IEM-3400 expansion modules
- Industrial redundancy with REP, MRP, DLR, PRP, HSR and dual DC power inputs
- Industrial protocols including CIP Ethernet/IP, PROFINET and IEEE 1588 PTP v2
- IOx edge compute supporting Cisco Cyber Vision and Secure Equipment Access
- Programmability via YANG, NETCONF and RESTCONF, plus a WebUI for simple configuration
- SwapDrive zero-configuration switch replacement and Flexible NetFlow visibility

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total ports: 10
- 10/100/1000 RJ45 copper ports: 8
- 100/1000 SFP ports: 2
- PoE budget: Not applicable (non-PoE model)
- Default software licence: Network Advantage
- Forwarding rate: Line rate for all ports and all packet sizes
- Number of queues: 8
- Unicast MAC addresses: 16K
- Number of VLANs: 256
- IPv4 indirect routes: 3000
- IPv6 indirect routes: 512
- STP instances: 128
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- Jumbo frames: 8996 bytes
- Alarms: 2 alarms in, 1 alarm out
- Console ports: 1 RS-232 (RJ-45), 1 USB Mini Type B
- Input voltage range: Redundant DC 9.6 to 60 VDC
- Input current: 6.3 A
- Power consumption: 36 W (measured at 12 V)
- Dimensions (H x W x D): 15.2 x 9.1 x 13.5 cm
- Weight: 1.7 kg
- Mounting: DIN rail
- Operating temperature: -40C to +75C (200 LFM fan or blower-equipped enclosure)
- Ingress protection: IP30

FAQs

Q: Does this switch need an additional software licence?
A: No. The -A suffix means it ships with the perpetual Network Advantage licence, which includes all Network Essentials features. Cisco Catalyst Center licences are optional and purchased separately.

Q: Does it support PoE?
A: No. This is a non-PoE model, so the PoE expansion modules cannot provide PoE on this switch. It is suited to powering from DC inputs and connecting devices that have their own power.

Q: What power supply does it use?
A: It takes dual redundant DC inputs from 9.6 to 60 VDC and draws 36 W. DIN-rail supplies such as PWR-IE50W-AC=, PWR-IE65W-PC-AC/DC= and PWR-IE170W-PC-AC/DC= are listed options.

Q: Which expansion modules and SFPs does it work with?
A: It supports IEM-3300 and IEM-3400 expansion modules to reach 18 or 26 ports. SGT/SGACL is supported only with IEM-3400 modules. For optics, industrial SFPs such as GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD= and GLC-T-RGD= are supported.

Q: How does this SKU differ from other IE3400 models?
A: IE-3400-8T2S-A is the non-PoE version with 8 Gigabit copper ports, 2 Gigabit SFP uplinks and the Network Advantage licence. Other IE3400 SKUs vary by port count, PoE capability and licence tier.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
