Cisco

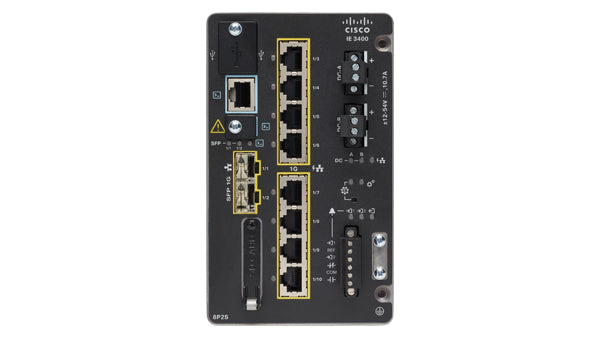

Cisco IE-3400-8P2S-E | Catalyst IE3400 8-Port PoE+ Industrial Switch, Network Essentials

SKU:IE-3400-8P2S-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 is a compact, DIN-rail mounted industrial Ethernet switch built for harsh environments such as manufacturing floors, utility substations, transport networks, mining and oil and gas sites. It also suits extended-enterprise spaces like warehouses, distribution centres and outdoor areas where PoE devices such as IP cameras, IP phones, wireless access points and sensors need power and connectivity.

This model provides 8 Gigabit RJ45 PoE/PoE+ ports and 2 Gigabit SFP uplinks, with line-rate forwarding on all ports. The PoE budget is 240W on the base unit and rises to 480W with a compatible expansion module, and the switch can grow to 18 or 26 Gigabit ports using IEM-3400 and IEM-3300 series modules. It runs Cisco IOS XE and ships with the Network Essentials feature set, which includes inter-VLAN and static routing, with an upgrade path to Network Advantage.

The fanless, convection-cooled chassis operates from -40 to +75 C under the specified airflow and enclosure conditions. It takes dual redundant DC inputs from 9.6 to 60 VDC and is used with industrial DIN-rail power supplies such as the PWR-IE170W-PC series.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco IOS XE with secure boot, image signing and a Cisco Trust anchor module
- Modular design expandable to 26 Gigabit ports with IEM expansion modules
- Fanless, convection-cooled chassis with no moving parts, hardened for vibration, shock and surge
- Resiliency protocols including REP, MRP, DLR, PRP and HSR
- Industrial protocols including CIP EtherNet/IP, PROFINET and IEEE 1588 PTP v2
- Security features including 802.1x, DHCP snooping, dynamic ARP inspection, IP source guard and MACsec-128
- SwapDrive zero-configuration switch replacement and WebUI for simple setup
- Edge compute through IOx, with support for Cisco Cyber Vision and Secure Equipment Access

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Product ID: IE-3400-8P2S-E
- Total base ports: 10
- Copper ports: 8 x 10/100/1000 RJ45 PoE/PoE+
- Uplink ports: 2 x 100/1000 SFP
- Expansion: up to 18 or 26 Gigabit ports with expansion modules
- PoE budget: 240W base, 480W with expansion module
- Forwarding rate: line rate on all ports and all packet sizes
- Default software licence: Network Essentials
- DRAM: 4 GB
- User-accessible flash: 1.5 GB
- Console ports: 1 RS-232 (RJ-45), 1 USB Mini Type B
- Alarms: 2 in, 1 out
- Power inputs: dual redundant DC, 9.6 to 60 VDC
- PoE voltage: 48 VDC for PoE, 54 VDC for PoE+
- Power consumption: 47W (excluding PoE load)
- Unicast MAC addresses: 16K
- VLANs: 256
- Number of queues: 8
- Jumbo frames: 8996 bytes
- Dimensions (H x W x D): 15.2 x 11.2 x 13.5 cm
- Weight: 2.3 kg
- Mounting: DIN rail
- Operating temperature: -40 to +75 C (200 LFM airflow enclosure)
- Storage temperature: -40 to +85 C
- Relative humidity: 5% to 95% non-condensing

FAQs

Q: Which software licence does this switch use?
A: It ships with the Network Essentials licence, which covers Layer 2 switching plus inter-VLAN and static routing. Upgrading to Network Advantage with the IE3400-NW-A= licence adds OSPF, BGP, EIGRP, IS-IS, VRF-lite, PIM multicast, MACsec-256 and SGT/SGACL.

Q: What power supply does it need for PoE?
A: It runs from dual redundant DC inputs of 9.6 to 60 VDC, and PoE requires 48 VDC while PoE+ requires 54 VDC. Compatible DIN-rail supplies with PoE support include the PWR-IE65W-PC, PWR-IE170W-PC, PWR-IE240W-PCAC-L and PWR-IE480W-PCAC-L. The 50W PWR-IE50W supplies do not support PoE.

Q: How can I add more ports?
A: The switch accepts IEM-3400 and IEM-3300 series expansion modules, including the IEM-3400-8T, 8S and 8P and the IEM-3300-8T, 8S, 16T, 6T2S, 14T2S, 8P, 16P and 4MU. PoE expansion modules require a PoE base switch such as this one.

Q: Which SFP modules does it support?
A: The two SFP uplink ports accept industrial and standard Fast Ethernet and Gigabit SFPs such as GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-ZX-SM-RGD, GLC-SX-MM, GLC-LH-SM, GLC-TE and the GLC-BX series, plus CWDM and DWDM SFPs. Non-industrial SFPs require the operating temperature to be derated.

Q: How does it differ from the Network Advantage version?
A: The hardware is the same. The -E suffix means Network Essentials is the default licence, while the -A version ships with Network Advantage for advanced routing and security features.
