Cisco

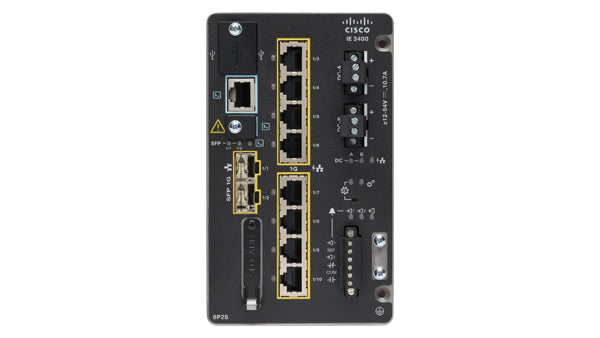

Cisco IE-3400-8P2S-A | Catalyst IE3400 8-Port PoE+ Industrial Switch, 240W, Network Advantage

SKU:IE-3400-8P2S-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3400 is a compact, DIN-rail mounted, modular industrial Gigabit Ethernet switch built for harsh environments such as manufacturing, energy, transportation, mining, oil and gas, substations, rail and smart cities. It also suits extended enterprise deployments such as outdoor spaces, warehouses and distribution centres, and powers PoE devices like IP cameras, phones, wireless access points and sensors.

This IE-3400-8P2S-A model provides 8 x 10/100/1000 RJ45 PoE/PoE+ ports and 2 x 100/1000 SFP uplink ports, with a 240W PoE budget that rises to 480W with a PoE expansion module. It ships with the Network Advantage licence, which includes all Network Essentials features and adds IP routing protocols, virtualisation, MACsec-256, SGT/SGACL and IP multicast routing. The base switch can grow from 10 to up to 26 Gigabit ports with expansion modules. It is fanless, with dual redundant DC power input and an operating range of -40 C to +75 C with a suitable enclosure.

It works with IEM-3400 and IEM-3300 expansion modules, and its SFP slots accept industrial, extended and commercial temperature SFPs such as GLC-SX-MM-RGD=, GLC-LX-SM-RGD= and GLC-ZX-SM-RGD=. Management is through Cisco Catalyst Center, the WebUI or SNMP.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco IOS XE with secure boot, image signing and Cisco Trust anchor module
- Fanless, convection-cooled industrial design hardened for vibration, shock, surge and electrical noise
- Resiliency protocols including REP, MRP, DLR, PRP, HSR and dual-input power
- Network Advantage routing and security features including OSPF, BGP, EIGRP, VRF-lite, MACsec-256 and TrustSec
- Flexible NetFlow for traffic and threat visibility
- Edge compute with IOx (native Docker) and Cisco Cyber Vision support
- Industrial Ethernet protocols including CIP EtherNet/IP, IEEE 1588 PTP v2 and PROFINET
- SwapDrive zero-configuration replacement with YANG, NETCONF and RESTCONF automation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total ports: 10
- RJ45 PoE/PoE+ ports: 8 x 10/100/1000
- SFP uplink ports: 2 x 100/1000
- Expansion: up to 26 Gigabit ports with expansion modules
- PoE budget: 240W base, 480W with expansion module
- Default software licence: Network Advantage
- Power inputs: dual redundant DC, 9.6 to 60 VDC
- PoE voltage: 48 VDC for PoE, 54 VDC for PoE+
- Input current: 10.6A
- Power consumption: 47W, excluding PoE power
- Forwarding rate: line rate for all ports and all packet sizes
- Number of queues: 8
- Unicast MAC addresses: 16K
- VLANs: 256
- IPv4 indirect routes: 3000
- IPv6 indirect routes: 512
- DRAM: 4 GB
- User-accessible flash: 1.5 GB
- Alarms: 2 alarm inputs, 1 alarm output
- Console ports: 1 RS-232 (RJ-45), 1 USB Mini Type B
- Jumbo frames: 8996 bytes
- Dimensions (H x W x D): 15.2 x 11.2 x 13.5 cm
- Weight: 2.3 kg
- Mounting: DIN rail
- Operating temperature: -40 C to +75 C with qualified enclosure airflow
- Storage temperature: -40 C to +85 C
- Relative humidity: 5% to 95% non-condensing
- Ingress protection: IP30
- Rated MTBF: 401,313 hours (Telcordia Issue 3)

FAQs

Q: Which licence does the IE-3400-8P2S-A ship with?
A: It ships with the Network Advantage perpetual licence, indicated by the -A suffix. This includes all Network Essentials features and adds IP routing protocols, virtualisation, MACsec-256, SGT/SGACL and IP multicast routing.

Q: What power supply does it need for PoE?
A: It takes dual redundant DC input from 9.6 to 60 VDC, with 48 VDC required for PoE and 54 VDC for PoE+. Compatible Cisco DIN-rail supplies include PWR-IE65W-PC-AC=, PWR-IE170W-PC-AC=, PWR-IE240W-PCAC-L= and PWR-IE480W-PCAC-L=. Size the supply to cover the switch plus the PoE load.

Q: How can I add more ports?
A: The switch supports IEM-3400 and IEM-3300 expansion modules, taking it up to 26 ports. PoE expansion modules require a PoE-capable base switch such as this one, and add PoE budget up to 480W.

Q: What SFPs can I use in the uplink slots?
A: The two SFP slots accept industrial, extended and commercial temperature SFPs, for example GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD=, GLC-TE= and GLC-FE-100FX=.

Q: Do I need Cisco Catalyst Center licences to manage it?
A: No. The switch can be managed through the WebUI or SNMP. Catalyst Center licences are optional add-ons, and Network Advantage on the switch is required for Catalyst Center Advantage.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
