Cisco

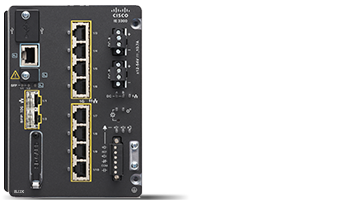

Cisco IE-3300-8U2X-E | Catalyst IE3300 8-Port PoE Industrial Switch, Network Essentials

SKU:IE-3300-8U2X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3300 Rugged Series IE-3300-8U2X-E is a compact, DIN-rail mounted, modular Layer 2/3 industrial Ethernet switch. It suits manufacturing, energy, transportation, mining, smart city and oil and gas sites, as well as outdoor spaces, warehouses and distribution centres, where it can power IP cameras, Wi-Fi 6 access points, PLCs and other PoE end devices.

This SKU provides 8 x 10/100/1000 RJ45 copper ports with 4PPoE (IEEE 802.3bt Type 3) capability and 2 x 1GE/10G SFP+ uplinks. The PoE budget reaches 480W, and the switch forwards at line rate on all ports and all packet sizes. It runs Cisco IOS XE with the Network Essentials licence, includes 4 GB DRAM and 1.5 GB of user-accessible flash, and is fanless with dual redundant DC inputs from 9.6 to 60 VDC. It operates from -40 to +75 C depending on enclosure airflow.

IEM-3300 expansion modules can grow the switch to up to 24 GE ports plus 2 x 10G. The 10G uplinks accept SFP-10G-SR, SFP-10G-LR and SFP-H10G-CUxM twinax, and a Network Advantage upgrade is available as a separate licence.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Rugged fanless design for harsh industrial environments
- High-density industrial PoE up to IEEE 802.3bt Type 3 with a 480W budget
- Modular expansion with IEM-3300 modules for copper, PoE, fibre and 2.5G
- Cisco IOS XE with secure boot, image signing and trust anchor module
- SwapDrive for zero-configuration switch replacement
- Industrial protocols including CIP Ethernet/IP, PROFINET, IEEE 1588 PTPv2, MRP and REP ring redundancy
- Flexible NetFlow for traffic visibility, plus edge compute via IOx
- Managed with Cisco Catalyst Center, NETCONF/RESTCONF/YANG and an onboard WebUI

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Software licence: Network Essentials
- Base ports: 10 total
- Downlink ports: 8 x 10/100/1000 RJ45 (4PPoE, 802.3bt Type 3 capable)
- Uplink ports: 2 x 1GE/10G SFP+
- Expansion: IEM-3300 modules, up to 24 GE plus 2 x 10G
- PoE budget: up to 480W
- Forwarding rate: line rate on all ports and all packet sizes
- Memory: 4 GB DRAM, 1.5 GB user-accessible flash
- Unicast MAC addresses: 16K
- VLANs: 256
- Number of queues: 8
- Jumbo frames: 8996 bytes
- Console ports: 1 RS-232 (RJ-45), 1 USB Mini Type B
- Alarms: 2 inputs, 1 output
- Power inputs: dual DC, 9.6 to 60 VDC
- Power consumption: 42 W excluding PoE
- Dimensions (H x W x D): 15.2 x 11.2 x 13.5 cm
- Weight: 2.0 kg
- Mounting: DIN rail
- Cooling: fanless convection
- Operating temperature: -40 to +75 C with 200 LFM airflow enclosure
- Humidity: 5% to 95% non-condensing
- Ingress protection: IP30
- MTBF: 436,034 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the perpetual Network Essentials licence. A Network Advantage upgrade, IE3300-NW-A=, adds OSPF, BGP, EIGRP, ISIS, PIM multicast, VRF-lite and MACsec-256.

Q: What power supply do I need to reach the full 480W PoE budget?
A: The switch needs a DC supply of 48 to 54 VDC sized for the switch plus the PoE load. The PWR-IE480W-PCAC-L DIN-rail supply is required for the full 480W budget.

Q: Can I add more ports to this switch?
A: Yes. IEM-3300 expansion modules, such as the IEM-3300-8P=, -16P= and -6T2S=, scale it up to 24 GE ports plus 2 x 10G. PoE modules require a PoE-capable base switch like this one.

Q: Which optics work in the 10G SFP+ uplinks?
A: Supported optics include SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR and SFP-H10G-CUxM twinax. The ports also accept many 1GE SFPs such as GLC-SX-MM and GLC-LH-SMD.

Q: How is this switch mounted?
A: It is DIN-rail mounted. A 19-inch rack mount kit, STK-RACK-DINRAIL=, is also supported.
