Cisco

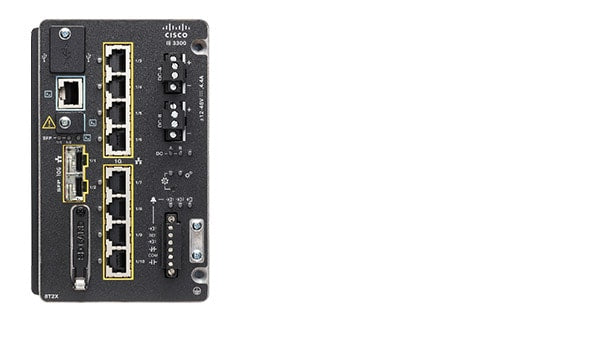

Cisco IE-3300-8T2X-E | Catalyst IE3300 8-Port Rugged Switch, No PoE, Network Essentials

SKU:IE-3300-8T2X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3300 Rugged Series IE-3300-8T2X-E is a compact, modular, DIN-rail industrial Ethernet switch built for manufacturing, energy and utilities, transportation and rail, mining, oil and gas, and smart city deployments. It runs Cisco IOS XE with the Network Essentials feature set and uses a fanless, convection-cooled design with no moving parts.

The base unit provides 8 x 10/100/1000 RJ45 copper ports and 2 x 1G/10G SFP+ uplink ports, 10 ports in total, with line-rate forwarding on all ports. This SKU has no PoE. Dual redundant DC inputs accept 9.6 to 60 VDC and the switch draws 28 W. Operating range is -40 to +75 C with a minimum of 200 LFM airflow. IEM-3300 expansion modules grow the switch to 24 GE downlink ports plus 2 x 10G uplinks.

Network Essentials ships by default and can be upgraded to Network Advantage with IE3300-NW-A=, which adds OSPF, BGP, EIGRP, IS-IS, RIP, PIM, VRF-lite and MACsec-256. The uplinks accept SFP and SFP+ optics such as SFP-10G-SR, SFP-10G-LR and SFP-H10G-CUxM twinax.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Rugged, fanless, convection-cooled design for harsh industrial environments
- Modular expansion with IEM-3300 modules for copper, PoE, fibre and 2.5G ports
- Cisco IOS XE with secure boot, image signing and trust anchor module
- SwapDrive for zero-configuration replacement of a failed switch
- Industrial protocols including CIP Ethernet/IP, PROFINET, PTPv2 and MODBUS TCP/IP
- Ring redundancy with REP, PROFINET MRP and Fast REP
- Layer 2 security and QoS including 802.1x, DHCP snooping, MACsec-128 and auto QoS
- Edge compute with IOx container support and Flexible NetFlow visibility

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Total ports (base unit): 10
- Copper ports: 8 x 10/100/1000 RJ45
- Uplink ports: 2 x 1G/10G SFP+
- PoE: Not applicable
- Software licence (default): Network Essentials
- Expansion: up to 24 GE + 2 x 10G ports with IEM-3300 modules
- DRAM: 4 GB
- User-accessible flash: 1.5 GB
- Forwarding rate: Line rate for all ports and packet sizes
- Unicast MAC addresses: 16K
- VLANs: 256
- Jumbo frames: 8996 bytes
- Power inputs: Dual redundant DC, 9.6 to 60 VDC
- Maximum input current: 4.5 A
- Power consumption: 28 W (at 12 V)
- Alarms: 2 inputs, 1 output
- Console: RS-232 (RJ-45) and USB Mini Type B
- Mounting: DIN rail, fanless
- Dimensions (H x W x D): 15.2 x 9.7 x 13.5 cm
- Weight: 1.6 kg
- Operating temperature: -40 to +75 C (minimum 200 LFM airflow)
- Storage temperature: -40 to +85 C
- Relative humidity: 5% to 95% non-condensing
- MTBF (Telcordia Issue 4, predicted): 463,629 hours

FAQs

Q: Which licence does this switch run?
A: It runs the Network Essentials licence by default. It can be upgraded to Network Advantage with IE3300-NW-A=, which adds OSPF, BGP, EIGRP, IS-IS, RIP, PIM, VRF-lite and MACsec-256.

Q: How is the switch powered?
A: It has dual redundant DC inputs accepting 9.6 to 60 VDC and draws 28 W. Compatible DIN-rail supplies include PWR-IE50W-AC=, PWR-IE65W-PC-AC/DC= and PWR-IE170W-PC-AC/DC=. Add 6 to 21 W per expansion module.

Q: Which expansion modules does it accept?
A: It accepts IEM-3300-8T=, 8P=, 8S=, 16T=, 16P=, 6T2S=, 14T2S= and 4MU=. PoE modules only deliver PoE on PoE-capable base switches, so they will not provide PoE on this non-PoE base.

Q: Which optics fit the 10G uplink ports?
A: The uplinks take SFP and SFP+ optics including SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR, SFP-H10G-CUxM twinax and 1G options such as GLC-SX-MM and GLC-LH-SMD.

Q: How does this SKU differ from PoE versions of the IE3300?
A: IE-3300-8T2X-E has no PoE on the base unit and ships with Network Essentials. PoE variants add power budgets for powered devices and may use a different licence tier.
