Cisco

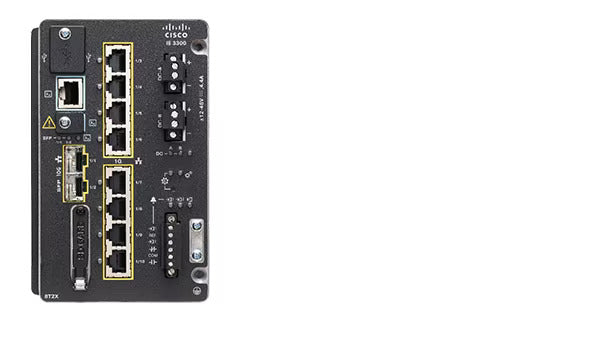

Cisco IE-3300-8T2X-A | Catalyst IE3300 8-Port Gigabit Switch, 2x 10G SFP+, Network Advantage

SKU:IE-3300-8T2X-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3300 Rugged Series IE-3300-8T2X-A is a compact, DIN-rail mounted, modular industrial Ethernet switch built for harsh environments such as manufacturing, energy, transportation, mining and smart cities. It suits industrial and extended enterprise networks, electric substations, warehouses and distribution centres where industrial devices need 10G uplinks with Layer 3 routing.

This non-PoE model provides 8 x 10/100/1000 RJ45 copper ports and 2 x 1GE/10G SFP+ uplink ports, with line-rate forwarding on all ports and packet sizes. It ships with the Network Advantage perpetual licence, which includes all Network Essentials features and adds IP routing protocols, VRF-lite, PIM multicast and MACsec-256. It runs Cisco IOS XE with 4 GB DRAM and 1.5 GB of user-accessible flash, and is fanless with dual redundant DC inputs from 9.6 to 60 VDC. Operating temperature extends from -40 to +75 C with at least 200 LFM airflow.

The base unit expands from 10 fixed ports to up to 24 GE plus 2 x 10G ports using IEM-3300 expansion modules. Supported 10G optics include SFP-10G-SR, SFP-10G-LR and SFP-H10G-CUxM passive twinax cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with secure boot, image signing and Cisco Trust anchor module
- Fanless, convection-cooled design with no moving parts
- Network Advantage adds OSPF, BGP, EIGRP, IS-IS, RIP, PBR, VRRP/HSRP, VRF-lite, PIM and MACsec-256
- Resilient Ethernet Protocol (REP) and PROFINET MRP ring redundancy
- IEEE 1588 PTPv2, CIP EtherNet/IP and PROFINET support
- IOx edge compute with Cisco Cyber Vision and Secure Equipment Access
- WebUI plus NETCONF/RESTCONF/YANG automation
- SwapDrive for zero-configuration switch replacement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 8 x 10/100/1000 RJ45
- Uplink ports: 2 x 1GE/10G SFP+
- Total fixed ports: 10
- Expansion: up to 24 GE + 2 x 10G ports with IEM-3300 modules
- PoE: not applicable (non-PoE model)
- Software licence: Network Advantage
- Forwarding rate: line rate on all ports and packet sizes
- Queues: 8
- Unicast MAC addresses: 16K
- VLANs: 256
- IPv4 indirect routes: 3000
- IPv6 indirect routes: 512
- DRAM: 4 GB
- User-accessible flash: 1.5 GB
- Jumbo frames: 8996 bytes
- Power inputs: dual redundant DC, 9.6 to 60 VDC
- Maximum input current: 4.5 A
- Power consumption: 28 W (measured at 12 V)
- Console ports: 1 RS-232 (RJ-45), 1 USB Mini Type B
- Alarms: 2 inputs, 1 output
- Dimensions (H x W x D): 15.2 x 9.7 x 13.5 cm
- Weight: 1.6 kg
- Mounting: DIN rail
- Operating temperature: -40 to +75 C (min. 200 LFM airflow)
- Storage temperature: -40 to +85 C
- Relative humidity: 5% to 95% non-condensing

FAQs

Q: Which software licence does this model run?
A: It ships with the Network Advantage perpetual licence, which includes all Network Essentials features and adds IP routing protocols, VRF-lite, PIM multicast and MACsec-256. Cisco Catalyst Center licences are optional add-ons.

Q: Does this switch provide PoE?
A: No. The IE-3300-8T2X-A is a non-PoE base unit. PoE expansion modules only work with a PoE-capable base switch, so this model supports copper and SFP expansion modules.

Q: How is it powered?
A: It has dual redundant DC inputs accepting 9.6 to 60 VDC, with a maximum input current of 4.5 A. Compatible DIN-rail supplies include PWR-IE50W-AC=, PWR-IE65W-PC-AC/DC= and PWR-IE170W-PC-AC/DC=.

Q: Which expansion modules and optics does it work with?
A: It supports IEM-3300 modules such as IEM-3300-8T=, IEM-3300-16T=, IEM-3300-8S= and IEM-3300-6T2S=. For the SFP+ uplinks it supports optics including SFP-10G-SR, SFP-10G-LR, SFP-10G-ER and SFP-H10G-CUxM twinax.

Q: How many ports can this switch be expanded to?
A: The base unit has 10 fixed ports and can be expanded to up to 24 GE plus 2 x 10G ports using IEM-3300 expansion modules.
