Cisco

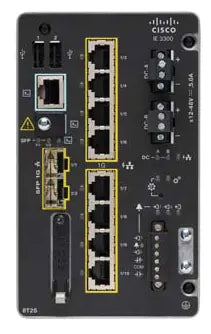

Cisco IE-3300-8T2S-A | Catalyst IE3300 8-Port Gigabit Industrial Switch, Network Advantage

SKU:IE-3300-8T2S-A

$5,671.00 USD
Sale Sold out
Shipping calculated at checkout.

1 in stock

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3300 Rugged Series IE-3300-8T2S-A is a compact, DIN-rail mounted, modular industrial Ethernet switch built for factory floors, substations, transport networks and other harsh or outdoor environments. It runs Cisco IOS XE and suits industrial automation, energy, railway, mining, oil and gas, smart city and warehouse deployments.

The base unit provides 8 x 10/100/1000 RJ45 copper ports and 2 x 100/1000 SFP uplinks, with line-rate forwarding on all ports and packet sizes. This is a non-PoE model. It ships with the Network Advantage feature set, which includes all Network Essentials features and adds routing protocols such as OSPF, BGP and EIGRP. Dual redundant DC inputs accept 9.6 to 60 VDC, and the fanless design is rated for operation from -40 C to +75 C with 200 LFM airflow.

The base switch can be expanded from 10 ports up to 26 Gigabit Ethernet ports using IEM-3300 expansion modules such as the IEM-3300-8T, 8S, 16T, 6T2S and 14T2S. The SFP slots accept industrial GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-ZX-SM-RGD and GLC-T-RGD modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular design, expandable to up to 26 Gigabit Ethernet ports with IEM-3300 expansion modules
- Runs Cisco IOS XE with secure boot, image signing and Cisco Trust anchor module
- Network Advantage feature set including OSPF, BGP, EIGRP, RIP, IS-IS, PBR, VRRP/HSRP, VRF-lite, PIM multicast and MACsec-256
- Fanless, convection-cooled design hardened for vibration, shock, surge and electrical noise
- IEEE 1588 PTPv2 with Default and Power Profiles
- Resilient Ethernet Protocol (REP), PROFINET MRP, CIP Ethernet/IP and Layer 2 NAT for industrial networks
- IOx container support for edge compute, with Cisco Cyber Vision and Secure Equipment Access
- SwapDrive for zero-configuration switch replacement and Flexible NetFlow for traffic visibility

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 8 x 10/100/1000 RJ45 (non-PoE)
- Uplinks: 2 x 100/1000 SFP
- Total ports (base unit): 10, expandable up to 26 GE ports
- Software licence: Network Advantage
- Forwarding rate: line rate on all ports and packet sizes
- Number of queues: 8
- Unicast MAC addresses: 16K
- IGMP multicast groups: 1K
- VLANs: 256
- IPv4 indirect routes: 3000
- IPv6 indirect routes: 512
- STP instances: 128
- Access control entries (PACL/VACL/RACL): 3K
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- Jumbo frames: 8996 bytes
- Removable storage: USB, optional SD card
- Alarms: 2 inputs, 1 output
- Console ports: 1 RS-232 (RJ-45), 1 USB Mini Type B
- Power inputs: dual redundant DC, 9.6 to 60 VDC
- Maximum input current: 3.8 A
- Power consumption: 23 W (measured at 12 V)
- Dimensions (H x W x D): 15.2 x 9.1 x 13.5 cm
- Weight: 1.7 kg
- Mounting: DIN rail
- Operating temperature: -40 to +75 C (min. 200 LFM airflow)
- Storage temperature: -40 to +85 C
- Relative humidity: 5% to 95% non-condensing
- MTBF: 633,420 hours (Telcordia Issue 3)

FAQs

Q: Which licence does the IE-3300-8T2S-A ship with?
A: It ships with the Network Advantage perpetual licence, indicated by the -A suffix. This includes all Network Essentials features. Cisco Catalyst Center licences are optional add-ons, and Network Advantage is required on the switch for Catalyst Center Advantage.

Q: Does this switch provide PoE?
A: No. This is a non-PoE model with 8 copper Gigabit ports and 2 SFP uplinks. The PoE expansion modules (IEM-3300-8P, 16P and 4MU) require a PoE-capable base switch, so they do not apply to this unit.

Q: How is the switch powered?
A: It uses dual redundant DC inputs from 9.6 to 60 VDC, with a maximum current of 3.8 A and typical consumption of 23 W. A DC supply or a Cisco DIN-rail power supply such as PWR-IE50W-AC is required.

Q: Which expansion modules and SFPs work with it?
A: It supports the IEM-3300-8T, 8S, 16T, 6T2S and 14T2S expansion modules to reach up to 26 ports. The SFP slots accept 100M and 1000BASE SFPs, including industrial GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-ZX-SM-RGD and GLC-T-RGD.

Q: What temperature range can it operate in?
A: It operates from -40 C to +75 C when a minimum of 200 LFM airflow is provided. In a sealed enclosure the range is -40 C to +60 C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
