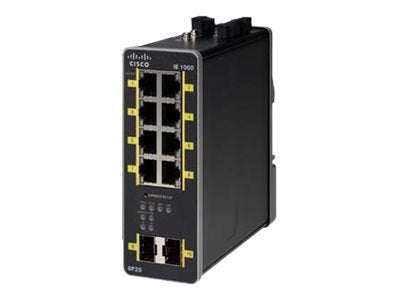

• Cisco IE-1000-8P2S-LM black switch with yellow accents, 8 PoE ports
1 1

Cisco

Cisco IE-1000-8P2S-LM | Industrial Ethernet 1000 8-Port Fast Ethernet PoE+ Switch, 180W, 2x 1G SFP

IE-1000-8P2S-LM

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-1000-8P2S-LM is a compact, rugged industrial Ethernet switch designed for harsh environments with limited IT resources. Featuring 8 Fast Ethernet PoE+ ports and 2 Gigabit SFP uplinks, it delivers 180W of PoE budget to power IP cameras, sensors, and wireless access points in factory automation, transportation, and building automation applications. With web-based GUI management, DIN rail mounting, and an operating temperature range of -40°C to 70°C, this switch provides reliable connectivity for industrial IoT and machine-to-machine deployments.

Features

Layer 2 switching with VLAN support (IEEE 802.1Q)
- Spanning Tree Protocol (STP, RSTP, MSTP) with STP Portfast and BPDU guard
- Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) aware
- IGMP snooping and IGMP querier for multicast optimization
- DHCP server and DHCP snooping for IP address management
- Port security with Sticky-MAC to prevent unauthorized device connections
- Quality of Service (QoS) with Trust Ingress DSCP, CoS, and priority port configuration
- IEEE 802.1x network access control with MAC authentication bypass
- EtherChannel (IEEE 802.3ad LACP) for link aggregation
- SPAN/Port Mirroring for traffic analysis and troubleshooting
- Storm control to prevent broadcast, multicast, and unknown unicast flooding
- Alarm relay output for remote monitoring and fault notification
- Redundant power input support for high availability
- Plug and Play (PnP) provisioning for automated configuration deployment
- Ethernet/IP (CIP) support for industrial automation protocols
- Compact fanless design for silent operation in noise-sensitive environments
- BootP server with per-port support for legacy device integration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

8 x 10/100 Mbps Fast Ethernet RJ45 ports with PoE/PoE+ (IEEE 802.3af/at)
- 2 x Gigabit Ethernet SFP uplink ports (1000Base-X)
- PoE Budget: 180W total
- Switching Bandwidth: 5.6 Gbps
- Forwarding Rate: 2.8 Gbps
- Memory: 128 MB DDR2 DRAM, 160 MB Flash
- Power Consumption: 10.6W (without PoE), 134.4-205.2W (with PoE)
- Input Power: 48-54V DC
- Operating Temperature: -40°C to +70°C
- Dimensions (H x W x D): 5.0" x 1.8" x 5.3" (127 mm x 45.7 mm x 134 mm)
- Mounting: DIN rail or control cabinet
- Enclosure Rating: IP30, fanless design
- Alarm I/O: Output connector, 1.0A@24VDC or 0.5A@48VDC
- Management: Web GUI, SNMP v2/v3
- License: LAN Lite (GUI-based, lightly-managed)

FAQs

Q: What is the maximum PoE power budget available on the IE-1000-8P2S-LM?
A: The switch provides a total PoE budget of 180W across its 8 PoE+ ports, supporting both IEEE 802.3af (PoE) and 802.3at (PoE+) standards with up to 30W per port for powering industrial devices like IP cameras and access points.

Q: What operating temperature range does this switch support?
A: The IE-1000-8P2S-LM is designed for harsh industrial environments and operates reliably in temperatures ranging from -40°C to +70°C, making it suitable for factory floors, outdoor enclosures, and extreme climate deployments.

Q: What type of management interface does the IE-1000-8P2S-LM offer?
A: This switch features a user-friendly web-based GUI designed for operational technology users with limited IT knowledge. It also supports SNMP v2/v3, syslog, and zero-touch provisioning via DHCP for simplified deployment and management.

Q: Can the IE-1000-8P2S-LM be used in Layer 3 routing applications?
A: No, the IE-1000-8P2S-LM is a Layer 2 switch with LAN Lite licensing. It provides essential Layer 2 features like VLANs, STP, LLDP, IGMP snooping, and port security, but does not support Layer 3 routing functions.

Q: What are the typical deployment scenarios for this industrial switch?
A: The IE-1000-8P2S-LM is ideal for factory automation, intelligent transportation systems, city surveillance networks, building automation, and machine-to-machine connectivity where compact, rugged, and easy-to-manage PoE-capable switches are required in space-constrained or harsh environments.
