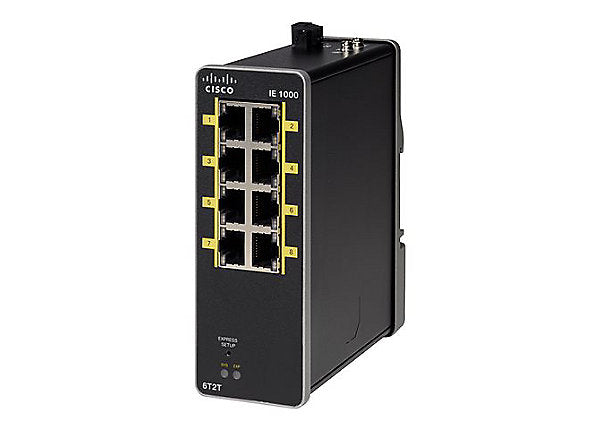

• Cisco IE-1000-6T2T-LM industrial Ethernet switch with RJ45 ports
1 1

Cisco

Cisco IE-1000-6T2T-LM | Industrial Ethernet 1000 8-Port Fast Ethernet Industrial Switch, 2x FE Uplinks

IE-1000-6T2T-LM

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-1000-6T2T-LM is a compact industrial Ethernet switch designed for operational technology users requiring reliable connectivity in harsh environments. With 6 Fast Ethernet downlink ports and 2 Fast Ethernet uplink ports, this GUI-based Layer 2 switch delivers simplified management through web interface for factory automation, intelligent transportation systems, and building automation applications. Built for rugged conditions with DIN rail mounting and wide temperature tolerance, the IE1000 provides zero-touch deployment and essential network features for machine-to-machine connectivity.

Features

GUI-based lightly-managed Layer 2 switch optimized for operational technology users
- Zero-touch IP discovery and DHCP IP addressing for simplified deployment
- Plug and Play (PnP) support for automated device provisioning
- VLAN support (IEEE 802.1Q) for network segmentation
- Spanning Tree Protocol with STP, RSTP (802.1w), and MSTP (802.1s) support
- LLDP and Cisco Discovery Protocol (CDP) awareness for network discovery
- IGMP snooping and IGMP querier for multicast traffic optimization
- DHCP snooping and DHCP server capabilities
- Port security and MAC address sticky learning
- IEEE 802.1x authentication with MAC authentication bypass
- Quality of Service (QoS) with DSCP, CoS, and priority port configuration
- Port mirroring (SPAN) for traffic analysis
- Storm control for broadcast, multicast, and unicast traffic
- EtherChannel support for link aggregation
- BPDU guard for network protection
- Alarm I/O connector for environmental monitoring integration
- Rugged metal housing with IP30 rating for industrial environments
- DIN rail mounting for space-efficient installation
- Fast startup time: 30 seconds from cold boot
- Industrial protocol support including EtherNet/IP with EDS files
- SmartPort macros for simplified configuration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 8x Fast Ethernet (10/100 Mbps) copper RJ45
- Port Configuration: 6x 10/100 Mbps downlink ports, 2x 10/100 Mbps uplink ports
- Switching Bandwidth: 5.6 Gbps maximum
- Forwarding Bandwidth: 2.8 Gbps maximum
- Layer: Layer 2 managed switch
- Memory: 128 MB DDR2 DRAM
- Flash Storage: 160 MB onboard flash memory
- Power Consumption: 5.3W typical
- Input Voltage: 12-24V DC
- Management: Web GUI, CLI, SNMP v2/v3, syslog
- Dimensions (H x W x D): 5.0" x 1.8" x 4.5" (127mm x 45.7mm x 115mm)
- Mounting: DIN rail mountable
- Operating Temperature: Extended range for industrial environments
- Certifications: IP30, UL/CSA/IEC 61010-2-201, ANSI/ISA 12.12.01 Class I Division 2, EN 61131-2
- Standards: IEEE 802.3, 802.3u (Fast Ethernet), 802.1D (STP), 802.1w (RSTP), 802.1s (MSTP), 802.1Q (VLAN), 802.1p (QoS), 802.1ab (LLDP), 802.1x (security)

FAQs

Q: Does the IE-1000-6T2T-LM support Power over Ethernet?
A: No, the IE-1000-6T2T-LM does not support PoE or PoE+. This model provides 8 Fast Ethernet copper ports without power delivery capability. For PoE requirements, consider the IE-1000-4P2S-LM or IE-1000-8P2S-LM models.

Q: What management options are available on this switch?
A: The IE-1000-6T2T-LM features a user-friendly web-based GUI for simplified management, making it ideal for OT users with limited IT knowledge. It also supports CLI access, SNMP v2/v3 for network monitoring, and syslog for diagnostics. The switch offers zero-touch IP discovery and DHCP for easy deployment.

Q: What are the typical deployment scenarios for this industrial switch?
A: This switch is designed for industrial Ethernet applications including factory automation, machine-to-machine communications, intelligent transportation systems, city surveillance programs, building automation, and other harsh environment deployments requiring compact, rugged networking equipment.

Q: What is the difference between the downlink and uplink ports?
A: The IE-1000-6T2T-LM features 6 Fast Ethernet downlink ports for connecting industrial devices like sensors and controllers, and 2 dedicated Fast Ethernet uplink ports for connecting to the network backbone. All ports operate at 10/100 Mbps over copper RJ45 connections.

Q: Does this switch require any licensing to operate?
A: The IE-1000-6T2T-LM comes with LAN Lite functionality built-in and does not require additional licenses for Layer 2 switching features including VLANs, STP/RSTP/MSTP, IGMP snooping, port security, and basic QoS capabilities.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
