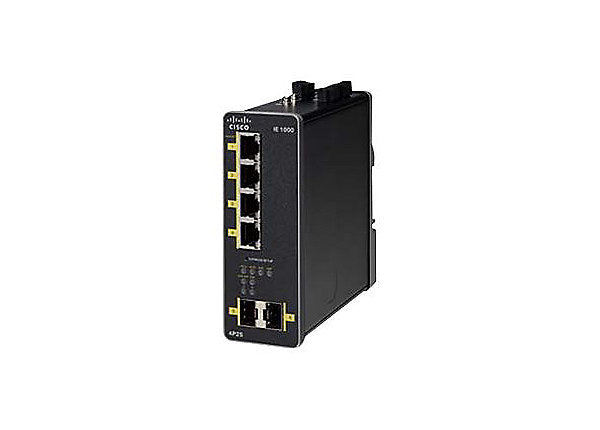

• Cisco IE-1000-4P2S-LM industrial Ethernet switch with 4 PoE+ RJ45 ports
1 1

Cisco

Cisco IE-1000-4P2S-LM | Industrial Ethernet 1000 4-Port Fast Ethernet PoE+ Switch, 120W, 2x 1G SFP

IE-1000-4P2S-LM

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-1000-4P2S-LM is a compact, rugged industrial Ethernet switch designed for harsh operational environments with limited IT resources. Featuring 4 Fast Ethernet PoE+ ports and 2 Gigabit SFP uplinks, this GUI-based, lightly-managed Layer 2 switch delivers reliable connectivity and power for factory automation, intelligent transportation systems, building automation, and city surveillance applications. With DIN-rail mounting, fanless design, and extended temperature tolerance, it provides an ideal entry-level solution for connecting IP cameras, sensors, and industrial control devices in space-constrained installations.

Features

GUI-based lightly-managed interface for simplified configuration without CLI expertise
- Plug and Play (PnP) support for automated provisioning and zero-touch deployment
- Zero-touch IP discovery and DHCP addressing for rapid installation
- IEEE 802.3at PoE+ support on all 4 copper ports, up to 30W per port
- VLAN support (IEEE 802.1Q) for network segmentation
- Spanning Tree Protocol (STP, RSTP, MSTP) for redundancy and loop prevention
- Link Aggregation Control Protocol (LACP) for increased bandwidth
- IGMP snooping and querier for efficient multicast traffic management
- DHCP snooping for enhanced network security
- Quality of Service (QoS) with IEEE 802.1p priority tagging
- SNMP v2/v3 and Syslog for diagnostics and monitoring
- Alarm I/O output connector for integration with industrial control systems
- Fanless, ruggedized design for silent operation and extended MTBF
- DIN-rail mounting for easy installation in industrial enclosures
- Extended temperature range operation from -40°C to +70°C
- IP30 rated enclosure for dust and object ingress protection
- Fast startup time: 30 seconds from cold boot for minimal downtime
- Support for industrial protocols and EtherNet/IP for OT integration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 6 (4x Fast Ethernet 10/100 Mbps PoE+ ports, 2x Gigabit Ethernet SFP uplinks)
- PoE Budget: 120W total (up to 30W per port, IEEE 802.3af/at compliant)
- Switching Capacity: 5.6 Gbps
- Forwarding Rate: 2.8 Gbps
- Memory: 128 MB DDR2 RAM, 160 MB Flash
- Management: Web-based GUI, SNMP v2/v3, Syslog, DHCP, Plug and Play
- Layer 2 Features: VLANs (IEEE 802.1Q), Spanning Tree (802.1D/w/s), LACP (802.1ad), LLDP, IGMP snooping
- Operating Temperature: -40°C to +70°C (vented enclosure)
- Mounting: DIN-rail mountable, fanless design
- Dimensions (H x W x D): 127mm x 45.7mm x 134mm (5.0 x 1.8 x 5.3 inches)
- Weight: 0.77 kg (1.7 lbs)
- Power Input: 48-54V DC (external power supply required)
- Power Consumption: 8.6W (without PoE), 72-140.4W (with PoE)
- Certifications: EN 61131-2, IEC 60068-2-27, IP30, ANSI/ISA 12.12.01 Class I Division 2, UL/CSA 61010-2-201, RoHS, WEEE
- MTBF: 374,052 hours (42.7 years)

FAQs

Q: What does 'LM' mean in the model number IE-1000-4P2S-LM?
A: LM stands for Lightly Managed. These switches are designed for operational technology users who need plug-and-play simplicity with basic management features like VLANs, security, and port monitoring via a user-friendly web interface, without requiring extensive IT knowledge.

Q: Does the IE-1000-4P2S-LM include a power supply?
A: No, the switch requires an external 48-54V DC power supply, which is sold separately. This is standard for industrial switches designed to integrate with existing industrial power infrastructure in control cabinets.

Q: What is the maximum PoE budget and how does it vary?
A: The PoE budget is 120W when powered by a 54V DC input, or 60W when powered by 48V DC. Each port supports up to 30W per device under IEEE 802.3at PoE+ standard, ideal for powering IP cameras, wireless access points, and industrial sensors.

Q: Can this switch operate in extreme temperatures?
A: Yes, the IE-1000-4P2S-LM is rated for -40°C to +70°C operation in vented enclosures, making it suitable for factory floors, outdoor cabinets, transportation infrastructure, and other harsh industrial environments where standard commercial switches would fail.

Q: Is the IE-1000-4P2S-LM compatible with other Cisco industrial switches?
A: Yes, the IE 1000 Series complements Cisco's broader industrial Ethernet portfolio including IE 2000, IE 3000, IE 4000, and IE 5000 Series switches, allowing seamless integration into existing Cisco industrial network architectures with consistent management and protocols.
