Cisco FPR4245-K9 | Firepower 4245 Firewall, 140 Gbps, Spare Chassis

FPR4245-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Firepower 4245 is the highest-performance model in Cisco's Secure Firewall 4200 Series (formerly Firepower 4200). This 1RU next-generation firewall and IPS platform is aimed at large enterprises, data centres and service providers that need high-throughput inspection, IPsec VPN and TLS decryption. This SKU is the spare chassis only, intended as a replacement or sparing unit for existing 4245 deployments.

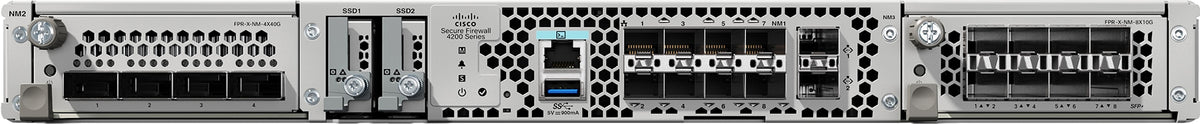

The chassis provides 8 fixed 1/10/25G SFP28 data ports and 2 SFP28 management ports, with two network module bays for additional interfaces from 1G up to 400G, including fail-to-wire options. It carries 2 x 1.8 TB NVMe SSDs and 1 TB of system memory. In Threat Defense (FTD) mode it delivers 140 Gbps of FW+AVC+IPS throughput at 1024B, 60 million concurrent sessions and 800K new connections per second, and up to 16 chassis can be clustered.

The unit runs either Secure Firewall Threat Defense or ASA software under Cisco Smart Licensing, and no software licences or subscriptions are included with this SKU. It has two PSU bays supporting 200 to 240 VAC high-line power supplies. The 4245 accepts these network modules: 8-port 1G copper FTW, 8 x 1/10G SFP+, 8 x 1/10/25G SFP28, 4 x 40G QSFP+, 4 x 40/100/200G QSFP28, 2 x 100G QSFP28, 2 x 400G QSFP-DD, and 6-port 10G or 25G SR/LR FTW.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco Secure Firewall Threat Defense or ASA software
- Cryptographic acceleration preserves performance with SSL and VPN decryption
- Deployable in both firewall and dedicated IPS modes
- Application Visibility and Control with more than 4000 applications plus OpenAppID support
- Active/active clustering of up to 16 chassis, plus active/standby high availability
- Fail-to-wire network modules available for resilient inline deployments
- Q-in-Q support for inline sets and passive interfaces, up to two 802.1Q headers
- Managed via Firewall Management Center, Security Cloud Control, or on-box FDM (FTD) and ASDM (ASA)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU rack-mount
- Dimensions (H x W x D): 4.39 x 42.9 x 81.28 cm (1.73 x 16.89 x 32.0 in)
- Fixed data ports: 8 x 1/10/25G SFP28
- Management ports: 2 x 1/10/25G SFP28
- Network module bays: 2
- Storage: 2 x 1.8 TB SSD (NVMe)
- System memory: 1 TB
- Console port: 1 x RJ-45
- FW + AVC throughput (1024B, FTD): 140 Gbps
- FW + AVC + IPS throughput (1024B, FTD): 140 Gbps
- NGIPS throughput (1024B): 140 Gbps
- Maximum concurrent sessions with AVC: 60 million
- New connections per second with AVC: 800K
- TLS hardware decryption: 45 Gbps
- IPsec VPN throughput (1024B TCP with fastpath): 140 Gbps
- Maximum VPN peers: 30,000
- Multi-instance: 34 instances
- Clustering: up to 16 chassis
- AC input voltage: 200 to 240 VAC (high line)
- AC maximum input power: 1380W
- Power supply redundancy: 1+1, hot-swappable
- Fans: 3 dual-fan modules
- Rack mounting: 4-post EIA-310-D
- Operating temperature: 0 to 40 C
- Operating humidity: 5 to 95% non-condensing
- Weight (no PSUs, no network modules, no fans): 16.3 kg (36 lbs)

FAQs

Q: Does this chassis include a software licence?
A: No. No software licences or subscriptions are included. The unit runs Secure Firewall Threat Defense or ASA software under Cisco Smart Licensing. ASA needs the free Base licence, and FTD offers optional Threat, Malware Defense and URL subscriptions.

Q: What power does the 4245 require?
A: The 4245 supports 200 to 240 VAC high-line input only, with a 14A maximum input current and 1380W maximum input power. The chassis has two PSU bays for 1+1 redundant, hot-swappable power supplies.

Q: Which network modules does it support?
A: It has two network module bays and accepts 8-port 1G copper FTW, 8 x 1/10G SFP+, 8 x 1/10/25G SFP28, 4 x 40G QSFP+, 4 x 40/100/200G QSFP28, 2 x 100G QSFP28, 2 x 400G QSFP-DD, and 6-port 10G or 25G SR/LR FTW modules.

Q: Can it be clustered with other firewalls?
A: Yes. Up to 16 chassis from the Secure Firewall 4200 Series can be clustered, which suits it to replacing or expanding an existing 4245 deployment.
