• Cisco 8841 Gigabit IP Desk Phone in First Light White with Color LCD
1 1

Cisco

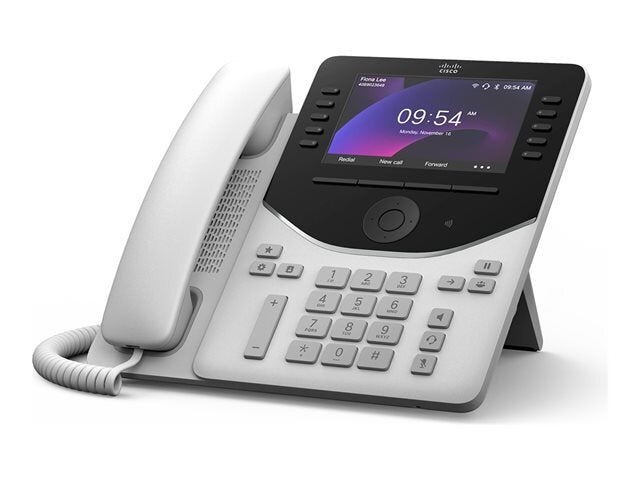

Cisco DP-9861-L-K9 | Desk Phone 9861 IP Phone, Wi-Fi, Bluetooth, White

DP-9861-L-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 9861 is a Gigabit SIP IP desk phone from the Cisco Desk Phone 9800 Series, fitted with a 5-inch backlit colour LCD, 10 physical line keys and built-in dual-band Wi-Fi and Bluetooth 5.2. This First Light (white) model includes the Wi-Fi and Bluetooth radio, a 2-port Gigabit Ethernet switch for the LAN and a co-located PC, and runs on 802.3af PoE. It registers to Cisco Unified Communications Manager, Webex Calling and Open SIP platforms, making it a flexible endpoint for offices, hot desks and wireless-first deployments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Built-in dual-band Wi-Fi and Bluetooth radios
- Conventional and AI-based background noise removal for the receiving side
- Backlit indicators for speakerphone, headset, mute, calendar and select keys and line keys
- Calendar button, navigation and select key, plus custom wallpaper and logo support
- Wi-Fi authentication includes WPA3 Personal and Enterprise, EAP-FAST and EAP-TLS
- Built-in ThousandEyes agent for network path monitoring
- Single PhoneOS software image shared across the 9800 series
- Registers to Cisco Unified Communications Manager, Webex Calling and Open SIP platforms

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5-inch colour LCD, 800 x 480 resolution, backlit
- 10 physical line keys; up to 130 programmable line keys
- Up to 130 SIP lines for CUCM and Webex DI; 16 for Webex Calling and Open SIP platforms
- Internal 2-port Gigabit Ethernet switch (10/100/1000BASE-T, RJ-45) for LAN and PC
- IEEE 802.3af Power over Ethernet, Class 3
- Wi-Fi 802.11a/b/g/n/ac, 2.4 GHz and 5 GHz dual band
- Bluetooth 5.2 LE with EDR, Class 1; HFP, A2DP, HID and PBAP profiles
- 1 x USB-A port (0.5A/5V under PoE, 1.3A/5V with Power Adapter 3)
- 1 x USB-C port (0.5A/5V power output)
- Supports 1 Key Expansion Module on PoE, up to 3 with Cisco Power Adapter 3
- Dimensions (H x W x D): 225.87 x 229.6 x 49.4 mm
- Weight: 1095 g
- Deep sleep power consumption: 0.79W under PoE; 0.27W with Power Adapter 3
- Colour: First Light (white)

FAQs

Q: Does this phone have built-in Wi-Fi and Bluetooth?
A: Yes. The DP-9861-L-K9 includes dual-band 802.11a/b/g/n/ac Wi-Fi and Bluetooth 5.2, so it can connect wirelessly and pair with Bluetooth headsets.

Q: How is the phone powered?
A: It supports IEEE 802.3af Power over Ethernet (Class 3), so a PoE switch or injector can power it over the LAN cable. Cisco Power Adapter 3 can also be used, which allows more key expansion modules.

Q: Which call control platforms does it work with?
A: It registers to Cisco Unified Communications Manager, Webex Calling and Open SIP platforms. Supported line counts differ by platform: up to 130 for CUCM and Webex DI, and 16 for Webex Calling and Open SIP.

Q: Can I connect a PC through the phone?
A: Yes. The internal 2-port Gigabit Ethernet switch provides one LAN port and one PC port, both 10/100/1000 RJ-45.

Q: Can I add a Key Expansion Module?
A: Yes. One module is supported when powered by PoE, and up to three when using Cisco Power Adapter 3.
