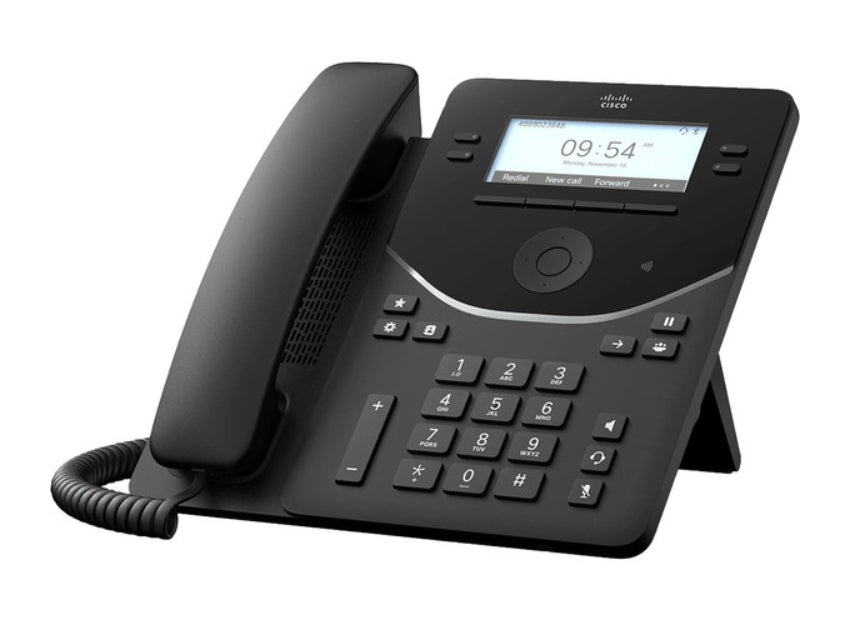

• Cisco DP-9841-K9 VoIP desk phone in carbon black with LCD display
1 1

Cisco

Cisco DP-9841-K9 | Desk Phone 9800 4-Line IP Phone, PoE, Carbon Black, NFC

DP-9841-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Desk Phone 9841 is an entry-level VoIP desk phone in Carbon Black with NFC, running Cisco PhoneOS. It features a 3.5-inch backlit grayscale display, 4 line keys and a 2-port Gigabit Ethernet switch with PC pass-through, powered by IEEE 802.3af PoE Class 2. It suits hybrid, home and office deployments and registers to Cisco CUCM, Webex Calling, BroadWorks and open SIP platforms. This is the standard non-TAA model with NFC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco PhoneOS, one software image across platforms
- AI-based noise removal and Cisco Smart Audio
- One Button to Join meetings
- Desk reservation and hot desking
- Configurable Action button
- Front arc LED and top 360 LED status indicators
- Display-off and deep sleep energy saving modes
- Constructed with 74% post-consumer recycled plastic; ENERGY STAR certified
- Wall mountable with optional wall mount kit (DP-9800-WMK=)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 3.5-inch grayscale LCD, 384 x 160 resolution, backlit
- 4 physical line keys (up to 4 programmable line keys)
- Up to 130 SIP lines on CUCM and Webex DI; 16 on Webex Calling and Open SIP platforms
- 2-port internal Gigabit Ethernet switch (10/100/1000BASE-T, RJ-45) with PC pass-through
- 1 x USB-A port (0.25A at 5V under PoE; 0.5A at 5V with Cisco Power Adapter 3)
- 1 x Aux port (console log output only)
- RJ-9 handset port
- IEEE PoE Class 2 (802.3af); input rating 0.42A, 48V DC
- Full-duplex speakerphone; Hearing Aid Compatible handset
- Codecs: OPUS, G.722/G.722.2, iSAC, G.711, G.729a/b, iLBC
- Security: FIPS 140-2, TLS 1.3, TPM 2.0, 802.1X, secure boot
- Dimensions (H x W x D): 214.0 x 214.0 x 49.4 mm
- Weight: 954 g
- No Wi-Fi, no Bluetooth, no KEM support
- Display-off power: 2.35W (local power supply) / 1.95W (PoE)

FAQs

Q: Which call control platforms does the Desk Phone 9841 support?
A: It registers to Cisco CUCM, Webex Calling, BroadWorks and open SIP platforms.

Q: How is the phone powered?
A: It is powered by IEEE 802.3af PoE Class 2, or by a local Cisco power adapter. A PoE-capable switch port is all that is needed for most deployments.

Q: Does it support Wi-Fi, Bluetooth or key expansion modules?
A: No. The Desk Phone 9841 has no built-in Wi-Fi or Bluetooth and does not support key expansion modules (KEM). It connects over wired Ethernet.

Q: Can a PC share the phone's network connection?
A: Yes. The 2-port internal Gigabit Ethernet switch provides PC pass-through, so a computer can connect through the phone using a single network drop.

Q: Can the phone be wall mounted?
A: Yes. It can be wall mounted using the optional wall mount kit (DP-9800-WMK=).
