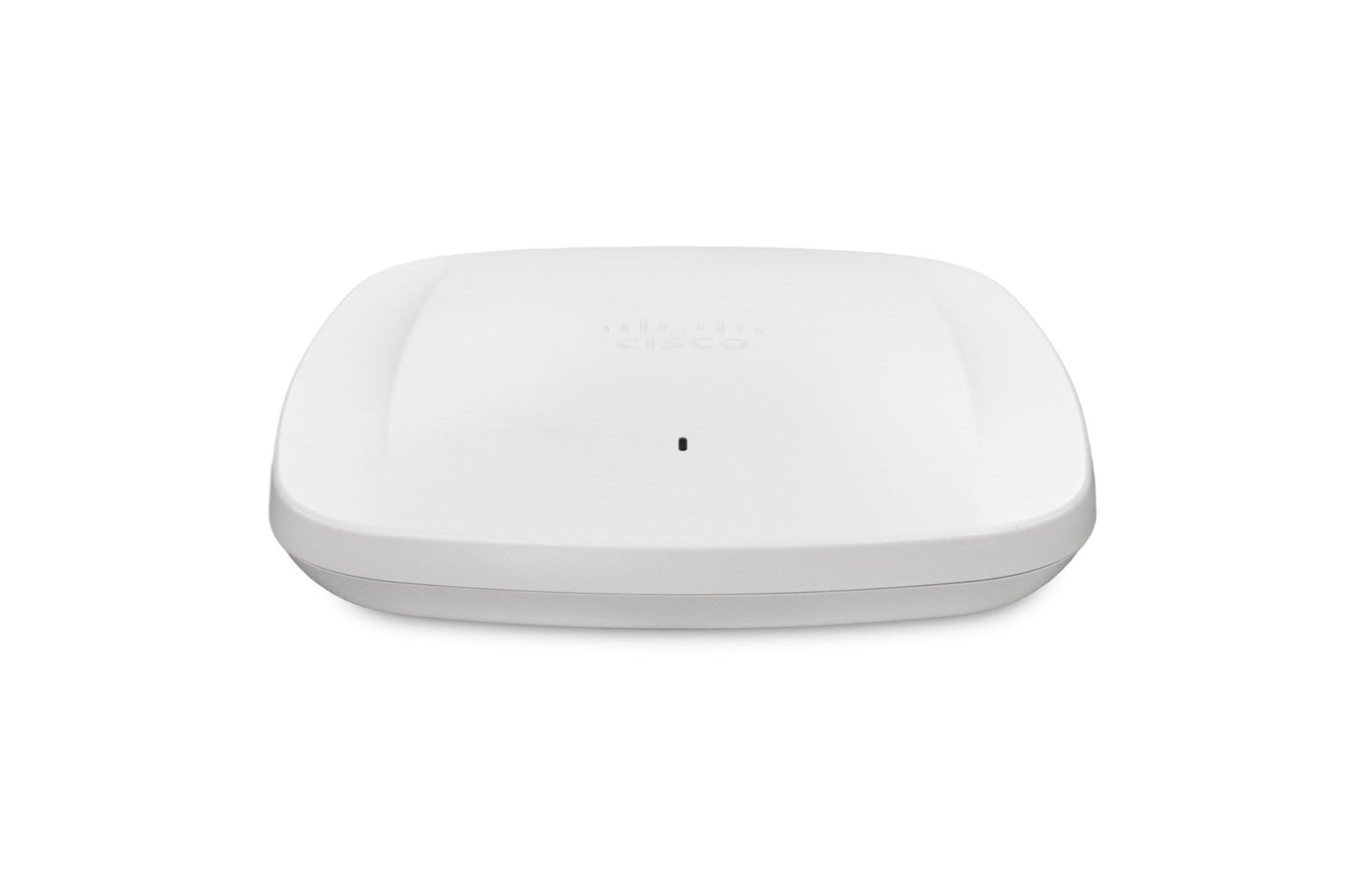

• Cisco CW9166D1-ROW Wi-Fi 6E tri-band access point with white HomePod Mini
1 1

Cisco

Cisco CW9166D1-ROW | Catalyst 9166D1 Wi-Fi 6E Directional Access Point, ROW

CW9166D1-ROW

Stock Status: Enquire

$4,747.46 inc. GST
$4,315.87 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9166D1 is a tri-band Wi-Fi 6E indoor access point with an integrated directional antenna, built for high-ceiling open spaces such as auditoriums and warehouses where external antennas would normally be needed. It belongs to the Catalyst 9166 Series and is also suited to mission-critical, high-density enterprise Wi-Fi 6E deployments.

Three 4x4:4 radios cover the 2.4, 5 and 6 GHz bands, with a dual-band XOR radio that shifts capacity between 6 GHz and a secondary 5 GHz radio. PHY data rates reach 7.78 Gbps on 6 GHz with 160 MHz channels. The directional antennas provide 6 dBi on 2.4 GHz, 6 dBi on 5 GHz and 8 dBi on the 5 GHz XOR and 6 GHz radios. A single 100M/1G/2.5G/5G Multigigabit Ethernet port carries data and power, using 802.3bt (UPOE) or 802.3at (PoE+), with a DC input also supported. This SKU is the ROW regulatory domain version, running in Catalyst (on-premises) mode. Licences are ordered separately, either through the Cisco Networking Subscription or Cisco DNA Essentials or Advantage.

The access point requires Cisco IOS XE 17.12.1 or later and is managed by a Catalyst 9800 Series Wireless Controller, physical or virtual, or by Catalyst 9000 switches running Embedded Wireless Controller in SD-Access mode. Cisco Spaces, ISE and DNA Center are supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wi-Fi 6E operation in the 6 GHz band for higher throughput, more capacity and less interference
- XOR radio shifts capacity between 6 GHz and a secondary 5 GHz radio
- Built-in directional antenna removes the need for external antennas in high-ceiling areas
- Integrated environmental sensors for air quality (TVOC), temperature and humidity
- Cisco CleanAir Pro interference detection across 2.4, 5 and 6 GHz
- UL/DL OFDMA, UL/DL MU-MIMO, BSS coloring and Target Wake Time
- Client steering moves Wi-Fi 6E clients to the 6 GHz radio
- Trust Anchor security with image signing and secure boot

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi standard: Wi-Fi 6E (802.11ax), tri-band 2.4, 5 and 6 GHz
- Radios: three 4x4:4 radios, 4 spatial streams
- XOR radio: shifts capacity between 6 GHz and a secondary 5 GHz
- Maximum PHY data rate: 7.78 Gbps (4x4, 160 MHz, 6 GHz)
- Antenna (2.4 GHz): directional, 6 dBi peak gain
- Antenna (5 GHz): directional, 6 dBi peak gain
- Antenna (5 GHz XOR and 6 GHz): directional, 8 dBi peak gain
- Ethernet: 1x 100M/1G/2.5G/5G Multigigabit (RJ-45)
- Console: management console port (RJ-45)
- USB: USB 2.0, 4.5 W
- Bluetooth: integrated BLE 5.1 radio
- Power input: 802.3bt (UPOE), 802.3at (PoE+), DC (54V)
- Maximum PoE power draw: 30.5 W (802.3bt), 25.5 W (802.3at)
- Memory: 2048 MB DRAM, 1024 MB flash
- Dimensions: 241.3 x 241.3 x 57.9 mm (without brackets)
- Weight: 1.59 kg
- Operating temperature: -20 to 50 C
- Storage temperature: -30 to 70 C
- Operating humidity: 10% to 90% (non-condensing)
- Software: Cisco IOS XE 17.12.1 or later
- Regulatory domain: ROW (Rest of World)

FAQs

Q: What does this access point need to be managed?
A: It needs Cisco IOS XE 17.12.1 or later and is managed by a Catalyst 9800 Series Wireless Controller, physical or virtual. Catalyst 9000 switches running Embedded Wireless Controller in SD-Access mode also work.

Q: Does it need a licence?
A: Yes. Licensing is ordered separately, either as Cisco Networking Subscription (Wireless Essentials or Advantage) or Cisco DNA Essentials or Advantage, and managed through a Smart Account.

Q: How is it powered?
A: It runs from 802.3bt (UPOE), 802.3at (PoE+) or a 54V DC input. Maximum draw is 30.5 W on 802.3bt and 25.5 W on 802.3at. Cisco injectors AIR-PWRINJ6=, AIR-PWRINJ7= and MA-INJ-6 are listed for use with it.

Q: Which mounting options does it work with?
A: The AIR-AP-Bracket-2 bracket and the CW-MNT-ART2-00 articulating arm are the mounting options listed for this access point.

Q: How does the CW9166D1-ROW differ from its sibling SKUs?
A: The -ROW suffix is the Rest of World regulatory domain, and this version runs in Catalyst (on-premises) mode. The Meraki cloud-managed version is the -MR SKU.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
