• Cisco 8861 IP Video Phone with Camera and Touch Screen
1 1

Cisco

Cisco CP-8865-K9 | IP Phone 8800 5in Video, Wi-Fi, Charcoal, Unified CM

CP-8865-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

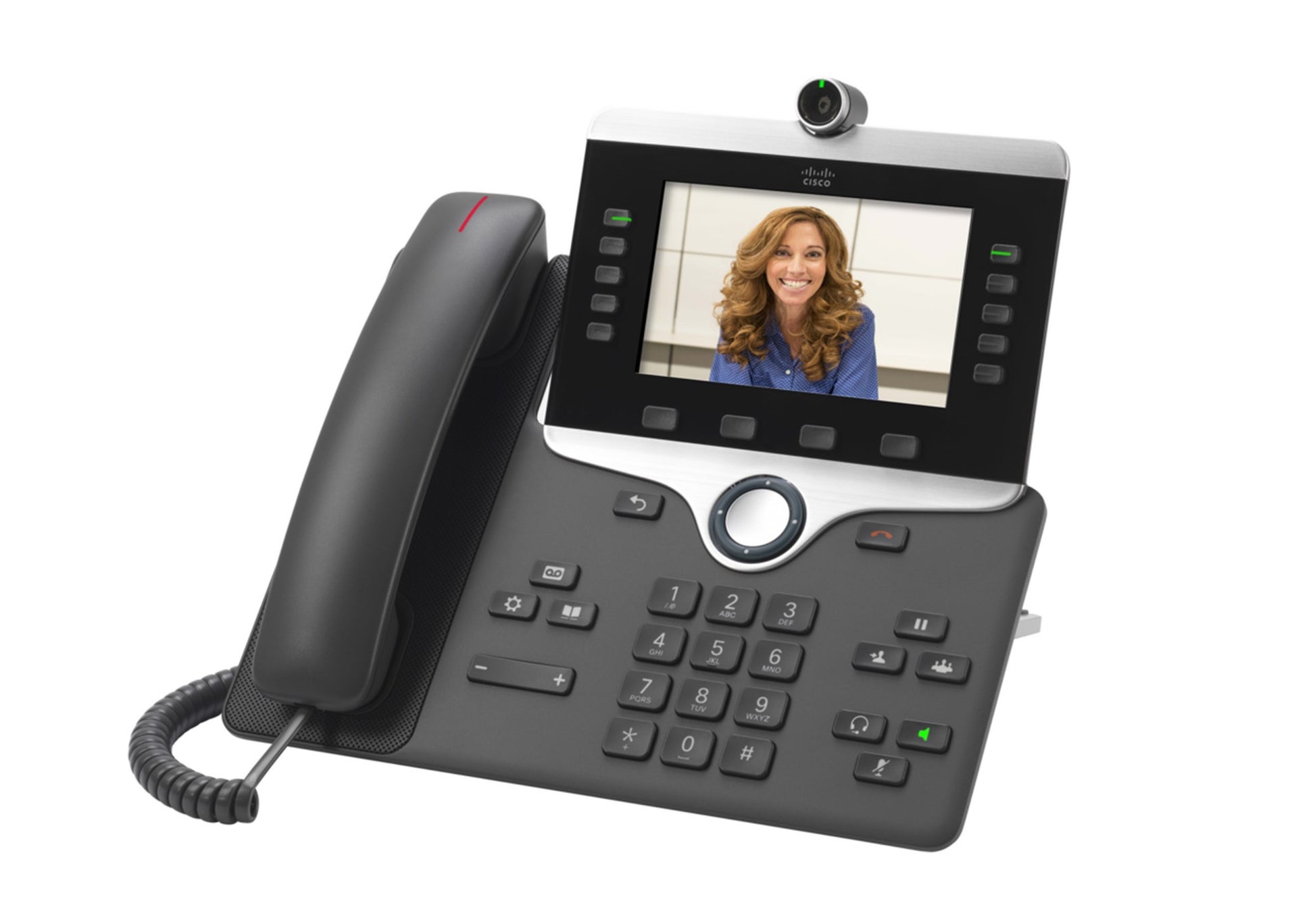

The IP Phone 8865 from the Cisco IP Phone 8800 Series is a business-class video desk phone for knowledge workers and executives in enterprise unified communications deployments. This charcoal model runs Enterprise (Unified CM) firmware and suits wired or Wi-Fi offices, as well as remote workers connecting by VPN or Cisco Expressway.

It has a 5-inch 800 x 480 WVGA backlit colour display and 720p HD video using H.264 and Cisco AVC. A built-in 2-port 10/100/1000 Gigabit Ethernet switch serves the phone and a PC. It also provides dual-band 802.11a/b/g/n/ac Wi-Fi, Bluetooth 4.1 LE + EDR Class 1 and two USB ports for charging or headsets. Five programmable line keys expand to 113 with up to three Key Expansion Modules. Power comes from IEEE PoE Class 4 (802.3af, 802.3at and UPOE compatible), or from the optional Cisco IP Phone Power Cube 4 (CP-PWR-CUBE-4) for non-PoE deployments.

The phone registers with Cisco Unified Communications Manager and requires an Enhanced User Connect License (UCL). It also works with Cisco BE 6000 and Cisco HCS, and accepts CP-8800-V-KEM Key Expansion Modules, the CP-8800-VIDEO-WMK wall-mount kit and the CP-8800-FS foot stand.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco Intelligent Proximity moves mobile call audio to the desk phone and syncs call history and contacts
- Built-in VPN client and Cisco Expressway remote access for remote workers
- Electronic hookswitch for third-party headsets via USB, AUX or Bluetooth
- Full-duplex speakerphone with DTMF masking
- Hearing Aid Compatible handset and ADA-compliant dial pad
- Supports up to three Key Expansion Modules for extra line keys
- Secure boot, 802.1x, TLS signalling and SRTP media encryption
- Wall-mountable with the optional kit, with a Kensington lock slot

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Display: 5-in. 800 x 480, 24-bit colour WVGA backlit
- Video: 720p HD video (encode and decode), H.264 and Cisco AVC
- Audio codecs: G.711 a-law and mu-law, G.722, G.729a/b, iLBC, iSAC, G.722.1, OPUS
- Ethernet switch: internal 2-port 10/100/1000BASE-T, RJ-45
- Wi-Fi: IEEE 802.11a/b/g/n/ac, dual-band 2.4 GHz and 5 GHz
- Wi-Fi operating modes: Auto (default), 2.4 GHz only, 5 GHz only
- Wireless security: WPA/WPA2 Personal and Enterprise, EAP-FAST, PEAP-MSCHAPv2, AES/TKIP
- Bluetooth: 4.1 LE, EDR Class 1 (up to 20 m), HFP and PBAP profiles
- USB: 2 ports, side 500mA at 5V, back 500mA upgradable to 2.1A at 5V
- Headset ports: RJ-9 analog wideband headset, AUX port (EHS), 3.5 mm stereo line in/out
- PoE: IEEE 802.3af/802.3at/UPOE, PoE Class 4, CDP and LLDP-PoE
- Optional power supply: Cisco IP Phone Power Cube 4 (48V DC)
- Programmable line keys: 5, up to 113 with 3 x Key Expansion Modules
- Dimensions (H x W x D): 228.78 x 257.34 x 98.39 mm, excluding foot stand
- Weight: 1.35 kg
- Operating temperature: 0 to 40 C
- Humidity: operating 10 to 90% noncondensing
- Foot stand: two-position, 35 and 50 degree viewing angles
- Colour: Charcoal
- Call control: Cisco Unified CM 8.5.1+, BE 6000, HCS

FAQs

Q: Does this phone need a licence?
A: Yes. It requires an Enhanced User Connect License (UCL) to register with Cisco Unified Communications Manager.

Q: How is the phone powered?
A: It runs on IEEE PoE Class 4 (802.3af, 802.3at or UPOE). For non-PoE deployments, use the optional Cisco IP Phone Power Cube 4 (CP-PWR-CUBE-4) with a country-specific power cord.

Q: Which call control platforms does it work with?
A: It works with Cisco Unified CM 8.5.1 and later (11.0 and later recommended), Cisco BE 6000 and Cisco HCS. This SKU runs Enterprise (Unified CM) firmware.

Q: Can I add more line keys?
A: Yes. It supports up to three CP-8800-V-KEM Key Expansion Modules, taking the line keys from 5 up to 113.

Q: What mounting and stand options are available?
A: The phone has a two-position foot stand (CP-8800-FS) with 35 and 50 degree viewing angles. The optional CP-8800-VIDEO-WMK kit allows wall mounting.
