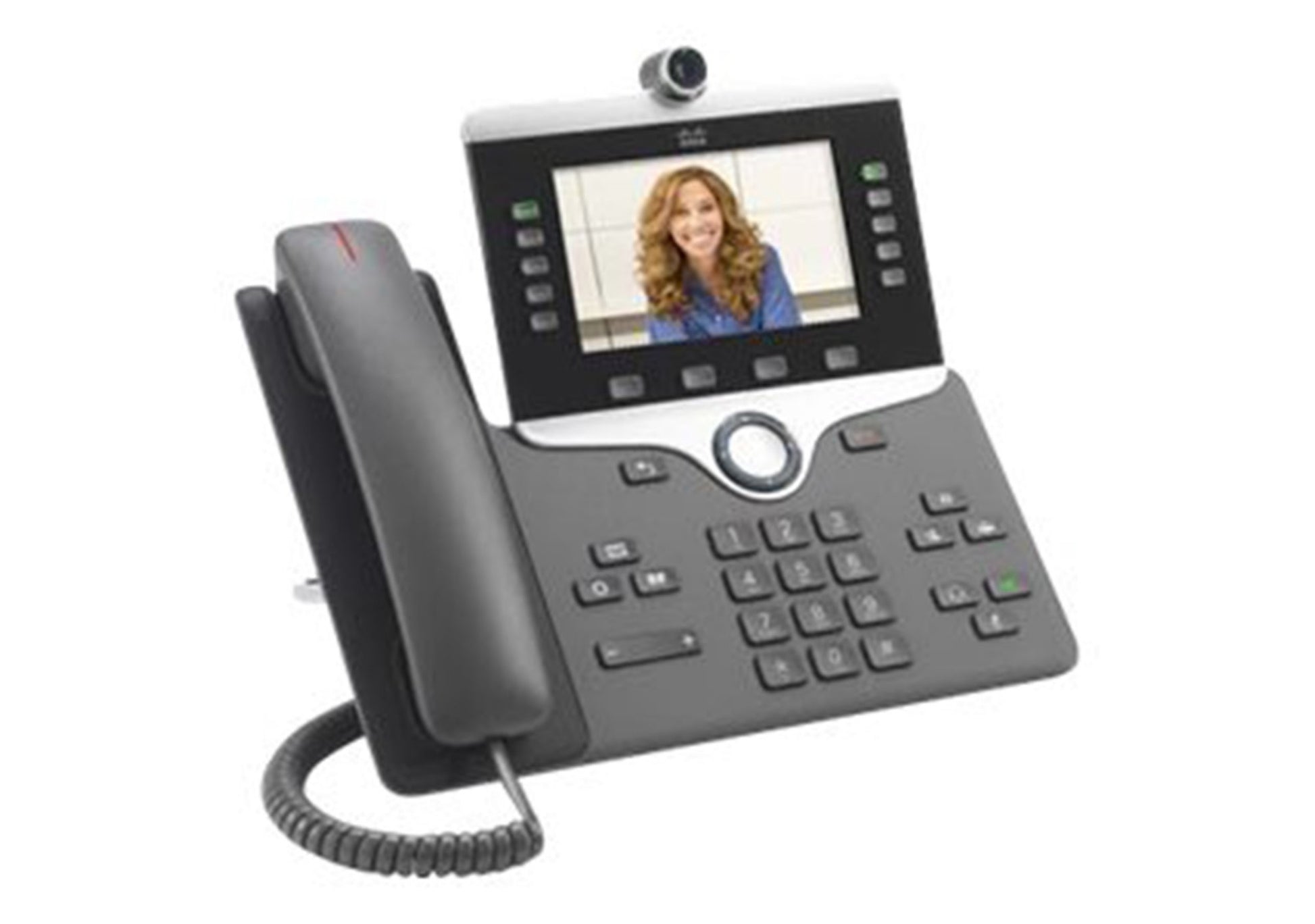

• Cisco CP-8865-3PCC-K9 IP phone with 5in VGA color display and 720p video
1 1

Cisco

Cisco CP-8865-3PCC-K9 | IP Phone 8865 Video, 5in, 3PCC Multiplatform Firmware

CP-8865-3PCC-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco IP Phone 8865 is a business-class video desk phone from the IP Phone 8800 Series, aimed at executive and knowledge-worker desktops that need HD video and voice on hosted or third-party SIP PBX platforms. This CP-8865-3PCC-K9 variant runs Multiplatform Firmware (MPP) for third-party SIP call control rather than Cisco Unified Communications Manager firmware.

It has a 5-inch 800 x 480 WVGA 24-bit colour backlit display and 720p HD video using H.264. A built-in 2-port 10/100/1000 Gigabit Ethernet switch serves the phone and a PC, and the phone also provides dual-band 802.11a/b/g/n/ac Wi-Fi and Bluetooth 4.1 LE. Two USB ports support headsets and accessories, and the phone supports up to 10 SIP lines. Power is delivered by IEEE 802.3af/802.3at PoE, or by the optional Cisco IP Phone Power Cube 4.

The phone supports up to three CP-8800-V-KEM Key Expansion Modules for 5 to 113 line buttons. The CP-8800-VIDEO-WMK wall-mount kit, the CP-8800-S-VID-BEZEL and CP-8800-B-VID-BEZEL bezels and the CP-DX-HS handset are also supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- High-fidelity wideband voice with 720p HD video
- Five programmable line keys with multicall-per-line
- Cisco Intelligent Proximity for pairing with mobile devices over Bluetooth
- Electronic hookswitch support via USB, AUX or Bluetooth for third-party headsets
- Secure boot with encrypted configuration and image authentication
- Hearing-aid-compatible handset and full-duplex speakerphone
- Optional silver bezel and wall-mount kit

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Display: 5-in. 800 x 480, 24-bit colour, WVGA backlit
- Video: 720p HD (encode and decode), H.264 and Cisco AVC
- SIP lines: Up to 10
- Firmware: Multiplatform Firmware (MPP) for third-party SIP call control
- Audio codecs: G.711 a-law/mu-law, G.722, G.729a/b, iLBC, iSAC, G.722.1, G.722.2, OPUS
- Ethernet switch: Internal 2-port 10/100/1000BASE-T (IEEE 802.3i/u/ab)
- Wi-Fi: 802.11a/b/g/n/ac WLAN client
- Bluetooth: 4.1 LE, EDR Class 1, up to 20 m (66 ft); HFP and PBAP profiles
- USB: Two ports; side 500mA at 5V (2.5W); back 500mA, upgradable to 2.1A at 5V (10.5W)
- Headset ports: Analog RJ-9 headset, AUX port for EHS, 3.5 mm stereo line in/out
- PoE: IEEE 802.3af, 802.3at, UPOE compatible; CDP and LLDP-PoE
- Optional power supply: Cisco IP Phone Power Cube 4 (48V AC-to-DC)
- Key Expansion Module: Up to 3 KEMs (5 to 113 line buttons)
- Dimensions (H x W x D): 228.78 x 257.34 x 98.39 mm (excluding foot stand)
- Weight: 1.35 kg (2.97 lb)
- Casing: Polycarbonate ABS textured plastic
- Operating temperature: 0 to 40 C
- Nonoperating temperature: -10 to 60 C
- Humidity: Operating 10-90% noncondensing; nonoperating 10-95% noncondensing
- Foot stand: Two-position (35 and 50 degrees); wall-mountable with optional kit
- Physical security: Kensington Security Slot
- Network protocols: SIP, SDP, IPv4/IPv6, DHCP, DNS, TFTP, 802.1Q/p VLAN, CDP/LLDP
- Security: Secure boot, device/image authentication, MIC/LSC certificates, 802.1x EAP

FAQs

Q: Does this phone work with Cisco Unified Communications Manager?
A: No. The 3PCC-K9 variant ships with Multiplatform Firmware (MPP) for third-party SIP call control platforms, and Cisco Unified Communications Manager firmware is not used on this variant.

Q: How is the phone powered?
A: It is powered by IEEE 802.3af/802.3at PoE. The optional Cisco IP Phone Power Cube 4 (CP-PWR-CUBE-4, 48V) can be used where PoE is not available.

Q: Can I add Key Expansion Modules?
A: Yes. The phone supports up to three CP-8800-V-KEM Key Expansion Modules, giving 5 to 113 line buttons in total.

Q: Which mounting kit and bezels does it support?
A: The CP-8800-VIDEO-WMK wall-mount kit is supported, along with the CP-8800-S-VID-BEZEL and CP-8800-B-VID-BEZEL bezels. The foot stand has two positions, 35 and 50 degrees.

Q: Can I connect a PC through the phone?
A: Yes. The built-in 2-port 10/100/1000 Gigabit Ethernet switch has one port for the phone and one for a PC.
