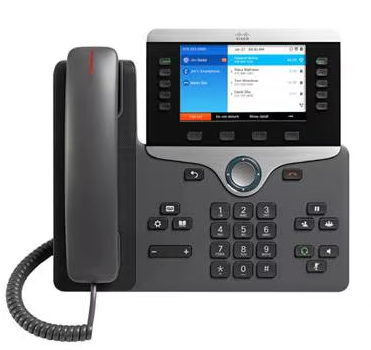

• Gray cisco cp-8861-k9 ip phone with 5-line wvga color touchscreen wifi 5 bluetooth and numeric keypad
1 1

Cisco

Cisco CP-8861-K9 | IP Phone 8861 5-Line Wi-Fi Bluetooth, Charcoal

CP-8861-K9

2 in stock

$666.36 inc. GST
$605.78 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco IP Phone 8861 is a business-class SIP desk phone from the Cisco IP Phone 8800 Series, built for Cisco call control in enterprise and campus deployments. This charcoal model runs Cisco Unified Communications Manager firmware rather than multiplatform (3PCC) firmware. It suits users who want a Wi-Fi capable phone, Bluetooth headset support or mobile device integration, with the option to add Key Expansion Modules for heavier call handling.

The 8861 provides five programmable line keys and a 5-inch widescreen VGA (800 x 480) 24-bit colour backlit display. A built-in 10/100/1000 Gigabit Ethernet switch serves the phone and a co-located PC, and dual-band 802.11a/b/g/n/ac Wi-Fi and Bluetooth 3.0 EDR are integrated. Two USB ports support headsets and device charging, and Cisco Intelligent Proximity pairs the phone with a mobile device for audio path moving, call history sync and contact sync. Wideband codecs include G.711, G.722, G.722.2, G.729ab, iLBC, iSAC and OPUS. It requires an Enhanced User Connect License (UCL) to register with Cisco Unified Communications Manager.

It is powered by IEEE PoE Class 4 (802.3af and 802.3at compatible), or by the optional Cisco IP Phone Power Cube 4 where PoE is not available. It works with Cisco Unified Communications Manager 12.5 and later, Unified CME 10.0 and later, and Cisco HCS 8.6.2 and later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Five programmable line keys supporting multiple directory numbers or features such as speed dial, with multicall-per-line
- Cisco Intelligent Proximity for audio path moving, call history sync and contact sync with a paired mobile device over Bluetooth
- Built-in Gigabit Ethernet switch for the phone and a co-located PC, with separate VLANs for each
- Built-in dual-band 802.11a/b/g/n/ac Wi-Fi
- Bluetooth headset support with electronic hookswitch control, also through USB or auxiliary port
- Two USB ports for headsets and for charging mobile devices
- Wideband audio with a Hearing Aid-Compatible handset and an ADA-compliant dial pad
- Enterprise security including secure boot, signed images, 802.1x, and TLS/SRTP encryption

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Programmable line and feature keys: 5
- Display: 5-inch widescreen VGA (800 x 480 pixel), 24-bit colour, backlit
- Integrated switch: 10/100/1000
- Headset support: RJ-9 jack, USB, Bluetooth
- Wi-Fi: IEEE 802.11a/b/g/n/ac, dual-band 2.4/5 GHz
- Bluetooth: 3.0 EDR Class 1 (up to 20 m), HFP and PBAP supported
- USB: Two ports, side USB port provides up to 500 mA at 5 V (2.5 W)
- Audio codecs: G.711 (A-law and u-law), G.722, G.722.2, G.729ab, iLBC, iSAC, OPUS
- Network protocols: SIP, SDP, IPv4 and IPv6, DHCP, DNS, TFTP, HTTPS, VLAN, RTP/RTCP, CDP, LLDP-MED
- PoE: IEEE Power over Ethernet Class 4, compatible with 802.3af and 802.3at
- Power input rating: 0.917 A, 48 V DC
- Optional power supply: Cisco IP Phone Power Cube 4 (CP-PWR-CUBE-4) for non-PoE deployments
- Dimensions (H x W x D): 229.1 x 257.34 x 40 mm, excluding foot stand
- Weight: 1.19 kg
- Operating temperature: 0 to 40 C
- Non-operational temperature: -10 to 60 C
- Humidity: operating 10 to 90% non-condensing
- Wi-Fi security: WPA/WPA2 Personal and Enterprise, EAP-FAST, PEAP-MSCHAPv2
- Fast secure roaming: 802.11r (FT), Cisco CKM
- Physical security: Kensington Security Slot (K-Slot) compatible
- Key Expansion Module support: up to 3 modules, 108 additional line/feature keys

FAQs

Q: Does the Cisco IP Phone 8861 need a licence?
A: Yes. It requires an Enhanced User Connect License (UCL) to connect to Cisco Unified Communications Manager.

Q: How is the 8861 powered?
A: It uses IEEE PoE Class 4, compatible with 802.3af and 802.3at. Where PoE is not available, the optional Cisco IP Phone Power Cube 4 (CP-PWR-CUBE-4) can be used with a country AC power cord.

Q: Which call control platforms does it work with?
A: It supports Cisco Unified Communications Manager 12.5 and later, Unified CME 10.0 and later, and Cisco HCS 8.6.2 and later. This SKU runs Cisco Unified Communications Manager firmware, not multiplatform (3PCC) firmware.

Q: Can I add Key Expansion Modules?
A: Yes. It supports up to three Cisco IP Phone 8800 Key Expansion Modules (CP-8800-A-KEM), adding 108 line or feature keys. With modules attached, use 802.3at PoE or the Power Cube 4, as 802.3af PoE is not supported.

Q: Does it support Wi-Fi and Bluetooth headsets?
A: Yes. It has built-in dual-band 802.11a/b/g/n/ac Wi-Fi and Bluetooth 3.0 EDR with HFP and PBAP profiles. Headsets can also connect via the RJ-9 jack or USB.
