• Cisco 8841 5-line SIP desk phone with 5-inch color display
1 1

Cisco

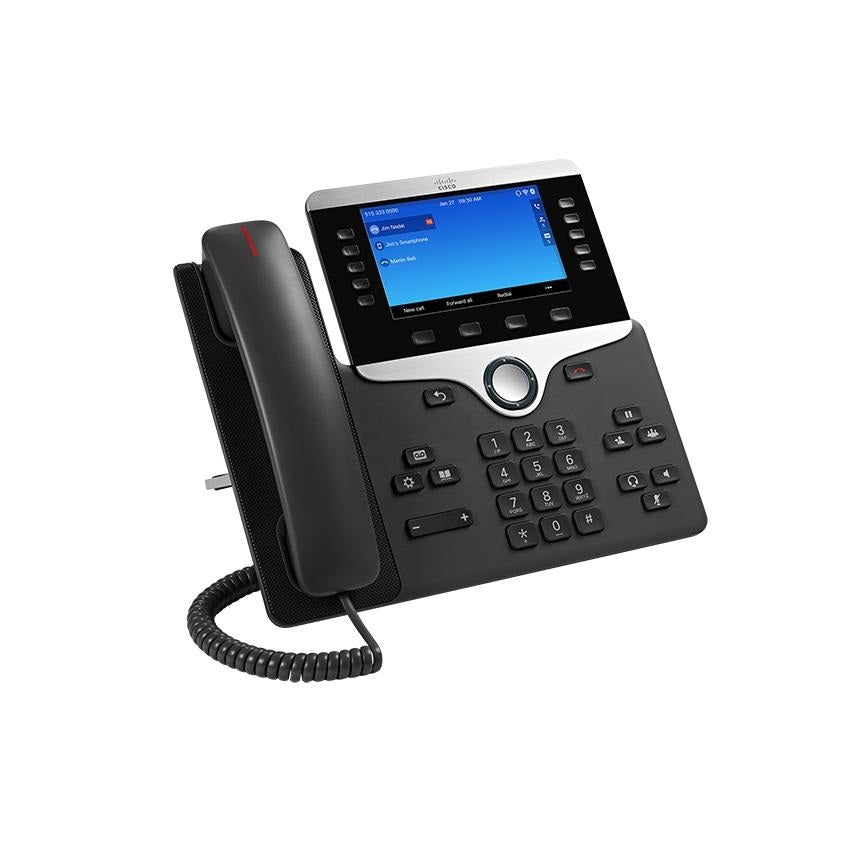

Cisco CP-8841-3PCC-K9 | IP Phone 8841 5-Line SIP Desk Phone, PoE, 3PCC

CP-8841-3PCC-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The IP Phone 8841 is a business-class 5-line desktop SIP phone from the Cisco IP Phone 8800 Series, built for knowledge workers and offices on hosted or open SIP UCaaS platforms. This 3PCC SKU ships with multiplatform phone firmware for Webex Calling, Webex Calling Carrier, Cisco BroadWorks and other approved SIP platforms, rather than Cisco Unified Communications Manager firmware.

It has five programmable line keys, a 5-inch 800 x 480 backlit WVGA colour display, a wideband handset and a full-duplex speakerphone. It supports up to 10 SIP line registrations with G.711, G.722, G.722.2, G.729ab, iLBC, iSAC and OPUS codecs. A built-in 2-port 10/100/1000 Ethernet switch lets a PC share the same network connection, and the phone is powered by IEEE 802.3af/802.3at PoE (Class 2). An RJ-9 analog headset port and an AUX port for electronic hookswitch control are provided.

The multiplatform firmware is certified for Webex Calling and Cisco BroadWorks, and is also certified for Centile, Metaswitch and Ribbon Kandy. Service-side subscriptions from your calling provider are separate.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multiplatform phone firmware for Webex Calling, Webex Calling Carrier, Cisco BroadWorks and approved UCaaS platforms
- Interoperability tested with Asterisk, Centile, Metaswitch and Ribbon Kandy
- Wideband audio with acoustic echo cancellation and dynamic noise reduction
- Zero Touch Provisioning, plus auto-provisioning via TFTP, HTTP or HTTPS
- Security with 802.1x, TLS 1.2, SRTP media encryption, FIPS 140-2 support and encrypted configuration files
- Busy lamp field, shared line appearance, call park, multicast paging and hot-desking (some features are platform-dependent)
- Built-in Gigabit switch for a co-located PC
- Energy Star qualified, built using post-consumer recycled plastic

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Display: 5-inch 800 x 480, 24-bit colour WVGA, backlit
- Line keys: 5 programmable line keys
- SIP line registrations (MPP firmware): up to 10
- Protocol support (MPP firmware): SIP
- Audio codecs: G.711 (A-law and u-law), G.722, G.722.2, G.729ab, iLBC, iSAC, OPUS
- Ethernet switch: internal 2-port 10/100/1000BASE-T, RJ-45, single LAN connection for phone and PC
- Headset: analog wideband-capable RJ-9 port, plus AUX port for electronic hookswitch
- Handset: wideband, hearing-aid compatible (HAC)
- Speakerphone: full-duplex
- Power over Ethernet: IEEE 802.3af/802.3at, Class 2, with CDP and LLDP-PoE
- Power input rating: 48V DC, 0.917A
- Optional power supply: Cisco IP Phone Power Cube 4 (AC to 48V DC) for non-PoE deployments
- Network features: SIP, SDP, IPv4/IPv6, DHCP, DNS, TFTP, HTTPS, VLAN, RTP/RTCP, CDP, LLDP-MED
- Security: secure boot, 802.1x (EAP-FAST, EAP-TLS), TLS, SRTP, HTTPS, SSH server, SSL VPN client
- Dimensions (H x W x D): 229.1 x 257.34 x 40 mm, excluding foot stand
- Weight (with handset): 1.17 kg
- Operating temperature: 0 to 40 C
- Humidity (operating): 10 to 90% non-condensing
- Foot stand: two-position (35 and 50 degrees), removable for wall mounting

FAQs

Q: Does this phone work with Cisco Unified Communications Manager?
A: No. This 3PCC SKU runs multiplatform phone firmware and is intended for Webex Calling, Cisco BroadWorks and other approved open SIP platforms, not Cisco Unified Communications Manager.

Q: Does it need a per-device licence?
A: No per-device licence is listed for the multiplatform firmware. Any subscription from your calling provider, such as Webex Calling or a BroadWorks or UCaaS service, is separate.

Q: How is the phone powered?
A: It is powered by IEEE 802.3af or 802.3at PoE (Class 2) with CDP and LLDP-PoE power negotiation. For non-PoE deployments, the optional Cisco IP Phone Power Cube 4 provides 48V DC from an AC outlet.

Q: Which calling platforms is it certified for?
A: The multiplatform firmware is certified for Webex Calling, Webex Calling Carrier and Cisco BroadWorks (releases 19sp1 to 23sp1), as well as Centile (Istra SP 9.2), Metaswitch (9.3) and Ribbon Kandy. Asterisk 1.8 and later is interoperability tested.

Q: Can a PC share the phone's network connection?
A: Yes. The built-in 2-port 10/100/1000 Ethernet switch lets a PC connect through the phone, so a single LAN cable serves both devices.
