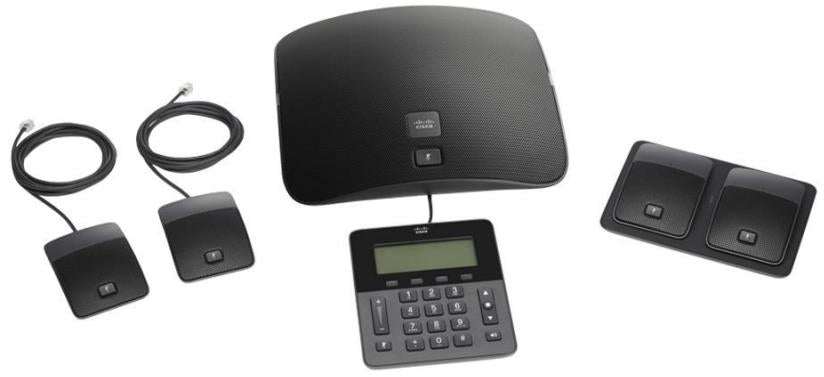

• Cisco IP Conference Phone 8831 with detachable panel and PoE
1 1

Cisco

Cisco CP-8831-3PCC-K9 | 8831 3PCC SIP IP Conference Phone, PoE, 360 Audio

CP-8831-3PCC-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 8831 is a wideband HD audio IP conference phone with 360-degree coverage, designed for conference rooms and executive offices up to 1140 sq ft (106 sq m). This 3PCC SIP variant works with third-party call control platforms and includes a base unit with a detachable control panel, so the display can be positioned without moving the speakerphone. It connects over 10/100 Ethernet with IEEE 802.3af PoE and supports daisy-chaining of two base units for larger rooms.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wideband acoustics with a two-element speaker for clear full-room audio
- Detachable control panel so the display can be viewed without moving the unit
- Expanded room coverage by daisy-chaining two units
- Optional wired or DECT wireless extension microphones
- SIP signalling with TLS device authentication and signalling encryption (AES-128)
- SRTP media encryption (AES-128)
- DHCP client or static IP configuration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 3.5-inch monochrome backlit graphical display, 396 x 162 pixels
- 10/100 Ethernet port
- IEEE 802.3af PoE, Class 3 (optional CP-PWR-CUBE-3 power supply, required for daisy-chain)
- Full-duplex two-way wideband (G.722) speakerphone with two-element speaker
- Frequency response 160 Hz to 20 kHz, +/-3 dB
- 92 dB SPL peak output
- 4 programmable soft keys
- Supports 2 external wired microphones and 2 wireless (DECT) microphones (sold separately)
- Daisy-chain of two base units supported
- Codecs: G.711, G.722, G.729a, G.729ab, iLBC
- SIP signalling for third-party call control
- Coverage for rooms up to 1140 sq ft (106 sq m)
- Operating temperature -5°C to 40°C

FAQs

Q: What does 3PCC mean for this conference phone?
A: 3PCC means third-party call control. This model runs SIP firmware so it can register with non-Cisco call control platforms rather than Cisco Unified Communications Manager.

Q: How is the 8831 powered?
A: It is powered over Ethernet using IEEE 802.3af PoE, Class 3. An optional CP-PWR-CUBE-3 power supply is available and is required when daisy-chaining two base units.

Q: Can I extend microphone coverage in larger rooms?
A: Yes. The phone supports up to 2 external wired microphones and 2 wireless DECT microphones, sold separately. Two base units can also be daisy-chained to widen coverage.

Q: What audio codecs does it support?
A: The 8831 supports G.711, G.722 wideband, G.729a, G.729ab and iLBC codecs.

Q: What network connection does it use?
A: It has a 10/100 Ethernet port and supports both DHCP client and static IP configuration.
