Cisco

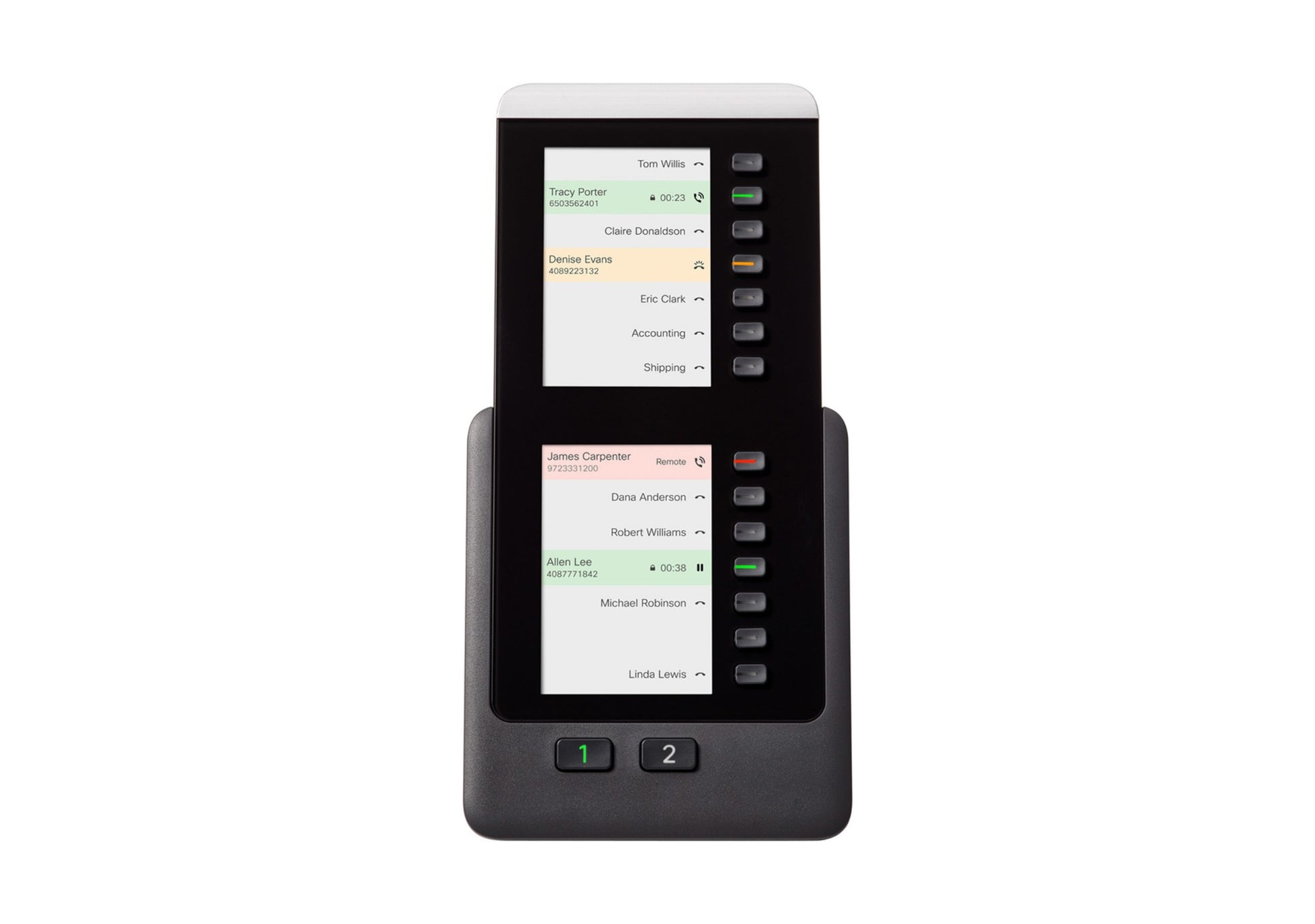

Cisco CP-8800-A-KEM | IP Phone 8800 Key Expansion Module, 28 Keys, Colour LCD

CP-8800-A-KEM

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco IP Phone 8800 Series Audio Key Expansion Module is a sidecar add-on for Cisco 8851, 8851NR and 8861 desk phones. It suits administrative assistants and anyone who needs to see the status of many lines at once, and it adds extra directory-number, speed-dial and programmable feature keys beside the phone.

The module provides 14 illuminated physical keys, which become 28 using the two illuminated page buttons. A 3.5-inch backlit TFT colour LCD (16-bit colour, 320 x 480 effective resolution) sits alongside the keys, and the display can be articulated to match the angle of the attached phone. Key lights show line state: off for available, green for in use, red for in use on a shared line, and flashing amber for ringing. Up to 3 modules can be fitted to an 8861 and up to 2 to an 8851 or 8851NR.

It has no power supply of its own and draws 48 VDC at up to 117 mA from the attached phone. It needs phone firmware 12.0.1.11 or later and a phone registered to Cisco Unified Communications Manager 10.5(2) or later, or Cisco Unified SRST 11.0 or later. No licence is required for the module itself.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Illuminated keys show line status: off when available, green when in use, red when in use on a shared line, flashing amber when ringing
- Illuminated page buttons show which page is in focus and flash amber when a hidden page has alerting or held calls
- Keys can be set as directory numbers, speed dials or programmable feature keys
- LCD brightness is adjustable from the attached phone's settings menu
- Display articulates to match the angle of the attached phone
- Sleeps and wakes together with the attached phone to save power
- Designed as a call-coverage tool rather than an operator or attendant console

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Key expansion module (audio KEM)
- Physical keys: 14 illuminated keys, 28 using page buttons
- Page buttons: 2 illuminated page buttons
- Display: 3.5-inch graphical TFT colour LCD with backlight
- Colour depth: 16-bit
- Effective resolution: 320 x 480 pixels
- Maximum modules per phone: 3 on 8861, 2 on 8851/8851NR
- Power: 48 VDC, 117 mA maximum, supplied by the attached phone
- Dimensions (H x W x D): 229 x 113 x 40 mm
- Weight: 448 g
- Operating temperature: 0 to 40 C
- Storage temperature: -10 to 60 C
- Relative humidity: 10 to 95%
- Phone firmware: 12.0.1.11 and later
- Call control: Cisco Unified Communications Manager 10.5(2) and later, Cisco Unified SRST 11.0 and later

FAQs

Q: Does the module need its own licence?
A: No licence is required for the module itself. It needs a compatible Cisco 8800 phone registered to Cisco Unified Communications Manager 10.5(2) or later, or to SRST 11.0 or later.

Q: How is the module powered?
A: It has no power supply of its own and draws power from the attached phone (48 VDC, 117 mA maximum). An 8851 with one module works on 802.3af, 802.3at or Power Cube 4. An 8851 with two modules needs Power Cube 4. An 8861 with 1 to 3 modules needs 802.3at PoE or Power Cube 4.

Q: Which phones does it work with?
A: It is the audio key expansion module for the Cisco IP Phone 8851, 8851NR and 8861, running phone firmware 12.0.1.11 or later.

Q: How many modules can I attach to one phone?
A: Up to 3 modules on an 8861 and up to 2 on an 8851 or 8851NR.

Q: Is there a wall mount option?
A: Cisco offers the CP-8800-A-KEM-WMK= wall mount kit for a single module on 8851 and 8861 phones.
