Cisco

Cisco CP-860S-K9 | Wireless 860S Wi-Fi IP Phone, 5.2" Touch, Barcode Scanner

CP-860S-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

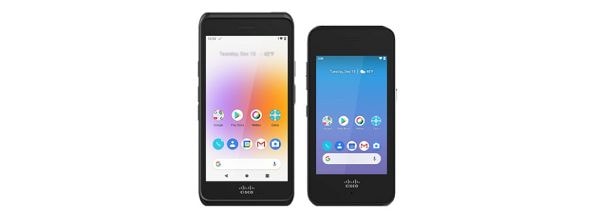

The Cisco Webex Wireless Phone 860S is a ruggedised Android-based Wi-Fi handset with a 5.2-inch touchscreen and an integrated barcode scanner. It is built for healthcare, retail and manufacturing environments that need a drop- and water-resistant mobile device for voice, collaboration and scanning, in the Cisco Wireless Phone 800 Series.

The handset runs Android OS 13 on an octa-core 64-bit processor with 4 GB of RAM and 64 GB of storage. Dual-band Wi-Fi (2.4 and 5 GHz, 802.11 a/b/g/n/d/h/i/k/r/u/ac) and Bluetooth 5.0 LE handle connectivity. The 3000 mAh battery is hot-swappable, giving up to 12 hours of talk time and up to 120 hours of standby. IP68 and MIL-STD-810G ratings cover dust, water and drops. This SKU is the scanner model supplied as phone and battery only, with no charger or cable.

Call control is through Cisco Unified Communications Manager 11.5(1)SU8, 12.5(1)SU3 or 14.0(1), or Webex Calling with firmware 1.6 or later. Management is available through Cisco Meraki Systems Manager or a third-party EMM platform.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Android operating system lets administrators control and manage deployed applications
- Integrated barcode scanner with configuration app for retail, healthcare and manufacturing use
- IP68-rated and MIL-STD-810G drop-tested for harsh environments
- Hot-swappable battery allows changes in the field without a device restart
- Call control through Cisco Unified Communications Manager or Webex Calling
- Management through Cisco Meraki Systems Manager or third-party EMM
- AES encryption and SRTP for secure voice over Wi-Fi
- Push-to-talk multicast support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Display: 5.2-inch 1080x1920 Gorilla glass multi-touch
- Scanner: Integrated barcode scanner
- Wi-Fi: Dual-band 2.4/5 GHz, 802.11 a/b/g/n/d/h/i/k/r/u/ac
- Bluetooth: 5.0 LE
- Operating system: Android OS 13
- Processor: 1.8/2.2 GHz octa-core, 64-bit
- Memory: 4 GB RAM
- Storage: 64 GB
- Battery: Hot-swappable, 3000 mAh
- Battery life: Up to 12 hours talk, up to 120 hours standby
- Charging time: 3.5 hours
- Camera: 13 MP rear with flash, 8 MP front
- Interfaces: USB-C, 3.5 mm audio, NFC, fingerprint scanner
- Sensors: Accelerometer, gyroscope, magnetometer, ALS/proximity
- Durability: IP68, MIL-STD-810G (78 drops from 1.8 m onto steel)
- Dimensions: 153 x 76 x 12 mm
- Weight: 214 g with scanner
- Operating temperature: 0 to 40 C
- Storage temperature: -30 to 60 C
- Relative humidity: 10% to 95% (non-condensing)
- Codecs: Opus, G.711a, G.711u, G.722, G.729a
- Protocol: SIP

FAQs

Q: Does the 860S need a licence to register to Cisco Unified Communications Manager?
A: Yes. It requires an Enhanced User Connect License (UCL) or Cisco Unified Workspace License (UWL) to register to Cisco Unified Communications Manager. CP-860S-K9 itself includes no licence. Webex Calling is the alternative call control option, with firmware 1.6 or later.

Q: How is the 860S charged?
A: It charges via a USB-C charger and cable, or the desktop and multi-charger bases CP-860-DCHR= and CP-860-MCHR=. The battery is 3000 mAh and takes about 3.5 hours to charge. This SKU is the phone, scanner and battery only, so the charger and cable are ordered separately.

Q: Which call control platforms does it work with?
A: Cisco Unified Communications Manager 11.5(1)SU8, 12.5(1)SU3 and 14.0(1), and Webex Calling with firmware 1.6 or later.

Q: Which accessories are available for the 860S?
A: Compatible accessories include the CP-860S-CASE= scanner case with clip, the CP-860S-CLIP= scanner clip, the CP-860-DCHR= desktop charger with CP-860-DCHR-PSU= power supply, and the CP-860-MCHR= multi-charger base.

Q: How does CP-860S-K9 differ from the standard 860?
A: The 860S is the scanner model and adds an integrated barcode scanner. This SKU is supplied as phone and battery only, with no charger or cable.
