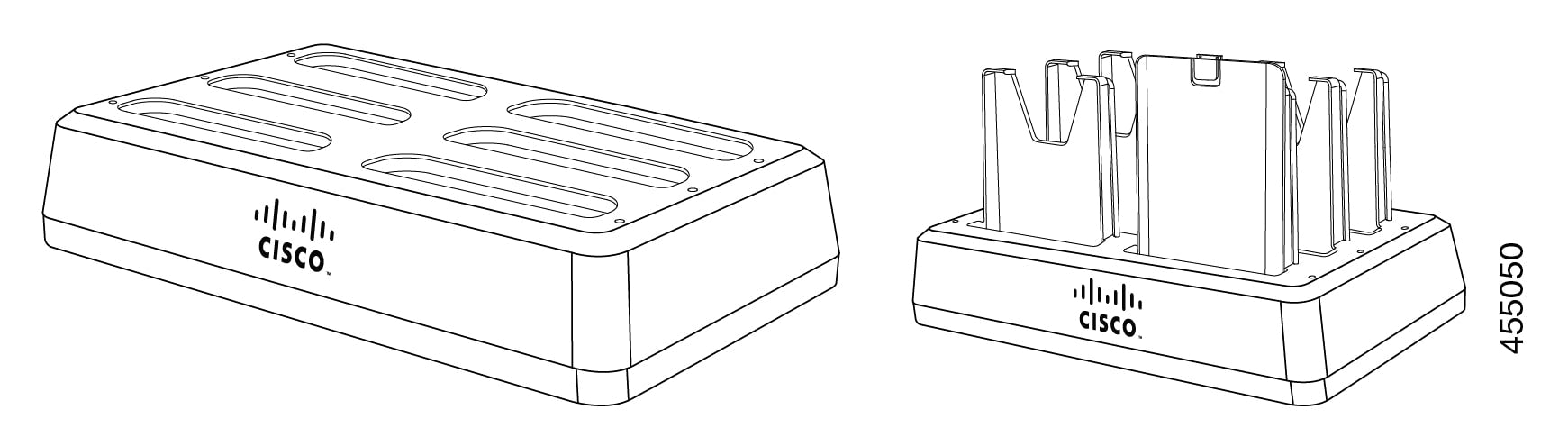

• Cisco CP-860-MCHR multi-bay USB charging station for handsets
1 1

Cisco

Cisco CP-860-MCHR | Wireless Phone 860 Multi-Charger Base, 4 Bays, PSU

CP-860-MCHR

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Wireless Phone 860 Multi-Charger Base is a desktop charging station for the Cisco Wireless Phone 800 Series. It suits enterprise sites such as healthcare, retail and warehouses, where phones and spare batteries need to be charged in bulk at a single station.

The base provides four module bays and takes any combination of the 860 Desktop Dual Charger Module (CP-860-DCHR) and the 860 Desktop Battery Charger Module (CP-860-BAT-DCHR). Fitted with four Dual Charger Modules it charges four phones and four batteries, with two Dual and two Battery modules it charges two phones and six batteries, and with four Battery modules it charges eight batteries. This SKU is the base with its power supply only, so the charger modules are ordered separately. It includes its own AC power supply (model FSP090-ABAN3), so no separate power supply is needed.

It works with Cisco Wireless Phone 860 and 860S handsets and CP-860-BAT spare batteries. It is not for the 840 series, which uses its own multi-chargers. No licence or subscription is required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular design with dual (phone and battery) and battery-only charger modules that snap into the base
- Mix and match modules to build a purpose-built configuration, for example 3 phones and 5 batteries
- Four module bays on a single desktop base
- Charges 860/860S handsets and spare batteries from one station
- Red and green LEDs blink at power-up
- Use only the power supply supplied with the base

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: CP-860-MCHR
- Product type: Desktop multi-charger base
- Module bays: up to 4 desktop charger modules, any configuration
- Compatible modules: Cisco 860 Desktop Dual Charger Module, Cisco 860 Desktop Battery Charger Module
- Capacity with four Dual Charger Modules: four phones and four batteries
- Capacity with two Dual and two Battery Charger Modules: two phones and six batteries
- Capacity with four Battery Charger Modules: eight batteries
- Power supply: model FSP090-ABAN3, no separate power supply required
- Supported handsets: Cisco Wireless Phone 860 and 860S
- Supported batteries: CP-860-BAT
- Phone and battery charge time on wall power: 3.5 hours
- Licensing: none required

FAQs

Q: Does this base come with charger modules?
A: No. This SKU is the base with its power supply and four module bays. The Dual Charger Module (CP-860-DCHR) and Battery Charger Module (CP-860-BAT-DCHR) are ordered separately.

Q: How many phones and batteries can it charge?
A: With four Dual Charger Modules it charges four phones and four batteries. With four Battery Charger Modules it charges eight batteries. Mixed layouts such as two Dual and two Battery modules charge two phones and six batteries.

Q: Does it need a separate power supply?
A: No. The base includes its own AC power supply (model FSP090-ABAN3). Use only the supplied power supply with the base.

Q: Which phones does it work with?
A: It is for Cisco Wireless Phone 860 and 860S handsets and CP-860-BAT batteries. It is not for the 840 series, which has its own multi-chargers.

Q: Does it need a licence or subscription?
A: No. It is a passive charging accessory and requires no licence or subscription.
