• Cisco CP-860-DCHR white dual-slot charging dock for 860 phone
1 1

Cisco

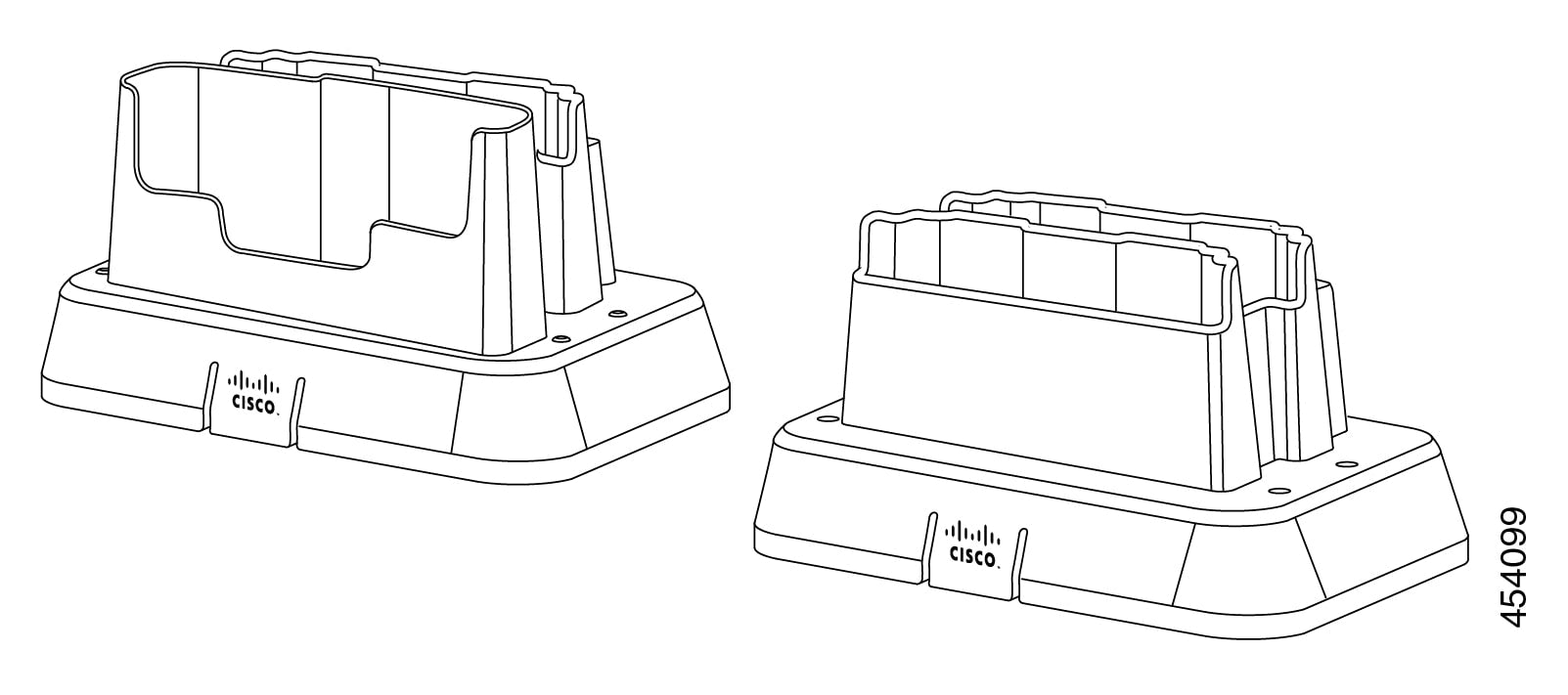

Cisco CP-860-DCHR | Wireless Phone 860 Dual-Slot Desktop Charger

CP-860-DCHR

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Wireless Phone 860 Dual-Slot Desktop Charger is a stand-alone charging cradle for the Cisco Wireless Phone 800 Series. It is built for enterprise and healthcare voice users who rely on hot-swappable spare batteries, so a charged battery is always ready to swap in between shifts.

Two slots let it charge one Cisco Wireless Phone 860 and one spare 860 battery at the same time. It can also charge a phone or a battery on its own. On wall power, a phone with its battery and a standalone battery each take around 3.5 hours to charge, and times vary with overall battery health and the number of full discharge cycles. The charger needs the CP-860-DCHR-PSU= power supply (Cisco 860 Desktop Charger WW Power Supply) to operate.

It works with the Cisco Wireless Phone 860 and 860S and the CP-860-BAT= spare battery. Units can be combined with the CP-860-MCHR= multi-charger base to build a larger multi-charging setup, for example 3 phones and 5 batteries using CP-860-MCHR=, 3 x CP-860-DCHR= and 1 x CP-860-BAT-DCHR=. The 840 series uses its own chargers and is not charged by this unit.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Charges a phone and a spare battery at the same time, so a charged battery is always ready to swap
- Can also charge a phone or a battery on its own
- Combines with the CP-860-MCHR= multi-charger base for larger multi-charging setups
- Supports hot-swappable battery workflows for healthcare and enterprise voice users
- Alternative to the USB-C charger and cable supplied with the 860 bundle

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Charge capacity: 1 x Cisco Wireless Phone 860 plus 1 x spare 860 battery
- Compatible phones: Cisco Wireless Phone 860 and 860S
- Compatible battery: CP-860-BAT= (swappable, 3040 mAh)
- Charging time, phone with battery: 3.5 hours on wall power
- Charging time, standalone battery: 3.5 hours on wall power
- Power supply: CP-860-DCHR-PSU= (Cisco 860 Desktop Charger WW Power Supply) required
- 860 AC adapter input power: 100 to 240 VAC, approximately 0.5 A, 50 to 60 Hz
- 860 phone operating temperature: -10 to 50 C
- 860 phone storage temperature: -40 to 70 C
- 860 phone relative humidity: 10% to 95% (noncondensing)

FAQs

Q: Does this charger need a separate power supply?
A: Yes. It needs the CP-860-DCHR-PSU= (Cisco 860 Desktop Charger WW Power Supply) to operate.

Q: Which phones and batteries does it charge?
A: It charges the Cisco Wireless Phone 860 and 860S and the CP-860-BAT= spare battery. It does not charge the 840 series, which uses the CP-840-DUAL-DCHR= and CP-840-PH-DCHR= chargers.

Q: How long does it take to charge?
A: A phone with its battery takes about 3.5 hours on wall power, and a standalone battery also takes about 3.5 hours. Times vary with battery health and the number of full discharge cycles.

Q: Can I build a larger charging station with it?
A: Yes. It can be combined with the CP-860-MCHR= multi-charger base. One example setup is 3 phones and 5 batteries using CP-860-MCHR=, 3 x CP-860-DCHR= and 1 x CP-860-BAT-DCHR=.

Q: Do I need a licence to use the charger?
A: No licence is needed for the charger itself. The Cisco Wireless Phone 840 and 860 phones need an Enhanced User Connect License (UCL) or Cisco Unified Workspace License (UWL) to register to Cisco Unified Communications Manager.
