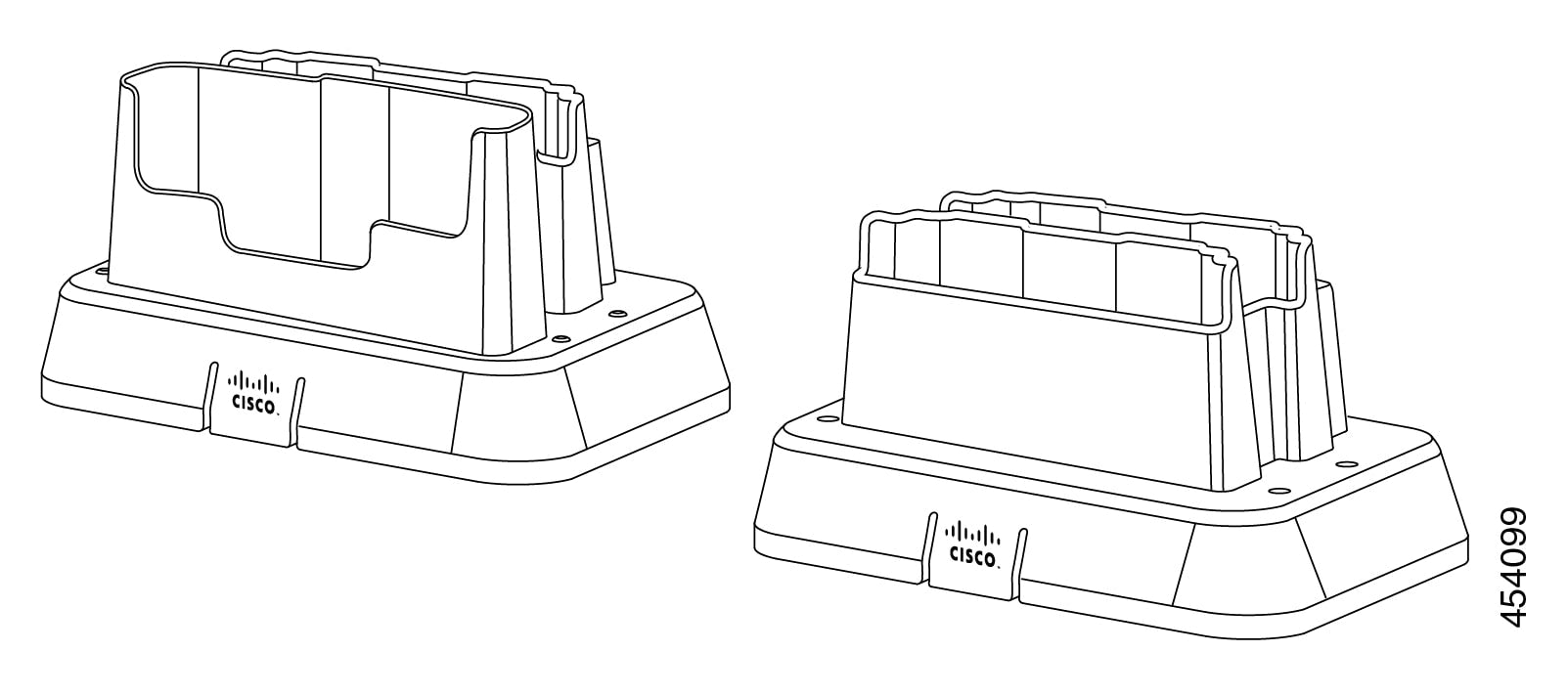

• Cisco CP-860-BAT-DCHR 2-bay white desktop battery charger dock
1 1

Cisco

Cisco CP-860-BAT-DCHR | Wireless Phone 860 2-Bay Battery Charger, Desktop

CP-860-BAT-DCHR

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco CP-860-BAT-DCHR is a 2-bay desktop charger from the Cisco Wireless Phone 860 accessory range. It charges two spare 860 batteries at the same time, with no phone in the cradle, so shift-based teams in healthcare, retail and warehouse environments can keep fresh batteries ready for hot-swapping.

The charger holds two Cisco 860 hot-swappable 3000 mAh batteries (CP-860-BAT=). Standalone battery charging takes about 3.5 hours on wall power. It is a batteries-only charger, so it does not charge a handset. For phone-plus-battery charging, pair it with the CP-860-DCHR= desktop charger.

The unit requires the separate CP-860-DCHR-PSU= power supply (860 Desktop Charger WW Power Supply). It can also be added to a CP-860-MCHR= multi-charger configuration, for example 3 phones plus 5 batteries using one CP-860-MCHR=, three CP-860-DCHR= and one CP-860-BAT-DCHR=. It is intended for the 860 and 860S, not the 840 series.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Charges two spare 860 batteries at the same time so users can swap in a fresh battery without waiting
- Supports the hot-swappable battery design of the 860 for continuous device uptime during battery changes
- Works alongside CP-860-DCHR= phone and battery chargers to build a custom charging setup
- Can be added to a CP-860-MCHR= multi-charger base configuration
- Compact desktop form factor for nurse stations, stockrooms and charging points

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: CP-860-BAT-DCHR=
- Product type: Desktop battery charger
- Charge capacity: 2 batteries (batteries only, no phone charging)
- Compatible battery: Cisco 860 hot-swappable battery, 3000 mAh (CP-860-BAT=)
- Standalone battery charge time: about 3.5 hours on wall power
- Required power supply: CP-860-DCHR-PSU= (WW power supply), ordered separately
- System input power: 100 to 240 VAC, approximately 0.5A, 50 to 60 Hz
- Multi-charger compatibility: can be combined with CP-860-MCHR=
- Operating temperature: 0 to 40 C
- Storage temperature: -30 to 60 C
- Relative humidity: 10% to 95% non-condensing

FAQs

Q: Does this charger need a separate power supply?
A: Yes. It requires the CP-860-DCHR-PSU= (Cisco 860 Desktop Charger WW Power Supply), which is ordered separately.

Q: Can it charge the phone as well as batteries?
A: No. This is a batteries-only, 2-bay charger. To charge a phone and a spare battery together, use the CP-860-DCHR= desktop charger.

Q: Which batteries does it charge?
A: It charges the Cisco 860 hot-swappable 3000 mAh battery (CP-860-BAT=). It is not intended for the 840 series, which uses the CP-840-DUAL-DCHR= charger.

Q: How long does it take to charge a battery?
A: A standalone 860 battery takes about 3.5 hours to charge on wall power.

Q: Does it need a licence?
A: No. The charger itself needs no licence. The 840 and 860 phones need an Enhanced User Connect License or Unified Workspace License to register to Cisco Unified Communications Manager.
