Cisco

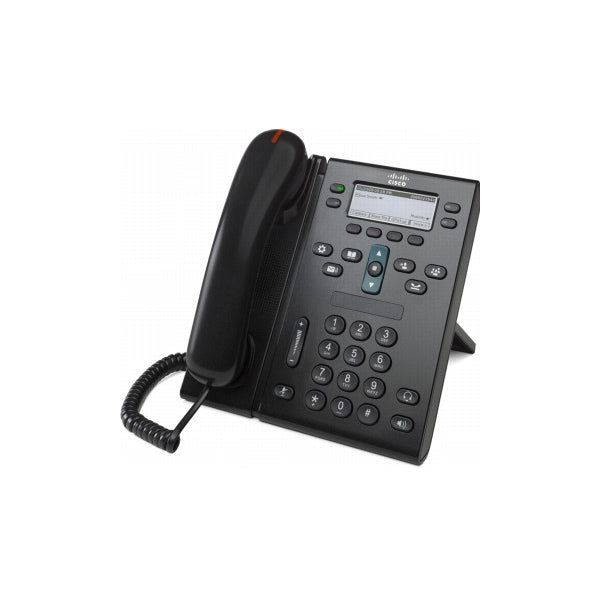

Cisco CP-6945-CL-K9 | 4-line SIP/SCCP, 10/100/1000 2-port switch, PoE 802.3af, G.722 HD, 396x162 LCD, RJ-9; Charcoal; Slimline handset

Cisco CP-6945-CL-K9 | 4-line SIP/SCCP, 10/100/1000 2-port switch, PoE 802.3af, G.722 HD, 396x162 LCD, RJ-9; Charcoal; Slimline handset

SKU:CP-6945-CL-K9

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Description

The 6945 delivers 4-line VoIP with Gigabit PC pass-through via a built-in 2-port 10/100/1000 switch, wideband HD audio, and a backlit monochrome display for clear status at a glance. PoE 802.3af simplifies desk setups with single-cable power and data. This configuration is Charcoal with the slimline handset.

Features

- Gigabit 2-port switch maintains high-speed PC connectivity
- Backlit monochrome LCD with context-aware soft keys
- HD-wideband audio and full‑duplex speakerphone
- 802.3af PoE for single-cable power and data
- SIP or SCCP firmware for flexible call control
- Security hardening with TLS, SRTP, and 802.1X
- RJ‑9 headset interface for wired headsets
- Slimline handset for a lighter, modern profile

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What differentiates the 6945 from the 6941?
A: The 6945 includes a 2‑port Gigabit Ethernet switch, while the 6941 has a 2‑port 10/100 switch. Other core calling features are similar.

Q: Is a wall‑mount option available?
A: Yes, a compatible wall‑mount bracket can be used for vertical installations.

Q: Does it support HD audio?
A: Yes. It supports G.722 wideband audio along with G.711 and G.729 codecs.

Q: Can I use this with a third‑party SIP PBX?
A: Yes, when loaded with SIP firmware and configured for your SIP platform.

Q: Does the slimline handset change audio quality?
A: No. The slimline option primarily changes the physical feel and weight; audio capabilities remain the same.

Technical Specifications

- Lines: 4 programmable line/feature keys
- Signaling: SIP and SCCP (Skinny) firmware options
- Display: 396 × 162 pixel monochrome backlit LCD with 4 soft keys
- Switch ports: 2x 10/100/1000 Gigabit Ethernet (phone + PC)
- Power: IEEE 802.3af PoE (optional local PSU, sold separately)
- Audio: Wideband G.722, G.711a/u, G.729a/b; full‑duplex speakerphone
- Headset: RJ‑9 wired headset port
- Security: TLS signaling, SRTP media, 802.1X supplicant
- QoS: 802.1p, 802.1Q VLAN tagging, DSCP
- Indicators: Tricolor message waiting indicator (MWI) LED
- Mounting: Desk stand (2‑position) or wall mount (bracket optional)
- Color/Handset: Charcoal, slimline handset
