Cisco CP-68KEM-3PCC | IP Phone 6800 Key Expansion Module, 14 Keys, 3PCC

CP-68KEM-3PCC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

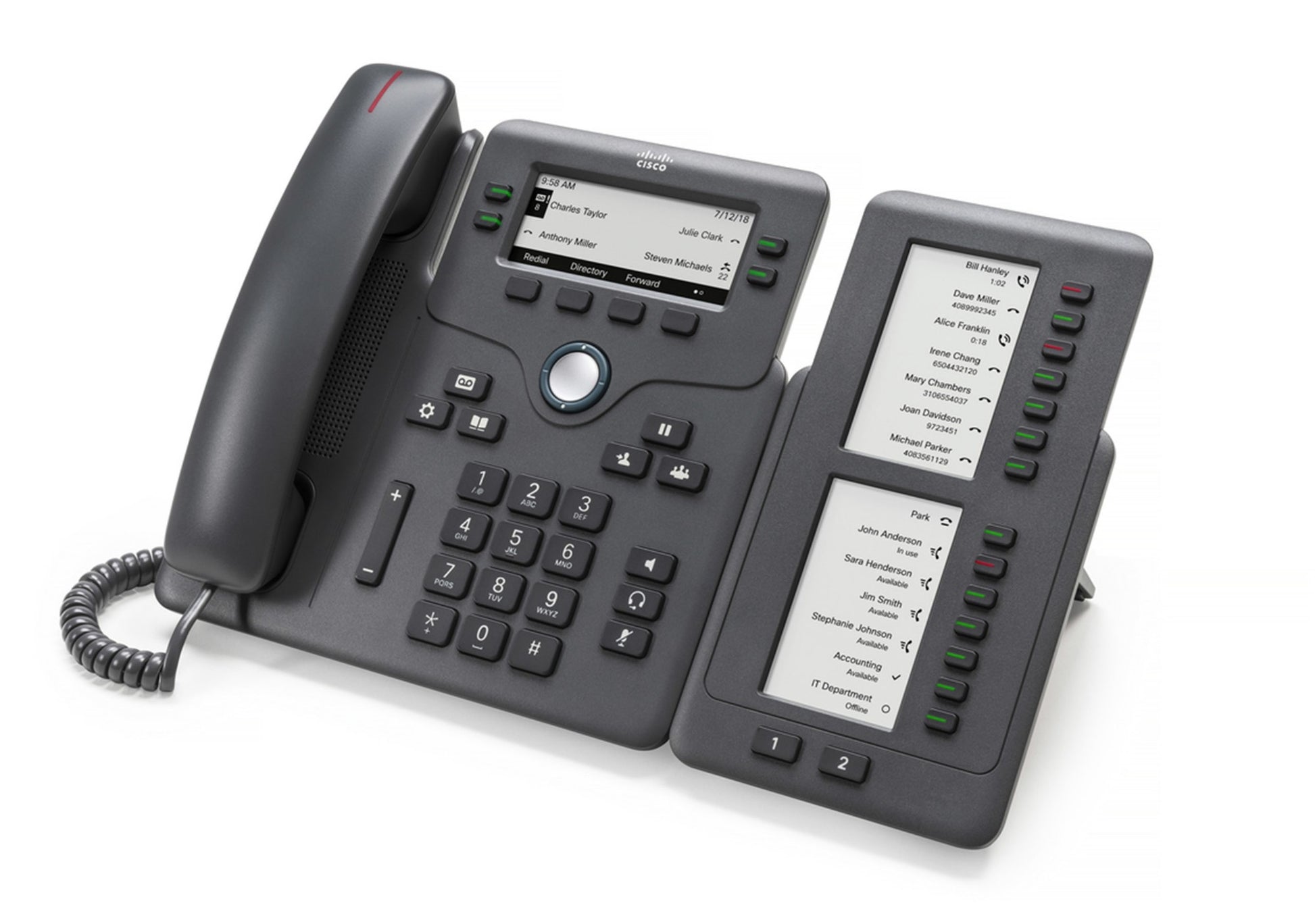

The Cisco IP Phone 6800 Key Expansion Module for Multiplatform firmware is a side-car accessory that adds extra programmable line and feature keys to a Cisco IP Phone 6851. It suits reception desks, attendants and executive or assistant positions that need one-touch line access, speed dials and presence monitoring on a phone connected to a supported third-party SIP call control platform.

The module provides 14 illuminated physical buttons, expanding to 28 using the two page keys. Two 3.5-inch grayscale backlit LCD displays with 160 x 270 resolution show the button labels. The 3PCC (Multiplatform) variant supports the Programmable Line Key function, so calls can be monitored and answered from the module, though not initiated from it. One module is supported per 6851 phone.

The module has no local power supply and draws power from the attached phone, which can be powered by 802.3af PoE or the optional 6800 5V power adapter. It enters Power Save Mode together with the phone. No separate licence or subscription is required. It measures 207 x 113 x 42 mm and weighs 320 g.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds 14 physical line and feature keys, or 28 using the two page keys, to the Cisco IP Phone 6851
- Programmable Line Key (PLK) support for monitoring and answering calls
- Tri-colour illuminated buttons and page buttons show line status at a glance
- Two grayscale backlit LCD displays with on-screen button labels
- Draws power from the attached phone, so no extra power adapter is needed
- Follows the phone into Power Save Mode and wakes with it
- Connects side by side with the phone for a compact desk footprint

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: Key Expansion Module for Cisco IP Phone 6800 Series (Multiplatform firmware)
- Physical buttons: 14 (28 using page keys)
- Page buttons: 2
- Display: Two 3.5-in (9 cm) grayscale backlit LCD displays, 160 x 270 resolution
- SIP registrations: None (calls can be monitored and answered via PLK but not initiated from the module)
- Compatible phone: Cisco IP Phone 6851 with Multiplatform firmware
- Maximum modules per phone: 1
- Dimensions (H x W x D): 207 x 113 x 42 mm (8.15 x 4.45 x 1.65 in)
- Weight: 320 g (11.5 oz)
- Casing: Polycarbonate/ABS textured plastic
- Power: No local power supply, powered from the attached 6851 phone
- Operating temperature: 0 to 40 C (32 to 104 F)
- Non-operational temperature shock: -10 to 60 C (14 to 140 F)
- Operating humidity: 10% to 90% non-condensing
- Non-operating humidity: 10% to 95% non-condensing
- Button illumination: Green steady = idle/configured, Red steady = in use or parked call, Amber flashing = configuration error, Off = not configured
- Page button illumination: Green steady = page in focus, Amber flashing = page not in focus with alerting or on-hold calls, Off = page not in focus

FAQs

Q: Which phone does this expansion module work with?
A: It is designed for the Cisco IP Phone 6851 running Multiplatform (3PCC) firmware, and the 6851 supports one expansion module.

Q: Does it need its own power supply?
A: No. The module is powered by the attached 6851 phone, which can run from 802.3af PoE (Class 2) or the optional 6800 5V DC power adapter.

Q: Do I need a licence or subscription to use it?
A: No separate licence or subscription is required. The phone runs Multiplatform firmware and connects to a supported third-party call control platform.

Q: Can I place calls from the keys on the module?
A: The module supports the Programmable Line Key function, so calls can be monitored and answered from it. It holds no SIP registrations, so calls cannot be initiated from the module itself.

Q: How many buttons does it provide?
A: It has 14 physical buttons, which expand to 28 using the two page keys.
