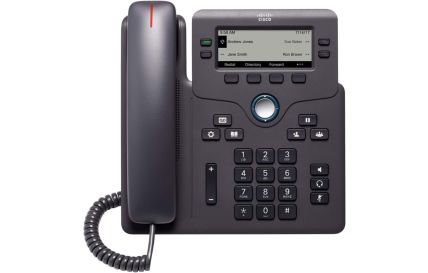

• Cisco CP-6841-3PW-AU-K9 4-line SIP desk phone with black keypad and display
1 1

Cisco

Cisco CP-6841-3PW-AU-K9 | IP Phone 6800 4-Line SIP Desk Phone, AU/NZ Power Adapter

CP-6841-3PW-AU-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco IP Phone 6841 is a 4-line SIP desk phone from the IP Phone 6800 Series with Multiplatform Firmware. It suits business desks moving from analog or digital telephony to IP or cloud calling, and is a good fit for home offices that have no PoE switch. It is designed for Cisco Webex Calling, Webex Calling Carrier, Cisco BroadWorks and approved UCaaS and SIP platforms.

The phone supports four SIP line registrations and has a 3.5 inch white backlit greyscale display at 396 x 162 pixels. Two 10/100/1000BASE-T RJ-45 ports provide a LAN connection and a pass-through port for a downstream device such as a PC. Audio is handled by a full-duplex speakerphone, an RJ-9 handset (narrowband or wideband, hearing-aid compatible) and an analog wideband-capable RJ-9 headset port. This SKU is supplied for Australia and New Zealand with a 5V DC, 2A AU/NZ power adapter. PoE is not supported, so the phone runs on wall power only.

Security includes 802.1X authentication, SRTP media encryption with AES-128 or AES-256, TLS signalling encryption and image authentication. The 6841 does not support the 6800 Key Expansion Module. An optional 6800 Series wall-mount kit is available separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- High-fidelity voice for Cisco Webex Calling, Webex Calling Carrier, Cisco BroadWorks and approved UCaaS platforms
- Programmable Line Keys configurable by the user or administrator
- Backlit indicators on audio path keys, mute, select, line keys and message waiting
- Hold/resume, transfer, conference, messaging and directory keys
- Full-duplex speakerphone with DTMF tone masking in speakerphone mode
- Single-position foot stand, removable for wall mounting
- Remote Configuration supported on 6800 MPP phones with no separate SKU needed
- Scrollable access to calling features and text-based XML applications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Signalling protocol: Session Initiation Protocol (SIP)
- Lines supported: 4 SIP registrations
- Display: 3.5 in. (9 cm), 396 x 162 pixels, white backlit greyscale
- Ethernet: 10/100/1000BASE-T via 2 x RJ-45 (LAN and PC pass-through)
- Ethernet cabling: Cat 3/5/5e/6 for 10 Mbps, Cat 5/5e/6 for 100 Mbps, Cat 3/5/5e/6 (4 pairs) for 1000 Mbps
- Handset: narrowband or wideband via RJ-9, hearing-aid compatible
- Headset: analog wideband-capable RJ-9 port
- Speakerphone: full-duplex
- Power: 5V DC, 2A, AU/NZ country-specific adapter
- PoE: not supported, wall power only
- Weight: 615 g excluding foot stand, handset and package
- Casing: polycarbonate ABS textured plastic
- Operating temperature: 0 to 40 C
- Non-operating temperature shock: -10 to 60 C
- Operating humidity: 10% to 90% non-condensing
- Non-operating humidity: 10% to 95% non-condensing
- QoS: Cisco Discovery Protocol and 802.1Q/p, configurable VLAN ID
- Security: 802.1X, SRTP (AES-128/256), TLS signalling (AES-128/256), image authentication, encrypted configuration files
- Configuration: static IP or DHCP client
- Compliance: CE, UL/CSA/EN/IEC/AS/NZS 60950, FCC Part 15 Class B, AS/NZS CISPR32 Class B, AS/ACIF S004, AS/ACIF S040, NZ PTC 220

FAQs

Q: Does this phone need a licence?
A: No separate phone licence is required. Calling-service subscriptions such as Webex Calling, or a SIP PBX, are separate from the phone itself.

Q: Does it support PoE?
A: No. The 6841 is powered only by its 5V DC, 2A AU/NZ power adapter, so it does not need a PoE switch.

Q: Which call control platforms does it work with?
A: It runs Cisco Multiplatform firmware for SIP platforms including Cisco Webex Calling, Cisco BroadWorks and approved UCaaS and SIP platforms.

Q: Can I add a Key Expansion Module?
A: No. The 6800 Key Expansion Module attaches to the 6851 only and is not supported on the 6841.

Q: Can it be wall mounted?
A: Yes. The foot stand is removable, and an optional 6800 Series wall-mount kit is sold separately.
