Cisco

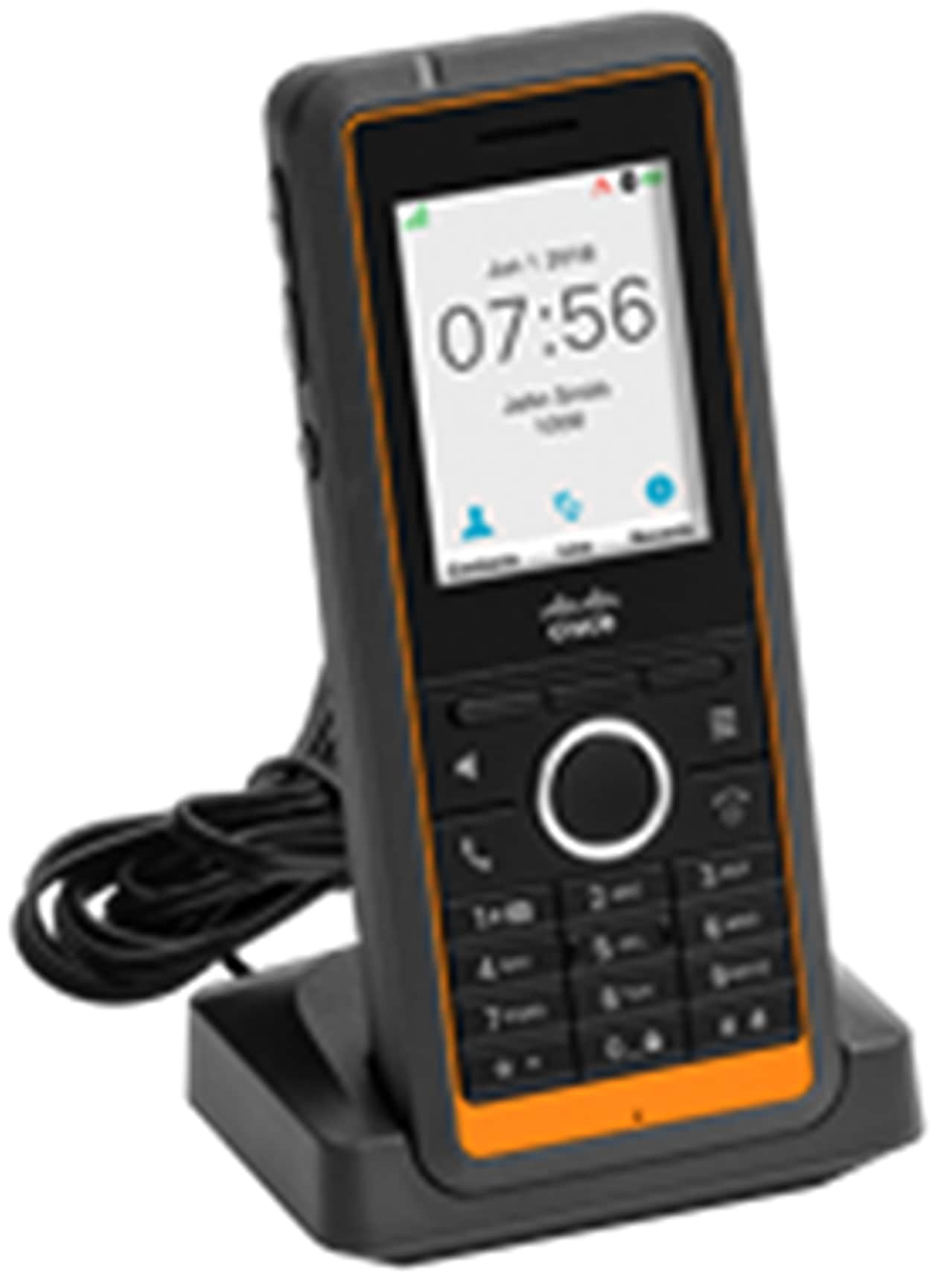

Cisco CP-6825-RGD-K9 | IP DECT 6825 Ruggedized IP65 Handset, No Power Adapter

CP-6825-RGD-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The IP DECT 6825 Ruggedized Handset is a cordless DECT IP phone in the Cisco IP DECT 6800 Series, built for mobile voice in dusty or moist environments such as warehouses, industrial sites and healthcare or hospitality back-of-house areas. It carries an IP65 rating, meaning it is dust tight and protected against water projected from a nozzle, with a polycarbonate ABS textured casing.

The handset has a 2.0 inch 240 x 320 pixel 64K TFT colour display with a backlit keypad, a dedicated emergency alarm key, Bluetooth LE 4.1 headset support and a 3.5 mm wired headset jack. It supports 2 SIP lines, HD audio (G.722) and G.726 codecs, CAT-iq 2.1 security and a full-duplex speakerphone. A rechargeable Li-Ion battery gives up to 17 hours of narrowband talk time (12 hours wideband) and 200 hours idle, with a 6 hour charge time in the cradle. This SKU is the ruggedized variant without a power adapter, so a country-specific AC-to-DC adapter is sourced separately.

It is designed to work with Cisco IP DECT DBS-110 single-cell and DBS-210 multi-cell base stations and the RPT-110 repeater. It runs Multiplatform Phone Firmware and needs a supported call control platform such as Webex Calling, Cisco BroadWorks, Asterisk or Metaswitch. The CP-6825-BAT= battery and CP-6825-HC= handset cradle are the matching accessories.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP65 ruggedized design for dusty or moist environments
- High resolution colour display with backlit keypad keys
- Bluetooth LE 4.1 headset support alongside a 3.5 mm wired headset jack
- Emergency button for inter-network notifications
- Built-in site survey tool with green, yellow and red signal strength indication
- Works with Webex Calling, Webex Calling Carrier, Cisco BroadWorks, Asterisk and Metaswitch
- Wideband HD audio and full-duplex speakerphone
- Password-protected handset, secure call and TLS support
- Clips to a belt, fits in a pocket and is wall-mountable

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ruggedized rating: IP65, dust tight and protected against water projected from a nozzle
- Display: 2.0 in. (5.0 cm), 240 x 320 pixels, 64K TFT; 3-colour MWI LED
- Keys: 28 total keys including 3 soft keys, five-way navigation, answer/end call keys and 1 alarm key on top
- Headset: Bluetooth LE 4.1; 3.5 mm wired headset jack
- Full-duplex speakerphone: Yes (HD audio speakerphone)
- Lines supported: 2 lines (SIP registrations)
- Codecs: G.722 (HD audio), G.726 (narrowband)
- Hearing aid compatibility: HAC compliant - FCC part 68 and Australia S040
- Security: CAT-iq 2.1 security support
- Battery type: Rechargeable Lithium Ion
- Talk time: 17 hours (narrowband), 12 hours (wideband)
- Idle time: 200 hours
- Cradle charging time: 6 hours
- Cradle power requirements: 5V/2A, USB Type-A; AC-to-DC power adapter not included in this SKU
- DECT frequency bands: 1880-1900 MHz (EU/APAC; AU/NZ reduced power 22 dBm); 1920-1930 MHz (US/Canada)
- Dimensions (H x W x D): 117 x 46 x 20 mm
- Weight: 86 g
- Casing: Polycarbonate ABS textured plastic
- Operating temperature: 0 to 45 C
- Humidity: Operating 10% to 90% non-condensing; non-operating 10% to 95% non-condensing
- Wall mountable: Yes, mount ordered separately

FAQs

Q: Does this handset need a licence or subscription?
A: No separate licence or subscription is specified for the handset itself. It runs Multiplatform Phone Firmware and needs a supported call control platform such as Webex Calling, Cisco BroadWorks, Asterisk or Metaswitch.

Q: How is this handset powered and charged?
A: It uses a rechargeable Li-Ion battery charged in the cradle, which is powered at 5V/2A via USB Type-A. A full charge takes about 6 hours. This SKU is the no power adapter variant, so a country-specific AC-to-DC adapter is needed separately.

Q: Which base stations does it work with?
A: It is designed for the Cisco IP DECT DBS-110 single-cell and DBS-210 multi-cell base stations, plus the RPT-110 repeater. The DBS-110 supports up to 30 SIP registrations per unit, and a DBS-210 system scales to 254 base stations and 1000 SIP registrations.

Q: How does this differ from the standard IP DECT 6825 handset?
A: This variant is ruggedized with an IP65 rating, making it dust tight and resistant to water jets, and it does not include a power adapter. It adds a dedicated emergency alarm key on top of the handset.

Q: Which accessories are compatible with it?
A: The CP-6825-BAT= replacement battery and the CP-6825-HC= handset cradle are matched accessories. The cradle is also compatible with the 6823 handset.
