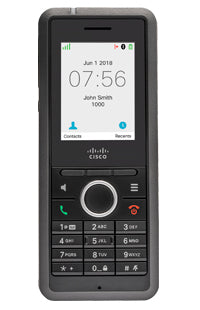

• Cisco CP-6823-3PC-BUN-AU DECT base and 6823 handset bundle with black silver design
1 1

Cisco

Cisco CP-6823-3PC-BUN-AU | IP DECT 6823 Handset and DBS-110 Base, AU/NZ, MPP

CP-6823-3PC-BUN-AU

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco IP DECT 6823 bundle pairs one 6823 handset and charging cradle with a DBS-110 single-cell DECT base station. It is part of the Cisco IP DECT 6800 Series and runs Multiplatform (MPP) firmware, making it a cordless voice option for retail, office and warehouse sites on cloud or hosted VoIP platforms such as Webex Calling and BroadWorks.

The handset has a 1.7 in. 128 x 160 pixel colour display, two SIP lines, G.722 HD audio and a full-duplex speakerphone. Talk time is 17 hours in narrowband or 12 hours in wideband, with up to 200 hours idle. The DBS-110 base handles up to 30 SIP registrations and 10 concurrent calls in single-cell mode, with 10/100 Ethernet and 802.3af Class 2 PoE. This bundle operates on 1880-1900 MHz at a reduced 22 dBm for Australia and New Zealand, and ships with the Australian power adapter.

The system can be extended with RPT-110 repeaters, up to 6 on a single cell, and the base can be desk-stand, wall or surface mounted. A 3.5 mm wired headset can be used with the handset. The 6823 is compatible with the CP-6825-BAT= battery, CP-6825-HC= cradle and CP-682x-WMK= wall mount kit.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for Webex Calling, Webex Calling Carrier, Cisco BroadWorks, Asterisk and Metaswitch
- On-handset site survey tool with green, yellow and red signal strength indicator
- Wideband HD audio with full-duplex speakerphone
- Expandable with RPT-110 repeaters, up to 6 on a single DBS-110 cell
- Base station supports desk-stand, wall or surface mounting
- Auto-provisioning via TFTP, HTTP or HTTPS with remote configuration and monitoring
- TLS, SRTP media encryption, digest authentication and encrypted configuration files

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Bundle contents: 1 x IP DECT 6823 handset with cradle, 1 x DBS-110 single-cell base station
- Frequency (AU/NZ): 1880-1900 MHz, reduced power 22 dBm
- Handset display: 1.7 in. 128 x 160 pixel, 64K TFT, 3-colour message waiting LED
- Handset keys: 28 keys, 3 soft keys, five-way navigation, alarm key
- Handset lines: 2 SIP lines
- Handset talk time: 17 hours narrowband, 12 hours wideband
- Handset idle time: 200 hours
- Handset charging time in cradle: 6 hours
- Handset audio: G.722 HD audio, G.726, full-duplex speakerphone
- Handset headset: 3.5 mm wired, no Bluetooth
- Handset dimensions: 117 x 46 x 20 mm
- Handset weight: 86 g
- Handset operating temperature: 0 to 45 C
- Base capacity (single cell): up to 30 SIP registrations, 10 concurrent calls
- Base codecs: G.711, G.722.2, G.726, G.729, OPUS
- Base network: 10/100 BASE-T Ethernet, PoE IEEE 802.3af Class 2
- Base dimensions: 121 x 121 x 31 mm
- Base weight: 167 g (231 g with stand)
- Signal radius: 50 m (164 ft)
- Directory: 250 entries, 50 entry call history, XML/LDAP remote directory

FAQs

Q: Does this bundle need a licence?
A: There is no separate licence for the phone hardware. It runs Multiplatform (MPP) firmware and needs a supported call-control platform such as Webex Calling, BroadWorks, Asterisk or Metaswitch.

Q: How is the base station powered?
A: The DBS-110 can be powered by 802.3af PoE (Power class 2) or by the supplied Australian power adapter. The handset cradle charges from a 5V/2A USB-A adapter.

Q: How many handsets and calls can the base support?
A: In single-cell mode the DBS-110 supports up to 30 SIP registrations and 10 concurrent calls. Coverage can be extended with up to 6 RPT-110 repeaters.

Q: What accessories work with the 6823 handset?
A: It works with the RPT-110 repeater (RPT-110-3PC-AU-K9=), the CP-682x-WMK= wall mount kit, the CP-6825-BAT= battery and CP-6825-HC= cradle. The replacement AU/NZ power adapter is CP-6823-PWR-AU=.

Q: Does the 6823 handset support Bluetooth?
A: No. The 6823 uses a 3.5 mm wired headset connection. Bluetooth is only available on the 6825.
