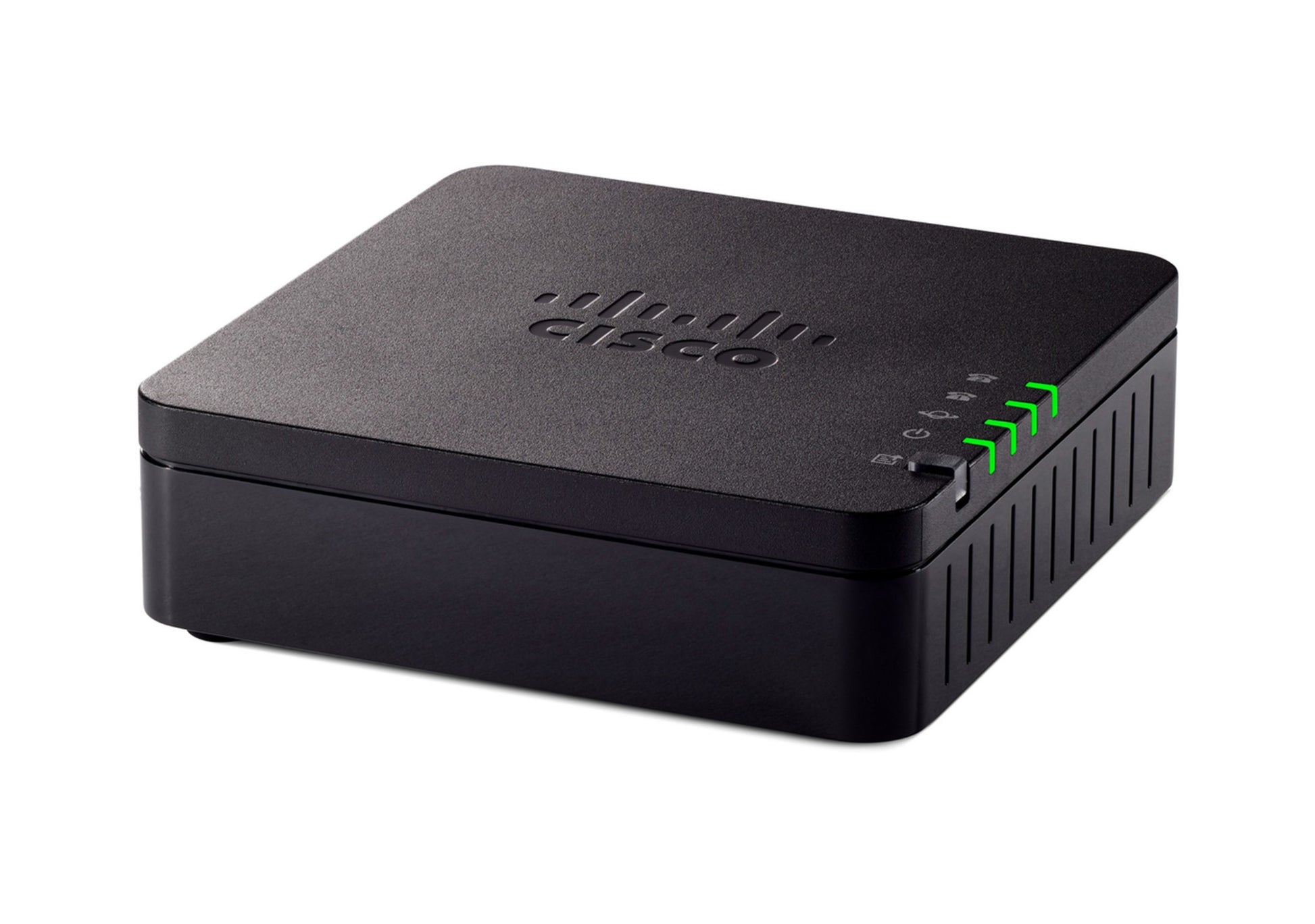

• Cisco ATA192-3PW-K9 black router with green lights and logo
1 1

Cisco

Cisco ATA192-3PW-K9 | ATA 190 2-Port FXS Adapter, 5V PSU, Multiplatform

ATA192-3PW-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ATA 192 is a 2-port FXS analog telephone adapter from the ATA 190 Series, running multiplatform (MPP) firmware. It connects analog phones, fax machines and overhead paging devices to IP telephony and hosted voice platforms, which suits small offices, enterprise networks and cloud UCaaS deployments that want to keep existing analog equipment while moving to voice over IP.

This SKU provides two RJ-11 FXS ports, each configurable independently as its own SIP registration, plus an integrated router with two 10/100 Mbps RJ-45 Ethernet ports. It is powered by an external 5V DC adapter drawing 5W and has no PoE. Voice codecs include G.711 a-law and u-law, G.729a, G.729ab and G.726, with T.38 fax relay and G.711 fax pass-through. It supports IPv4 and IPv6 dual stack, VLAN tagging and DiffServ QoS, and TR-069 cloud provisioning.

The ATA 192 is designed for Cisco Webex Calling, BroadCloud and BroadWorks, and for third-party call control systems such as Metaswitch and Asterisk. No licence is required to connect it to third-party call control systems. The spare power adapter, ATA191-PWR, is shared with the ATA 191.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Two FXS ports configurable independently as two SIP registrations
- Integrated router with NAT, DHCP client reservation, port forwarding, DMZ mode and VPN pass-through
- Zero-touch cloud provisioning via TR-069 and XML configuration files
- Media and signalling security including SIP over TLS 1.1/1.2, sRTP, encrypted configuration files and secure boot
- Echo cancellation, voice activity detection and comfort noise generation for clear voice
- Dedicated PRT button for problem reporting and log collection
- IPv6 dual stack to support migration to IPv6
- Management via web admin, IVR, HTTP/HTTPS/TFTP provisioning, SSH, SNMPv3 and syslog

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Voice ports: 2 x RJ-11 FXS, independently configurable as two SIP registrations
- Ethernet ports: 2 x 10/100 Mbps RJ-45 with integrated router
- Power input: 5V DC at 2.4A maximum (external adapter)
- Power consumption: 5W
- PoE: not supported
- Adapter input: 100-240V AC, 50-60 Hz, 1.8m cord
- Audio codecs: G.711 a-law, G.711 u-law, G.729a, G.729ab, G.726
- Fax: T.38 fax relay (Group 3), G.711 pass-through (Group 3)
- IP: IPv4 and IPv6 dual stack
- QoS: IEEE 802.1p/Q, DiffServ, ToS
- SLIC ring voltage: 40 to 90 Vpk configurable
- SLIC maximum ringer load: 3 REN
- Voice quality MOS: >4.0
- Buttons: Reset / Problem Reporting (PRT)
- LED indicators: Power, Network, Phone 1, Phone 2, PRT
- Dimensions (H x W x D): 100 x 100 x 28 mm (3.9 x 3.9 x 1.1 in.)
- Weight: 132.1 g (4.7 oz)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Nonoperating temperature: -10 to 60 C (14 to 140 F)
- Operating humidity: 10% to 90% noncondensing
- MTBF: 300,000 hours
- Mounting: wall mountable
- Safety compliance: UL 60950, IEC 60950-1, AS/NZS 60950.1:2015
- EMC compliance: AS/NZS CISPR 32:2015 Class B, EN 55032 Class B, FCC Part 15 Subpart B

FAQs

Q: Does the ATA 192 need a licence?
A: No licence is required to connect the ATA 192 to third-party call control systems.

Q: How is this ATA 192 powered?
A: It is powered by an external 5V DC adapter rated at 2.4A maximum, accepting 100-240V AC input. It does not support PoE. A spare adapter is available as ATA191-PWR.

Q: Which call control platforms does it work with?
A: It is designed for Cisco Webex Calling, BroadCloud and BroadWorks, and third-party systems such as Metaswitch and Asterisk, running multiplatform (MPP) firmware.

Q: What can I connect to the FXS ports?
A: Analog phones, fax machines and overhead paging devices. Each of the two FXS ports can be configured as its own SIP registration.

Q: How does the ATA 192 differ from the ATA 191?
A: The ATA 192 has two RJ-11 FXS ports and an integrated router with two 10/100 Ethernet ports, while the ATA 191 uses the same ATA191-PWR power adapter.
