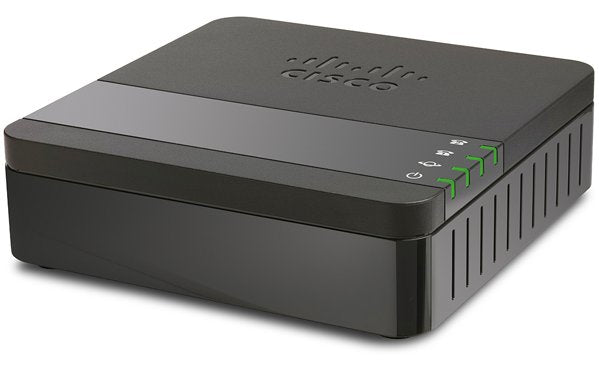

• Cisco ATA191-K9 black router with green accents and ventilation slits
1 1

Cisco

Cisco ATA191-K9 | ATA 191 2-Port FXS Analog Adapter, On-Prem

ATA191-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ATA 191 is a 2-port FXS analog telephone adapter from the Cisco ATA 190 Series. It connects analog phones, fax machines and overhead paging devices to an IP network, so existing analog equipment can stay in service while a site moves to VoIP. This ATA191-K9 is the on-premises variant, built for Cisco call control with Cisco Unified Communications Manager (CUCM) and Cisco Unified Communications Manager Express (CME).

The two RJ11 FXS ports can each carry an independent SIP registration, and a single 10/100 Mbps RJ-45 port provides the network connection. Voice codecs are G.711 a-law and mu-law plus G.729a and G.729ab, with T.38 fax relay and G.711 fax pass-through for Group 3 fax. The unit runs from a 5V DC external power adapter at 5 W consumption, supports IPv4 and IPv6 dual stack, and is wall mountable in a compact 100 x 100 x 28 mm housing.

On CUCM, licensing is one Essential User Connect License per port. A spare power adapter, ATA191-PWR, is available separately. The multiplatform firmware variant for third-party SIP platforms is a different SKU.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Two independent SIP registrations, one per FXS port
- Supports analog phones, fax machines and overhead paging devices
- Central provisioning and configuration through Cisco Unified Communications Manager
- Echo cancellation, voice activity detection and comfort noise generation for clear voice
- Media and signalling security with SIP over TLS, SRTP, secure boot and image authentication
- IPv4 and IPv6 dual-stack support for IPv6 migration
- Dedicated PRT button for problem reporting and log collection
- Automated provisioning and in-service upgrades over HTTP and TFTP

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Analog telephone adapter
- Firmware variant: On-Prem (Cisco CUCM/CME)
- Voice ports: 2 x RJ11 FXS
- Network port: 1 x 10/100 Mbps RJ-45 Ethernet
- Audio codecs: G.711 a-law, G.711 mu-law, G.729a, G.729ab
- Fax: T.38 fax relay (Group 3), G.711 fax pass-through
- Protocols: IPv4, IPv6, SIP, RTP, RTCP, HTTP, HTTPS, TFTP, DHCP, CDP, LLDP
- QoS: IEEE 802.1p/Q, DiffServ/ToS
- Ring voltage: 40 to 90 Vpk configurable
- Maximum ringer load: 3 REN
- Off-hook current: 25 mA +/-10%
- Frequency response: 300 to 3400 Hz
- Voice quality: MOS above 4.0
- Power input: 5V DC at 2.4A maximum
- Power consumption: 5 W
- Power adapter: 100 to 240V AC, 50 to 60 Hz
- Indicators: Power, Network, Phone 1, Phone 2, PRT LEDs
- Dimensions (H x W x D): 100 x 100 x 28 mm
- Weight: 132.1 g
- Mounting: Wall mountable
- Operating temperature: 0 to 40 C
- Operating humidity: 10% to 90% noncondensing
- MTBF: 300,000 hours
- Safety compliance: UL 60950, IEC 60950-1, AS/NZS 60950.1:2015

FAQs

Q: Which call control platforms does the ATA191-K9 work with?
A: This on-premises variant is for Cisco call control, namely Cisco Unified Communications Manager (CUCM) and Cisco Unified Communications Manager Express (CME). Third-party SIP platforms use the separate multiplatform variant, ATA191-3PW-K9.

Q: What licensing does it need on CUCM?
A: On Cisco Unified Communications Manager, the ATA 191 requires one Essential User Connect License per port.

Q: How is the ATA 191 powered?
A: It uses an external AC power adapter delivering 5V DC at up to 2.4A, drawing about 5 W. PoE is not listed, and a spare adapter is available as ATA191-PWR.

Q: Can it carry fax calls?
A: Yes. It supports T.38 fax relay and G.711 fax pass-through for Group 3 fax, along with fax tone detection.

Q: What can I connect to the two FXS ports?
A: Each RJ11 FXS port connects an analog phone, fax machine or overhead paging device. The ports can be configured as two independent SIP registrations.
