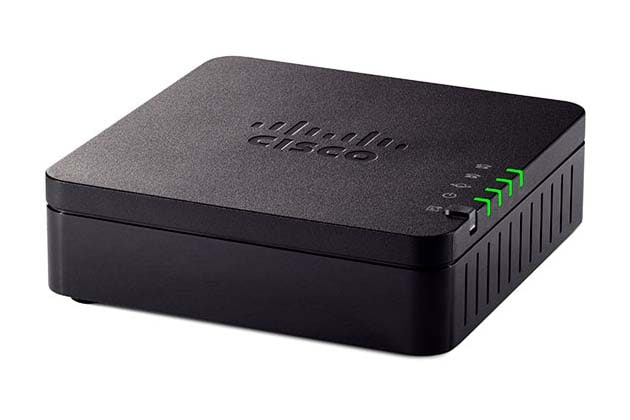

• Cisco ATA190 black router with green lights and silver logo
1 1

Cisco

Cisco ATA190 | ATA 190 2-Port FXS Analog Adapter, 10/100, SIP

ATA190

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ATA 190 is an analog telephone adapter from the ATA 190 Series, built to connect existing analog phones and fax machines to IP telephony networks. It suits business and residential deployments where legacy handsets and fax lines need to stay in service while voice moves to SIP-based call control or Cisco Unified Communications Manager.

This SIP firmware model provides two RJ-11 FXS voice ports, each with its own independent phone number, and a single RJ-45 10/100BASE-T Ethernet port with auto-negotiation and full-duplex operation. Supported codecs are G.711 a-law and mu-law and G.729A/AB, with T.38 and G.711 pass-through for fax. Signalling and security run over SIP, SRTP and TLS, with DHCP addressing and TFTP provisioning. Power is supplied by an external 5 VDC adapter (2.0A, universal 100-240V AC input) with a maximum draw of 5 W. PoE is not supported. No licence or subscription is required.

The adapter is compatible with Cisco Unified Communications Manager 8.5(1), 8.6(2), 9.1(2) and 10.0(1) and later, as well as other SIP-based IP telephony platforms. At 101 x 101 x 28 mm and 153 g, it is compact enough to sit beside a desk or in a comms cabinet.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Brings existing analog phones and fax machines onto IP networks, protecting legacy telephone investment
- Each port supports voice or fax, and both can be used at the same time
- Autoprovisioning via TFTP with DHCP IP assignment
- Touch-tone keypad configuration with voice prompts
- Administration password protection and remote upgrades over the network
- Standard configuration and provisioning through Cisco Unified Communications Manager
- Configurable tones, dial plan, PLAR, SIP proxy redundancy and caller ID formats

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Voice ports: 2 x RJ-11 FXS, each with independent phone number
- Network port: 1 x RJ-45 10/100BASE-T, auto-negotiation, full-duplex
- Power supply: Universal AC power supply 100-240V
- DC input voltage: 5 VDC at 2.0A
- Maximum power consumption: 5 W
- Noise level: Less than 34 dBA at 3 ft (0.91 m)
- Operating temperature: 0 to 45 C (32 to 113 F)
- Storage temperature: -25 to 70 C (-13 to 158 F)
- Operating humidity: 0 to 90% non-condensing
- Storage humidity: 10 to 90% non-condensing
- Dimensions (H x W x D): 101 x 101 x 28 mm (3.98 x 3.98 x 1.10 in)
- Unit weight: 153 g (5.40 oz)
- Compliance: FCC (Part 15 Class B), CE, ICES-003, A-Tick, RoHS, UL
- Voice codecs: G.729A, G.729AB, G.711 a-law, G.711 mu-law
- Fax: T.38 and G.711 pass-through
- Protocols: SIP, SRTP, DHCP, TFTP provisioning, TLS, IEEE 802.1p
- Telephony features: DTMF detection and generation, VAD, comfort noise generation, configurable tones
- Cisco UCM compatibility: 8.5(1), 8.6(2), 9.1(2), 10.0(1) and later

FAQs

Q: Does the ATA 190 need a licence or subscription?
A: No. It is a standalone hardware adapter that registers to SIP call control or Cisco Unified Communications Manager, with no licence or subscription required.

Q: How is the ATA 190 powered?
A: It runs from an external 5 VDC power adapter (2.0A, universal 100-240V AC input) and draws a maximum of 5 W. It does not support PoE, so a nearby power outlet is needed.

Q: Which call control platforms does it work with?
A: It is compatible with Cisco Unified Communications Manager 8.5(1), 8.6(2), 9.1(2), 10.0(1) and later, and with other SIP-based IP telephony platforms.

Q: Can both ports be used for fax or voice at the same time?
A: Yes. Each of the two FXS ports supports voice or fax, each has its own independent phone number, and both can operate simultaneously. Fax uses T.38 or G.711 pass-through.

Q: What is the network connection on this model?
A: A single RJ-45 10/100BASE-T Ethernet port with auto-negotiation and full-duplex operation. This SIP firmware model has two RJ-11 FXS voice ports and no additional LAN ports.
