Cisco

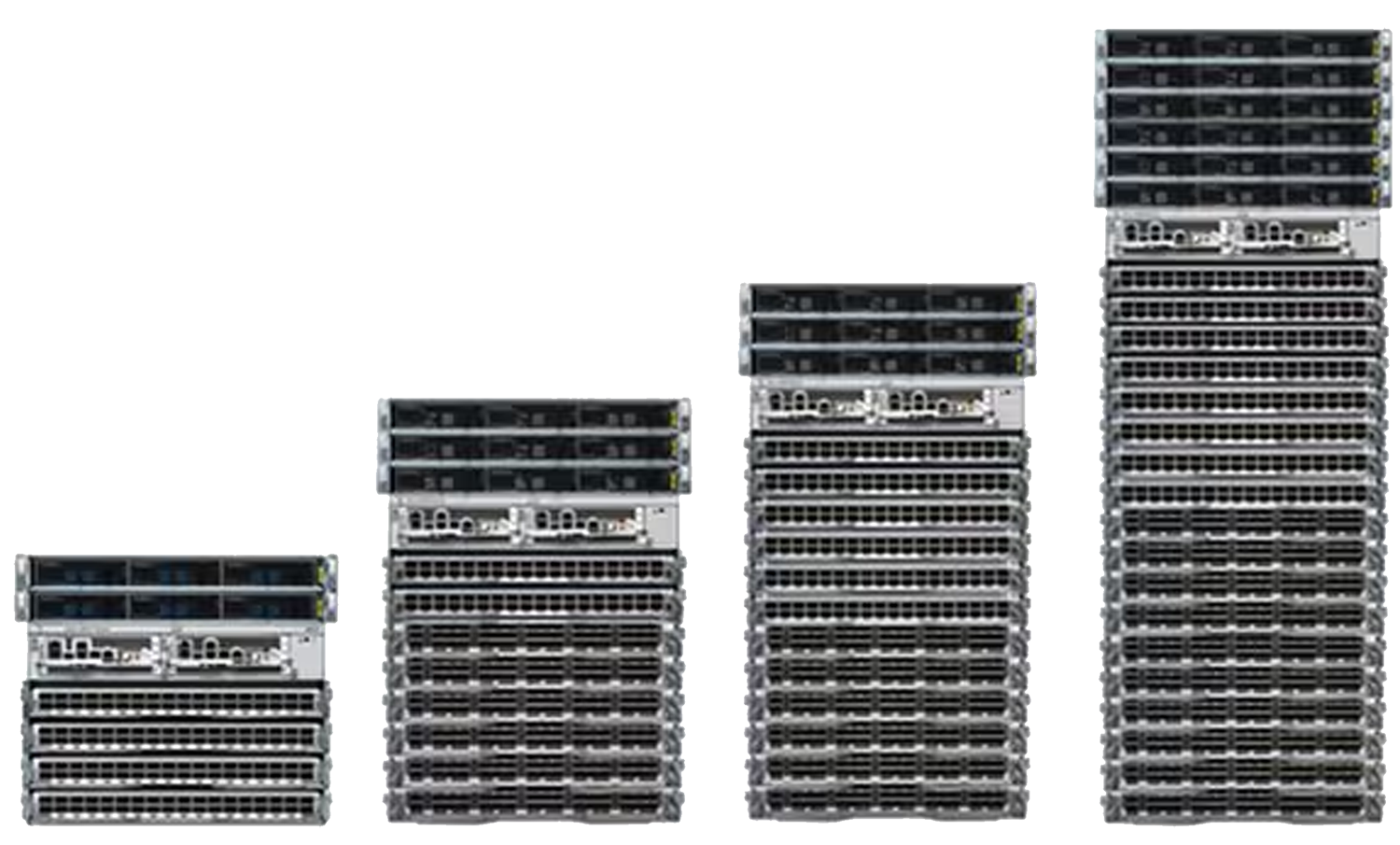

Cisco 8808 | 8800 8-Slot 16 RU Modular Router Chassis, 115.2T

8808

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 8808 is an 8-slot, 16 RU modular router chassis from the Cisco 8800 Series, built on Cisco Silicon One for carrier-grade core and aggregation deployments. It provides up to 115.2 Tbps of system bandwidth with redundant route processors and switch fabric, and accepts 100GbE and 400GbE line cards. The 8-slot design sits between the 4-slot 8804 and the 12-slot 8812 and 18-slot 8818 chassis, giving service providers and large data centres a scalable, hot-swappable platform.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Redundant route processors and switch fabric with N+1 fabric redundancy
- Hot-swappable line cards, fabric modules and fan trays
- Horizontal line cards with 8 vertical fabric cards and 4 fan trays
- Cisco Silicon One ASIC architecture
- MACsec-capable line card options
- IOS XR software with RPM-based package management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 line card slots
- 2 route processor slots (redundant)
- 8 fabric module slots
- 4 fan module slots
- Chassis height 16 RU
- Dimensions 28 x 17.45 x 33.73 in. (71.12 x 44.32 x 85.7 cm) H x W x D
- Up to 115.2 Tbps system bandwidth
- Up to 14.4 Tbps per line card with 100/400GbE ports
- Fabric module options: 8808-FC (Q100), 8808-FC0 (Q200), 8808-FC1 (F100, up to 28.8T per line card slot)
- Rack mountable in a standard 19 in. rack
- Power: 4.8 kW power supply for 48V 100A DC (-40 to -75V DC)

FAQs

Q: How many line cards does the Cisco 8808 support?
A: The 8808 has 8 line card slots, supporting 100GbE and 400GbE line cards such as 48x QSFP28 100GbE with MACsec or 36x QSFP56-DD 400GbE cards.

Q: Does the 8808 support route processor redundancy?
A: Yes. The chassis has 2 route processor slots for a redundant control plane, and the switch fabric supports N+1 redundancy.

Q: How does the 8808 differ from the 8804, 8812 and 8818?
A: The families share the same architecture and differ mainly in slot count. The 8808 offers 8 line card slots in a 16 RU chassis, versus 4 slots for the 8804, 12 for the 8812 and 18 for the 8818.

Q: Which fabric modules are available for the 8808?
A: Options include the 8808-FC (Q100), 8808-FC0 (Q200) and 8808-FC1 (F100), the last supporting up to 28.8T per line card slot.

Q: Are components hot-swappable?
A: Yes. Line cards, fabric modules and fan trays are hot-swappable, which helps minimise service disruption during maintenance.
