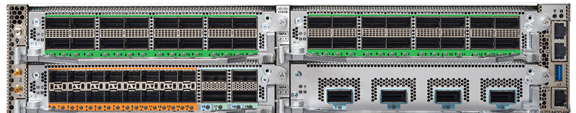

• Cisco 8712-MOD-M 2RU silver server rack with green and orange cables
1 1

Cisco

Cisco 8712-MOD-M | 8700 2RU 6.4T Router, 4x MPA Bays, K100

8712-MOD-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8712 is a 2RU modular router built on the Silicon One K100 NPU, delivering 6.4 Tbps of system throughput across four Modular Port Adapter (MPA) bays. It supports flexible interface mixes from 1G to 400G and suits metro edge, aggregation, peering and compact core deployments running IOS XR. This base chassis is supplied with four MPA bays; MPAs and optics are selected separately to match the required port types.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Part of the Cisco 8000 portfolio powered by Cisco Silicon One processors
- Modular port adapters allow a flexible mix of SFP56, QSFP28 and QSFP56-DD interfaces from 1G to 400G
- Suited to upstream peering, service aggregation, dense 100G aggregation and route-reflector roles
- Carrier-grade IOS XR software with modular packaging
- Hot-swappable power supplies and fans
- ZR/ZR+ coherent optics supported on 400G ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2RU chassis with Cisco Silicon One K100 ASIC
- 6.4 Tbps system throughput
- 4 x MPA slots at 1.6 Tbps each, with breakout capabilities
- Interface combinations: up to 72 x 1G, 128 x 10G, 128 x 25G, 32 x 40G, 64 x 100G or 16 x 400G ports
- Supported MPAs: 8K-MPA-4D (4 x QSFP56-DD), 8K-MPA-16H (16 x QSFP28), 8K-MPA-16Z2D (16 x SFP56 + 2 x QSFP56-DD), plus an 18 x SFP56 + 1 x QSFP56-DD MPA
- 6-core x86 CPU (2.5GHz), 64GB DDR4 SODIMM, 480GB SSD
- Full line-rate LAN MACsec encryption on all ports
- Timing: PTP with Class C performance, SyncE, GNSS; 1pps, 10MHz and 1588-TOD interfaces
- Management: 1 x RS-232 RJ45 console, 1 x RJ45 1G management port, 1 x USB 2.0 Type A
- Power: typical 375W without optics; 2 x field-replaceable AC or DC PSUs in 1+1 redundancy, 2KW modules, 80+ Platinum AC PSU
- Cooling: 4 field-replaceable fans in 3+1 redundancy; PSI (front-to-back) or PSE (back-to-front) airflow
- Approx. dimensions 17.3 x 23.6 x 3.4 in, weight about 55 lbs

FAQs

Q: Does the 8712-MOD-M include port adapters and optics?
A: No. This is the base chassis with four MPA bays. MPAs and optics are sold separately and chosen to suit the required port speeds and media.

Q: Which MPAs are supported?
A: Supported MPAs include 8K-MPA-4D (4 x QSFP56-DD), 8K-MPA-16H (16 x QSFP28), 8K-MPA-16Z2D (16 x SFP56 + 2 x QSFP56-DD) and an 18 x SFP56 + 1 x QSFP56-DD adapter.

Q: What port speeds can this router support?
A: Depending on the MPAs installed, it supports 1G, 10G, 25G, 40G, 100G and 400G interfaces, up to 16 x 400G or 64 x 100G ports in total.

Q: What operating system does it run?
A: It runs Cisco IOS XR, a carrier-grade operating system with modular packaging.

Q: Is the power and cooling redundant?
A: Yes. It has two field-replaceable AC or DC power supplies in 1+1 redundancy and four field-replaceable fans in 3+1 redundancy, with front-to-back or back-to-front airflow options.
