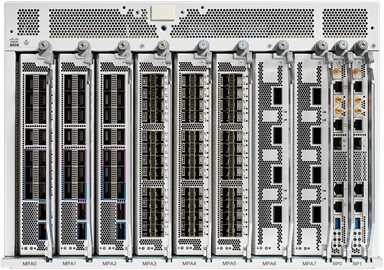

• Cisco 8608-SYS 8-slot chassis with silver rack and black mesh panels
1 1

Cisco

Cisco 8608-SYS | 8608 Router Chassis, 8-Slot, 12.8 Tbps, Base

8608-SYS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 8608-SYS is the base 8-slot centralized router chassis from the Cisco 8000 Series, built on the Cisco Silicon One Q200 ASIC and delivering 12.8 Tbps of system bandwidth in a 7RU form factor. It supports eight Modular Port Adapter slots with native speeds from 10G to 400G, making it well suited to carrier-grade core and aggregation deployments. This SKU is the bare chassis only, without the redundant or non-redundant bundle options, so route processors, switch cards, port adapters and power modules are selected separately to suit the deployment.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Redundant control plane with dual route processors
- Redundant data plane with dual switch cards
- Can also be operated in non-redundant mode
- Major chassis components can be upgraded to next-generation parts for investment protection
- Native 10G, 25G, 50G, 100G and 400G interface support
- MACsec supported on all MPA ports
- Runs Cisco IOS XR software

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 12.8 Tbps system bandwidth
- Cisco Silicon One Q200 ASIC
- 8 Modular Port Adapter (MPA) slots, 1.6 Tbps per MPA
- 7RU chassis, 580 mm sheet metal depth (approx. 12.2 x 17.3 x 22.8 in)
- Up to 2 Route Processors in active-standby (6-core Intel CPU, 64 GB DRAM, 256 GB SSD)
- Up to 2 Switch Cards in hot standby for data plane redundancy
- 4 power modules, N+N redundant: 3.2 kW AC, 3.2 kW DC or 4.3 kW HV options
- 8 fan modules plus 1 fan spinner, fan trays integrated with switch cards
- Native port speeds from 10G to 400G via MPAs
- Approx. weight 58 lb (26.3 kg) for the chassis

FAQs

Q: Does the 8608-SYS include route processors, switch cards or power modules?
A: No. The 8608-SYS is the bare 8-slot chassis. Route processors, switch cards, Modular Port Adapters and power modules are ordered separately.

Q: How does the 8608-SYS differ from the 8608-SYS-R and 8608-SYS-NR?
A: The 8608-SYS-R and 8608-SYS-NR are bundled configurations. The 8608-SYS is the base chassis without a redundant or non-redundant bundle, so components are selected individually.

Q: What port speeds does the Cisco 8608 support?
A: Through its eight Modular Port Adapter slots, the chassis supports native port speeds from 10G up to 400G, including 25G, 50G and 100G, with 1.6 Tbps per MPA.

Q: What redundancy options are available in the 8608 chassis?
A: It supports up to two route processors in active-standby, up to two switch cards in hot standby, and four power modules in N+N redundancy. It can also be run in non-redundant mode.

Q: Which power module options can be used?
A: The chassis accommodates four power modules, available as 3.2 kW AC, 3.2 kW DC or 4.3 kW HV options, in an N+N redundant arrangement.
