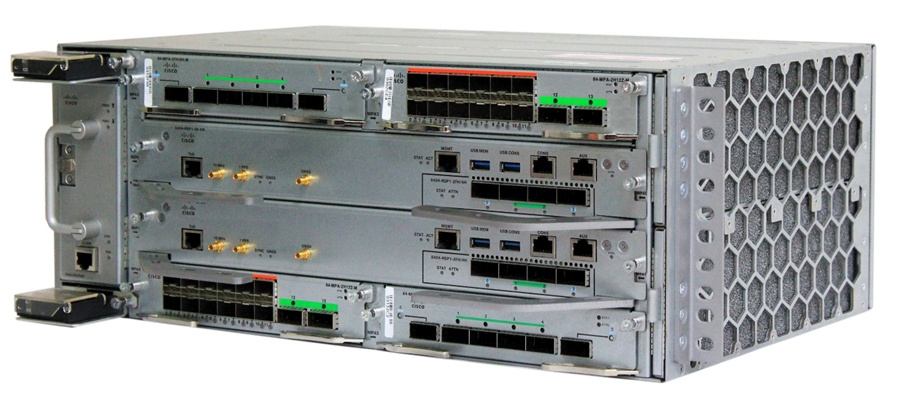

• Cisco 8404-SYS-D 4RU chassis with silver honeycomb server rack and network ports
1 1

Cisco

Cisco 8404-SYS-D | 8400 4RU 4.8T Centralized Chassis, DC PEM

8404-SYS-D

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8404 is a 4RU, 4.8 Tbps centralized-architecture router chassis built on the Cisco Silicon One K100 NPU, supplied here in the DC PEM configuration. It is designed for mobile IP RAN and xHaul, residential and business service aggregation, and remote POP deployments. The chassis supports up to two Route Switch Processors in active-standby, two DC Power Entry Modules in 1+1 redundancy and six Modular Port Adapter positions, with all FRUs and cabling accessible from the front. It runs Cisco IOS XR software, and RSPs, DC PEMs and port adapters are ordered separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fully redundant, centralized forwarding
- Combines distributed-system redundancy with fixed-platform economics
- All FRUs and cabling accessible from the front of the chassis
- Modular port adapters provide high interface diversity, including 400G/100GE QSFP-DD and 100G QSFP28 with 1/10/25/50G SFP56 options
- Network timing interfaces with GNSS and ToD port
- External alarm inputs, each provisionable as critical, major or minor
- Active-standby RSP redundancy for control and data plane
- Runs Cisco IOS XR software

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4.8 Tbps bandwidth, Cisco Silicon One K100 NPU
- 4RU chassis: 175 mm H x 442 mm W x 295 mm D
- Six Modular Port Adapters: four pluggable MPA slots at 0.8 Tbps each (3.2 Tbps) plus two integrated MPAs at 0.8 Tbps each (1.6 Tbps)
- Up to two Route Switch Processors (8404-RSP1-48-EM), active-standby
- RSP: 8-core ARM CPU, 32 GB DDR5 DRAM, 40 GB eMMC
- Two DC Power Entry Modules (8404-DC-PEM) in 1+1 redundancy, maximum 1.8 kW delivered
- DC input: 1200W DC PEM, -40.8V to -72V DC, nominal -48V/-60V
- Single fan tray (8404-FAN-TRAY) with two rows of fans, right-to-left airflow
- Fully loaded weight approx. 26.7 kg (58.86 lb)
- Operating temperature range -20 to +65 C (-40 to 149 F)

FAQs

Q: Does this chassis include the Route Switch Processor and port adapters?
A: No. The 8404-SYS-D is the 4RU chassis only. RSPs (8404-RSP1-48-EM), DC PEMs and Modular Port Adapters are ordered separately.

Q: What power configuration does the DC PEM variant use?
A: It uses two 8404-DC-PEM modules in 1+1 redundancy, with a 1200W DC input range of -40.8V to -72V DC (nominal -48V/-60V) and a maximum of 1.8 kW delivered.

Q: How many port adapters does the Cisco 8404 support?
A: It provides six Modular Port Adapter positions: four pluggable MPA slots at 0.8 Tbps each plus two integrated MPAs at 0.8 Tbps each, for 4.8 Tbps in total.

Q: Which port adapters are compatible with this chassis?
A: Examples include the 84-MPA-4H2FH-M with 400G/100GE QSFP-DD ports and the 84-MPA-2H12Z-M with 100G QSFP28 and 1/10/25/50G SFP56 ports.

Q: What are the typical deployment scenarios for the Cisco 8404?
A: It is aimed at mobile IP RAN and xHaul, residential and business service aggregation, and remote POP deployments where a compact 295 mm-deep chassis is needed.
