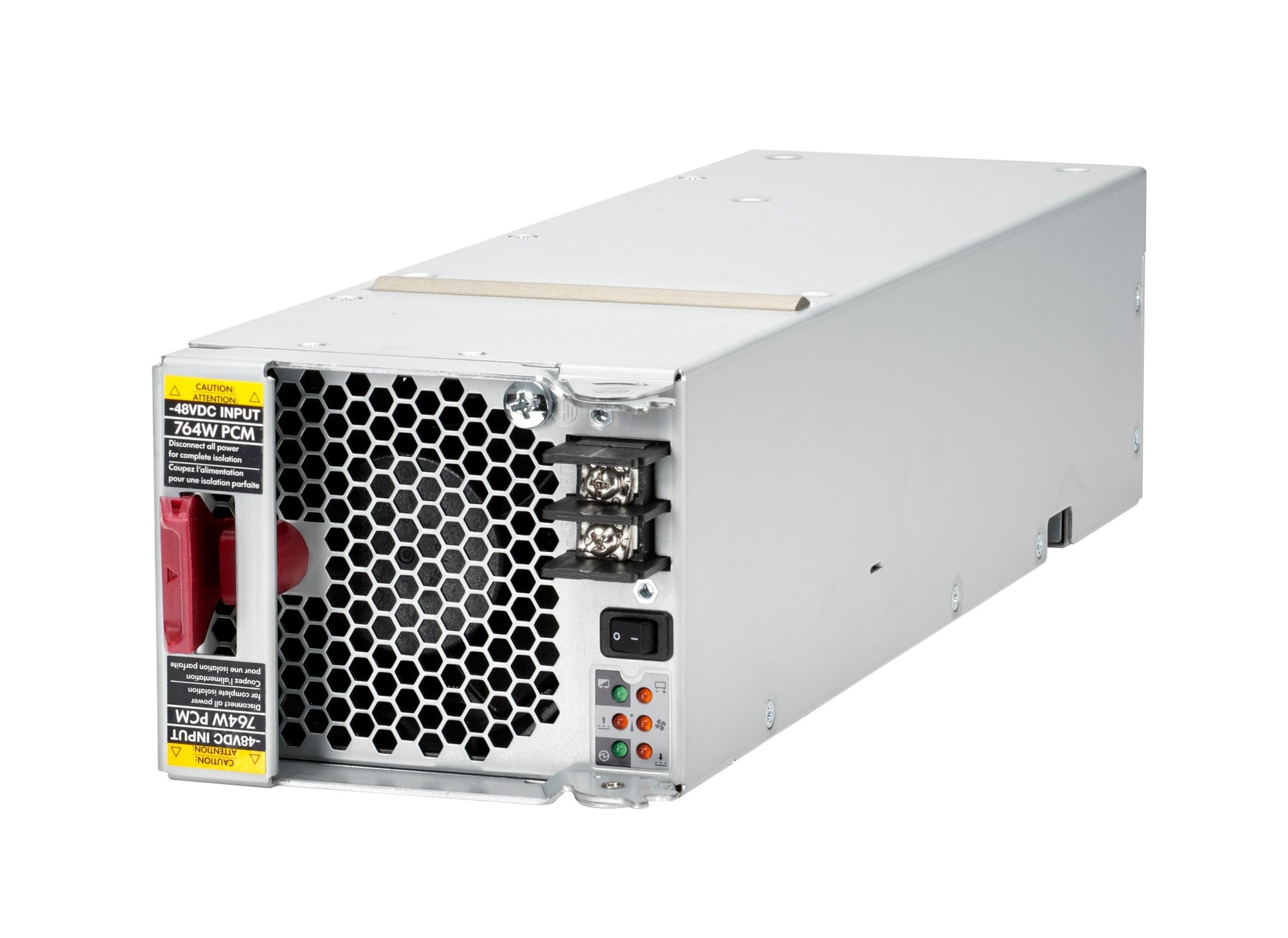

• Aruba R0Q90A 764W -48V DC hot-plug PSU with silver red accents
1 1

Aruba

Aruba R0Q90A | MSA 2060 764W -48VDC Hot-Plug Power Supply

R0Q90A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

This 764W -48VDC hot-plug power supply kit lets HPE MSA 2060 and 2062 array and drive enclosures run from telco-grade DC power instead of the standard AC supplies. Each kit includes one 764W DC power supply unit and one 2.3m 48VDC power cord. It suits data rooms and telecommunications environments with -48V DC feeds, and the hot-plug design supports redundancy-ready operation when two supplies are fitted per enclosure.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- DC power option for MSA array and drive enclosures, replacing the standard 580W AC supplies
- Hot-plug design for redundancy-ready operation
- Two DC power supplies are required for each array enclosure and each drive enclosure when DC power is desired
- Customer self-installable

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output power: 764W
- Input: DC -48V (48-60 VDC, 10.4A/8.3A max input)
- Hot-plug, plug-in module
- Form factor: 2U
- Kit contents: 1 x 764W -48VDC power supply and 1 x 48VDC 2.3m power cord
- Dimensions: 89 mm (3.50 in) H x 445 mm (17.52 in) W x 508 mm (20 in) D
- Energy Star: Yes
- Compatible with MSA 2060 SAS 12G 2U 12-disk LFF and 24-disk SFF drive enclosures
- Compatible with MSA 2060 10GbE iSCSI LFF/SFF and MSA 2062 16Gb FC SFF storage

FAQs

Q: What is included in this kit?
A: Each kit contains one 764W -48VDC hot-plug power supply unit and one 48VDC 2.3m power cord.

Q: Which HPE MSA enclosures does it support?
A: It is compatible with MSA 2060 SAS 12G 2U 12-disk LFF and 24-disk SFF drive enclosures, as well as MSA 2060 10GbE iSCSI LFF/SFF and MSA 2062 16Gb FC SFF storage arrays.

Q: How many power supplies do I need for DC operation?
A: Two DC power supplies must be purchased for each array enclosure and each drive enclosure when DC power is desired. As each kit contains one supply, two kits are needed per enclosure.

Q: What input voltage does it use?
A: It runs from a -48V DC input (48-60 VDC) with a maximum input current of 10.4A/8.3A, which suits telco-style DC power feeds.

Q: Can I install it myself?
A: Yes, the hot-plug module is customer self-installable.
