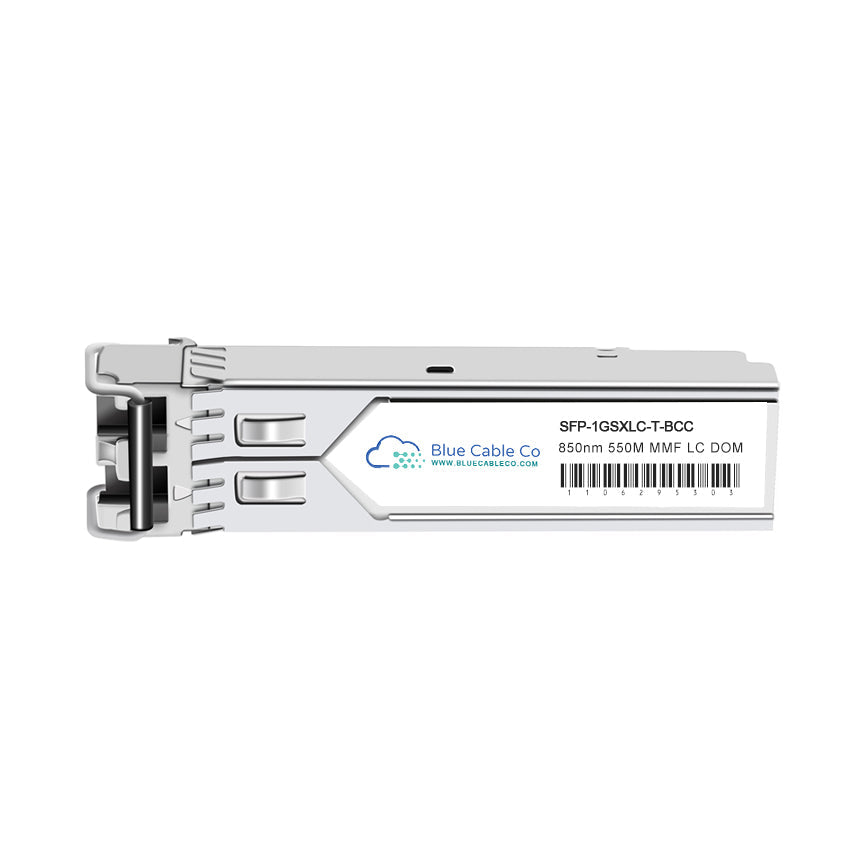

• Moxa Compatible SFP-1GSXLC-T-BCC 1GB Multi-Mode Transceiver Module
1 1

Blue Cable Co

SFP-1GSXLC-T-BCC | Moxa Compatible 1GB Multi-Mode 550m (1000BASE-SX) Rugged / Industrial

SFP-1GSXLC-T-BCC

33 in stock

$51.70 inc. GST
$47.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-1GSXLC-T-BCC is a drop-in compatible replacement for the Moxa SFP-1GSXLC-T. This industrial-grade SFP transceiver delivers plug-and-play 1000BASE-SX connectivity with Moxa industrial Ethernet switches, routers, and media converters. - IEEE 802.3z compliance guarantees interoperability with Gigabit Ethernet equipment across vendor platforms - SFP form factor, 1000 Mbps data rate, 850nm wavelength, multi-mode fibre, LC duplex connector, up to 550m reach on OM2 fibre or 300m on OM1 fibre - Digital Diagnostic Monitoring (DDM) support enables real-time monitoring of temperature, voltage, optical power, and link health parameters - Industrial operating temperature range of -40 to 85 degrees Celsius for harsh environment deployments in automation, transportation, and outdoor applications - Hot-swappable design with differential LVPECL inputs and outputs and TTL signal detect indicator for simplified installation and maintenance - Class 1 laser safety compliant with EN 60825-1 for safe operation in industrial settings

Features

• IEEE 802.3z 1000BASE-SX compliance ensures full Gigabit Ethernet interoperability with MSA-compliant SFP ports regardless of switch vendor
• 850nm VCSEL laser delivers 1Gbps throughput over 50µm OM2 fibre to 550m or 62.5µm OM1 fibre to 300m, supporting typical intra-building and campus backbone distances
• Extended industrial operating temperature range (-40 to 85°C) enables deployment in outdoor enclosures, factory floors, rail wayside cabinets, and other thermally challenging environments where commercial transceivers fail
• Digital Diagnostic Monitoring provides SFF-8472 compliant access to temperature, transmit/receive optical power, laser bias current, and supply voltage in real-time for proactive link troubleshooting
• Hot-swappable LC duplex interface with differential LVPECL signalling and TTL loss-of-signal detection allows live module replacement without service interruption
• Low power consumption (maximum 1W typical) reduces thermal load in densely populated switch chassis and simplifies power budgeting for PoE or embedded applications
• Multi-mode fibre compatibility supports incremental fibre plant upgrades from Fast Ethernet without requiring single-mode cabling replacement

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-1GSXLC-T-BCC
Compatible Replacement For: SFP-1GSXLC-T
Compatibility: Moxa compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP (Small Form-factor Pluggable)
Data Rate: 1000 Mbps (1 Gigabit)
Standard: IEEE 802.3z (1000BASE-SX)
Wavelength: 850nm
Fibre Type: Multi-mode
Connector Type: LC duplex
Max Reach: Up to 550m on 50µm OM2 fibre, 300m on 62.5µm OM1 fibre
DOM Support: Yes (Digital Diagnostic Monitoring)
Operating Temperature: -40 to 85°C (industrial grade)
Power Consumption: Max 1W
Humidity: 5 to 95% (non-condensing)
Compliance: CE, FCC, EN 60825-1

FAQs

Q: Will this work in place of the Moxa SFP-1GSXLC-T?
A: Yes. The SFP-1GSXLC-T-BCC is electrically and optically identical to the Moxa SFP-1GSXLC-T. It conforms to the same IEEE 802.3z 1000BASE-SX standard, uses the same SFP mechanical form factor, operates at the same 850nm wavelength over multi-mode fibre, and supports the same -40 to 85°C industrial temperature range. It is plug-and-play compatible with any Moxa equipment that specifies the SFP-1GSXLC-T as a supported transceiver.

Q: Which Moxa switches and devices support this transceiver?
A: This transceiver is compatible with any Moxa Ethernet switch, router, media converter, or embedded module that includes SFP ports and lists the SFP-1GSXLC-T on its compatibility matrix. This includes the SFP-1G Series compatible devices across the EDS, IKS, MDS, SDS, PT, and TN industrial switch families, as well as IM-series interface modules and industrial media converters with Gigabit SFP slots.

Q: What fibre type and modal bandwidth do I need to reach 550m?
A: To achieve the full 550m transmission distance, you must use 50µm multi-mode fibre with OM2 modal bandwidth specification (500 MHz·km at 850nm) or better. If you are using older 62.5µm OM1 fibre (200 MHz·km at 850nm), the maximum reliable reach drops to 300m due to higher modal dispersion. For distances beyond 550m, consider upgrading to a 1000BASE-LX single-mode transceiver such as the SFP-1GLXLC-T compatible replacement.

Q: Can I access DDM parameters on this transceiver, and what do they tell me?
A: Yes. This transceiver implements the SFF-8472 Digital Diagnostic Monitoring specification, exposing real-time temperature, supply voltage, laser bias current, transmit optical power, and receive optical power via the I2C management interface. Most managed Moxa switches surface these parameters in their CLI or web interface. Monitoring receive power lets you detect marginal fibre connections or dirty connectors before they cause packet loss, while tracking temperature helps confirm the module stays within rated limits in hot enclosures.

Q: Does this industrial-grade transceiver require different handling or cooling compared to commercial SFPs?
A: The industrial temperature rating (-40 to 85°C ambient) means the transceiver uses hardened laser diodes, photodetectors, and IC components that tolerate wider thermal swings without calibration drift. You do not need additional cooling beyond what the host device provides. However, ensure adequate chassis ventilation in high-density deployments and avoid blocking SFP vents, as even industrial transceivers have internal thermal limits. The module draws a maximum of 1W and is safe to hot-swap during operation without powering down the host device.
