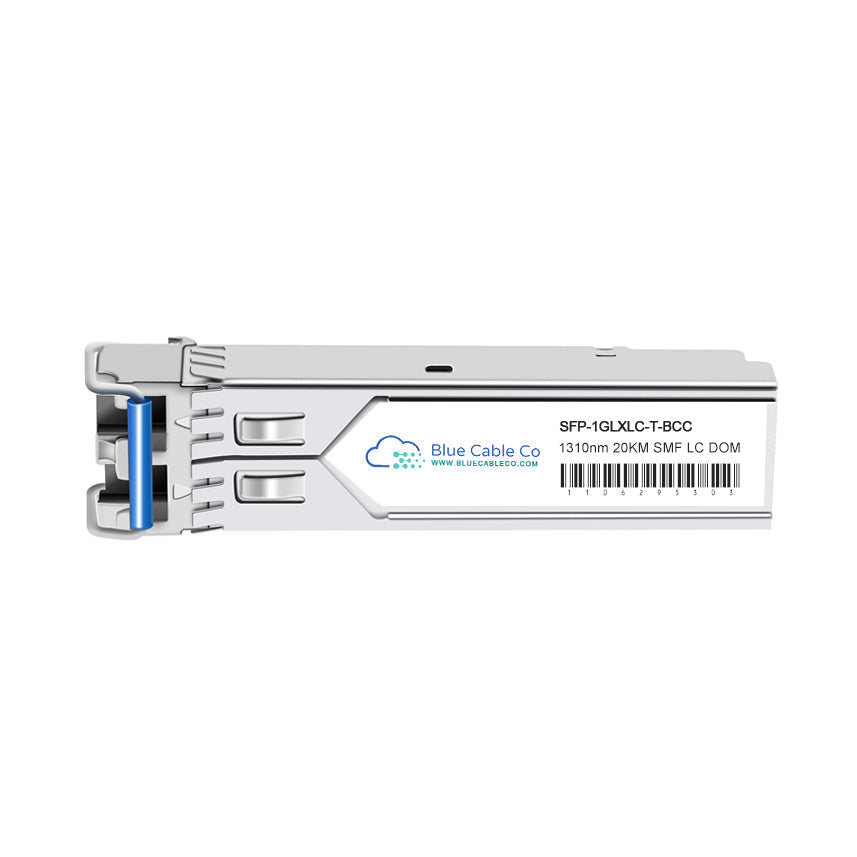

• Moxa Compatible SFP-1GLXLC-T-BCC 1GB Single-Mode 10km Transceiver
1 1

Blue Cable Co

SFP-1GLXLC-T-BCC | Moxa Compatible 1GB Single-Mode 10km (1000BASE-LX) Rugged / Industrial

SFP-1GLXLC-T-BCC

91 in stock

$55.99 inc. GST
$50.90 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-1GLXLC-T-BCC is a drop-in compatible replacement for the Moxa SFP-1GLXLC-T. This industrial-grade transceiver operates across an extended temperature range of -40 to 85°C and supports plug-and-play installation in Moxa industrial Ethernet switches and networking equipment. - IEEE 802.3z compliance guarantees interoperability with 1000BASE-LX Gigabit Ethernet infrastructure - SFP form factor with LC duplex connector, 1.25 Gbps data rate, 1310nm wavelength, 10km reach over single-mode fibre - Digital Diagnostic Monitoring (DDM) function provides real-time access to optical power, temperature, and voltage parameters - Hot-pluggable design allows installation and removal without powering down the host equipment - Hardened components engineered for industrial environments including factory automation, transportation, surveillance, and outdoor installations - Differential LVPECL inputs and outputs with TTL signal detect indicator for reliable physical layer signalling

Features

• IEEE 802.3z and SFP MSA compliance ensure this module operates identically to OEM transceivers in any standards-compliant Gigabit SFP slot, eliminating vendor lock-in for industrial switch deployments
• Extended industrial temperature rating (-40 to 85°C) achieved through hardened IC components and optical elements tested under high and low temperature cycling for outdoor cabinets, mining infrastructure, rail trackside installations, and factory floors
• SFF-8472 DDM implementation exposes real-time transmit/receive optical power, module temperature, supply voltage, and laser bias current via I2C interface for predictive maintenance and optical link diagnostics
• 1310nm Fabry-Perot laser transmitter paired with PIN photodiode receiver delivers 10km reach over G.652 single-mode fibre with 15 dB minimum optical budget, sufficient for building-to-building campus links or mid-haul industrial networks
• Hot-pluggable LC duplex connector with LVPECL differential signalling allows live insertion into operating switches without service interruption, critical for high-availability industrial control networks
• Low power consumption (typically under 1W) reduces thermal load in densely populated switch chassis and enables passive cooling in sealed industrial enclosures

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-1GLXLC-T-BCC
Compatible Replacement For: SFP-1GLXLC-T
Compatibility: Moxa compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 1.25 Gbps (Gigabit Ethernet)
Wavelength: 1310nm
Fibre Type: Single-mode (SMF)
Connector Type: LC duplex
DOM Support: Yes (Digital Diagnostic Monitoring)
Standards: IEEE 802.3z (1000BASE-LX), SFP MSA, SFF-8472
Max Reach: 10km (per datasheet, subject to fibre and link conditions)
Operating Temperature: -40 to 85°C
Laser Class: Class 1 (EN 60825-1 compliant)

FAQs

Q: Will this work in place of the Moxa SFP-1GLXLC-T?
A: Yes. This transceiver provides identical 1000BASE-LX functionality at 1.25 Gbps over single-mode fibre using the same SFP form factor, 1310nm wavelength, and LC connector. It is plug-and-play compatible with Moxa industrial Ethernet switches and operates across the same -40 to 85°C industrial temperature range.

Q: Which Moxa switch families support this transceiver?
A: This module works in any Moxa switch with Gigabit SFP slots that list the SFP-1GLXLC-T as compatible, including the ICS-G7000 Series, ICS-G7500 Series, ICS-G7800 Series, IKS-G6500 Series, IKS-G6800 Series, EDS-G500 Series, EDS-500A Series, EDS-P510A Series, PT-G7509 Series, and EDR-G900 Series. If your switch datasheet specifies SFP-1G Series module support, this transceiver is compatible.

Q: What single-mode fibre types and patch cables does this require for 10km reach?
A: This transceiver is designed for G.652 standard single-mode fibre (9/125 micron core/cladding). Use LC duplex single-mode patch cables with one fibre for transmit (1310nm) and one for receive (1310nm). The 10km reach specification assumes clean connectors, quality fibre with typical 0.35 dB/km attenuation at 1310nm, and a 15 dB link budget. It can also operate over multimode fibre up to 550m when used with a mode conditioning patch cable.

Q: How do I access the DDM diagnostic data from this transceiver?
A: The SFF-8472 DDM function exposes diagnostic parameters via the two-wire I2C serial interface on the SFP connector. Most managed Moxa switches provide DDM readouts through their web interface, CLI, or SNMP MIBs, displaying real-time transmit power, receive power, module temperature, supply voltage, and laser bias current. This allows you to monitor optical link health and detect degrading fibre or connector issues before failure.

Q: Can this transceiver operate in outdoor enclosures or unsealed industrial cabinets?
A: Yes. The -40 to 85°C operating temperature range covers outdoor installations in most climates, from cold-weather rail signalling to desert solar farms. The hardened IC and optical components are tested across this full temperature range. However, the host switch enclosure must provide appropriate environmental protection (NEMA or IP rating) for humidity, dust, and vibration, as the transceiver itself is not individually sealed.
