• Cisco Compatible SFP-10G-ZR-I-BCC 10G ZR Transceiver Module
1 1

Blue Cable Co

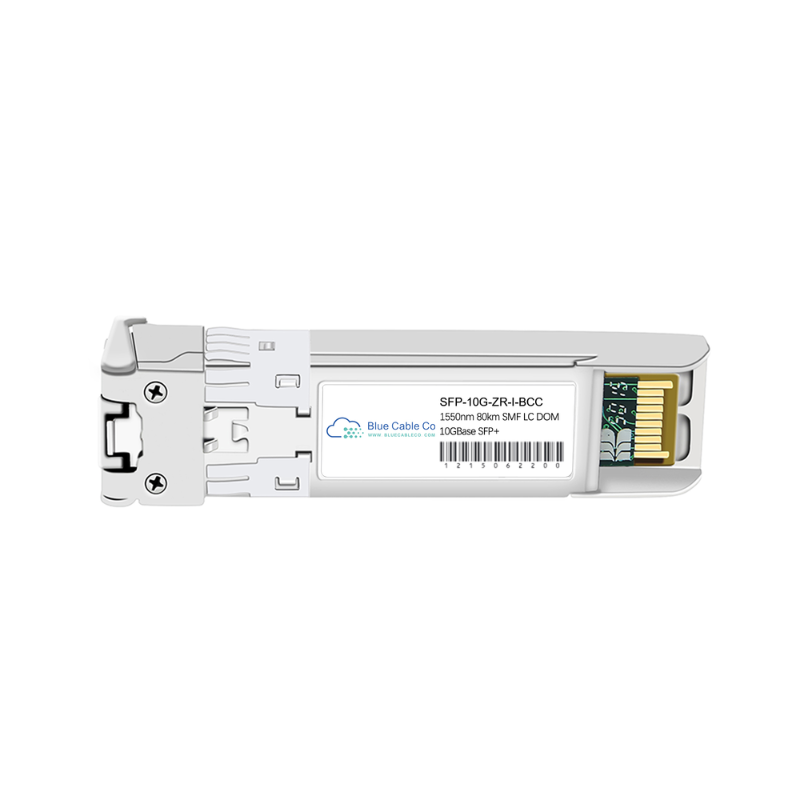

SFP-10G-ZR-I-BCC | Cisco Compatible 10GB Single-Mode ZR - 70km (10GBASE-ZR) Rugged / Industrial

SFP-10G-ZR-I-BCC

5 in stock

$1,149.50 inc. GST
$1,045.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-10G-ZR-I-BCC is a drop-in compatible replacement for the Cisco SFP-10G-ZR-I. This industrial-grade SFP+ transceiver plugs into any SFP+ port and operates from -28°C to 85°C, with cold-start capability down to -40°C for harsh outdoor and industrial environments. - Multirate operation supports 10GBASE-ZR, 10GBASE-ZW, and OTU2/OTU2e protocols for deployment flexibility across Ethernet and optical transport applications - 70km reach over G.652 single-mode fibre at 1550nm wavelength, assuming 20 ps/(nm*km) chromatic dispersion, with maximum chromatic dispersion tolerance of 1400 ps/nm - Industrial temperature range with full optical traffic operation from -28°C to 85°C, plus low-speed DOM and I2C functions available during cold-start from -40°C to -28°C - Digital Optical Monitoring provides real-time access to transmit power, receive power, temperature, laser bias current, and supply voltage per SFF-8472 MSA - Limiting electrical interface receiver eliminates the need for EDC PHY on the host board, simplifying integration into industrial switches and routers - LC/PC duplex connector, hot-pluggable SFP+ form factor, compliant with SFF-8431 and SFF-8472 standards

Features

• Multirate capability supporting 10GBASE-ZR, 10GBASE-ZW, and OTU2/OTU2e allows a single transceiver to serve Ethernet and optical transport network applications without separate inventories
• Limiting electrical interface receiver architecture eliminates dependence on host-side EDC PHY, enabling deployment in any SFP+ port and reducing platform integration constraints in industrial equipment
• Industrial temperature hardening maintains full 70km optical transmission from -28°C to 85°C, with cold-start logic and DOM monitoring operational down to -40°C for outdoor cabinet and utility substation deployments
• 1550nm C-band wavelength and 1400 ps/nm chromatic dispersion tolerance suit long-haul and metro transport over standard G.652 fibre without dispersion compensation
• Attenuator requirements for links under 40km protect the APD receiver from overload, a critical consideration for flexible deployment across varied distances in industrial networks
• Hot-swap capability and MSA-standard footprint ensure field replacement without system shutdown, minimizing downtime in mission-critical industrial automation and SCADA networks
• SFF-8472 DDM implementation exposes transmit power, receive power, temperature, bias current, and voltage via I2C for integration with network monitoring systems and predictive maintenance platforms

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Also Known As

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-10G-ZR-I-BCC
Compatible Replacement For: SFP-10G-ZR-I
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10.3125 Gbps
Protocols: 10GBASE-ZR, 10GBASE-ZW, OTU2/OTU2e (multirate)
Wavelength: 1550nm
Fibre Type: Single-Mode (SMF, G.652)
Max Reach: Up to 70km (assuming 20 ps/(nm*km) chromatic dispersion, per datasheet)
Connector Type: Duplex LC/PC
Chromatic Dispersion Tolerance: 1400 ps/nm maximum
DOM Support: Yes (SFF-8472 MSA compliant)
Operating Temperature: -28°C to 85°C (full operation), -40°C to -28°C (cold-start, DOM and I2C only)
Standards: IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472
Power Consumption: <1.5W typical
Receiver Type: Limiting electrical interface (no EDC PHY required)

Also Known As

SFP-10G-ZR-I=

FAQs

Q: Will this work in place of the Cisco SFP-10G-ZR-I?
A: Yes. The SFP-10G-ZR-I-BCC is a direct plug-and-play replacement for the Cisco SFP-10G-ZR-I. It supports the same multirate protocols (10GBASE-ZR, 10GBASE-ZW, OTU2/OTU2e), 70km reach at 1550nm, and -40°C to 85°C industrial temperature range. The limiting electrical interface receiver is compatible with any SFP+ port without requiring an EDC PHY on the host board.

Q: Which Cisco platforms support this industrial-temperature transceiver?
A: This transceiver works in any Cisco platform with an SFP+ port that supports industrial-temperature optics. Common applications include industrial Ethernet switches, ruggedized routers for utilities and transportation, and outdoor network equipment. Verify compatibility for your specific model via the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix, as not all platforms support the full industrial temperature range.

Q: What fibre attenuation is required for links shorter than 70km?
A: For links under 40km, you must install an inline optical attenuator to prevent receiver overload and damage. Cisco specifies a 5dB attenuator for links under 20km. At very short distances (under 5km), higher attenuation may be required. The receiver has an overload threshold of approximately -7dBm, while the transmitter outputs 0 to +4dBm, creating a significant power budget that requires management on short spans.

Q: How does the cold-start temperature behaviour affect deployment?
A: From -40°C to -28°C, the transceiver powers on and provides access to DOM parameters and I2C communication, but does not support optical traffic. Full 10G transmission becomes available once the module reaches -28°C. This cold-start design protects the laser and receiver during extreme cold while allowing environmental monitoring and remote diagnostics before the link becomes operational, which is useful for outdoor cabinets in Arctic or high-altitude installations.

Q: What is the significance of the limiting electrical interface receiver?
A: The limiting electrical interface means this transceiver performs clock and data recovery internally and outputs a clean retimed signal to the host. It does not require an electronic dispersion compensation (EDC) PHY on the host board, unlike some long-reach optics. This simplifies integration into industrial switches and routers that may lack advanced SerDes equalization, and ensures compatibility across a wider range of SFP+ host platforms without platform-specific signal conditioning.
